Запчасти Case 6030 (08-21) - VALVE, MANIFOLD SYSTEM CONTROL (08) - HYDRAULICS

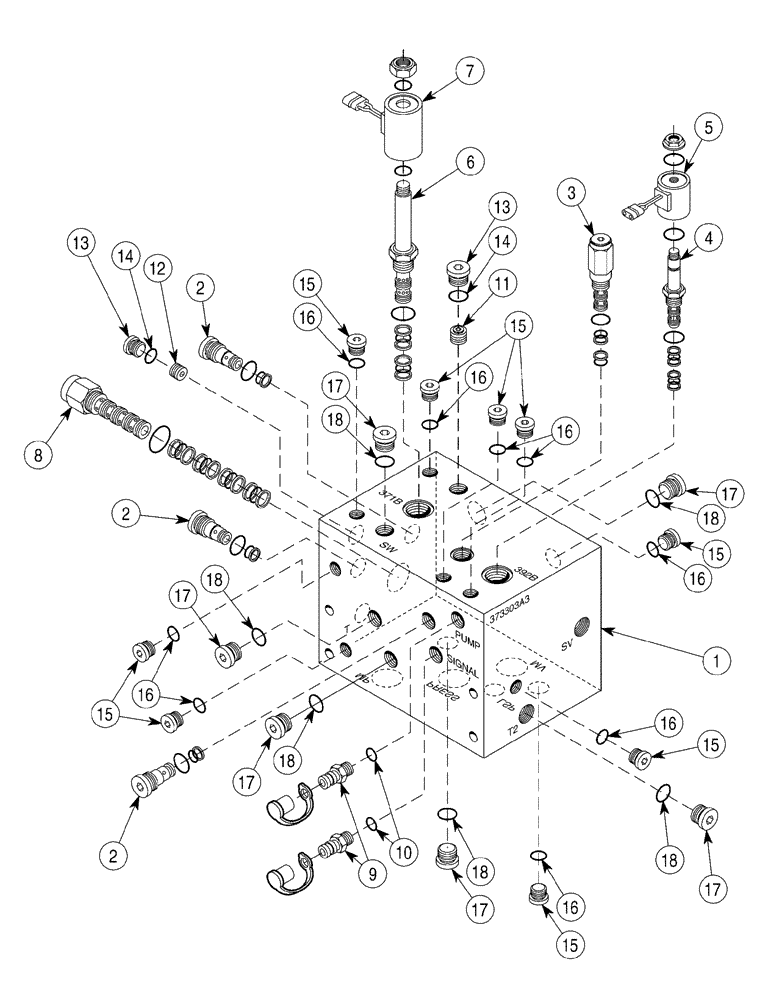

Схема запчастей Case 6030 - (08-21) - VALVE, MANIFOLD SYSTEM CONTROL (08) - HYDRAULICS
18
13
14
15
12
8
17
18
11
5
16
18
18
15
16
14
6
2
15
16
16
2
16
17
3
15
18
2
17
16
18
17
17
10
15
13
1
17
9
16
4
7
15

Артикул

Название

Примечание

Количество

373303A3

MANIFOLD VALVE

System Control, Includes 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

336791A1

VALVE

Includes 336792A1

3шт.

336792A1

SET OF PARTS

Component Parts Not Serviced Separately

1шт.

3

381066A1

CARTRIDGE

Includes 1542831C1

1шт.

1542831C1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

4

381048A1

CARTRIDGE

Includes 329483A1

1шт.

329483A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

5

388730A1

COIL

1шт.

6

381049A1

CARTRIDGE

Proportional, Includes 381050A1

1шт.

381050A1

KIT

Component Parts Not Serviced Separately

1шт.

7

381051A1

COIL

1шт.

8

381041A1

CARTRIDGE

Pilot, 3-Way, Includes 381043A1

1шт.

381043A1

KIT

Component Parts Not Serviced Separately

1шт.

9

R55912

NIPPLE

Includes 10

2шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

388732A1

PLUG

Orifice

1шт.

12

388736A1

PLUG

Orifice

1шт.

13

278548

PLUG,Hex, 7/16"-20 ORB

Incl 14

2шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

86632547

PLUG,Hex, 5/16"-24 ORB

Includes 16

9шт.

16

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

17

9625178

PLUG,9/16" - 18 ORB

Incl. 18

6шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 24
