Запчасти Case 6030 (08-20) - VALVE, CONTROL, REAR (08) - HYDRAULICS

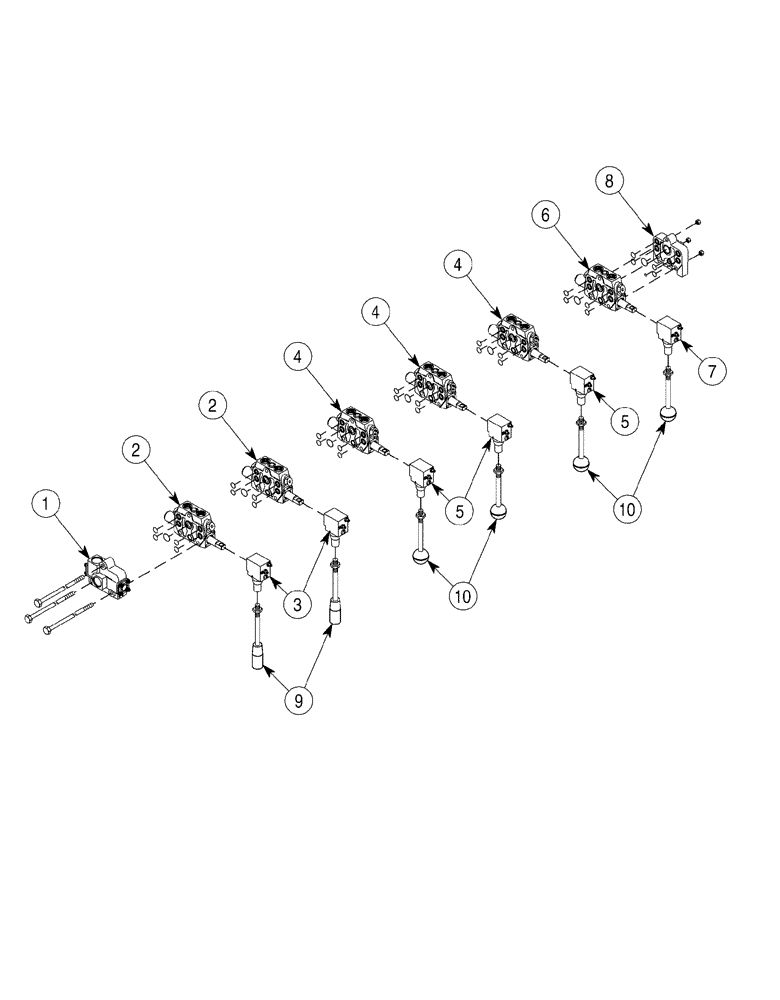

Схема запчастей Case 6030 - (08-20) - VALVE, CONTROL, REAR (08) - HYDRAULICS
1
2
6
5
10
4
9
4
7
2
5
10
4
3
8

Артикул

Название

Примечание

Количество

373492A2

VALVE

Rear Control, Includes 1 - 10

1шт.

394966A1

KIT

Components Parts Not Serviced Separately

1шт.

1

394959A1

HYD VALVE SECTION

Inlet, Component Parts Not Available at Time of Printing

1шт.

2

394960A1

HYD VALVE SECTION

Track Drive, Component Parts Not Available at Time of Printing, Includes 3

2шт.

3

394965A1

VALVE

Lever, Component Parts Not Available at Time of Printing

1шт.

4

394961A1

HYD VALVE SECTION

Boom Tilt and Stabilizers, Component Parts Not Available at Time of Printing, Includes 5

3шт.

5

394965A1

VALVE

Lever, Component Parts Not Available at Time of Printing

1шт.

6

394962A1

HYD VALVE SECTION

Auxiliary, Component Parts Not Available at Time of Printing, Includes 7

1шт.

7

394965A1

VALVE

Lever, Component Parts Not Available at Time of Printing

1шт.

8

394963A1

HYD VALVE SECTION

Outlet, Component Parts Not Available at Time of Printing

1шт.

9

394967A1

HANDLE

Track Drive

2шт.

10

394968A1

HANDLE

Auxiliary Functions

4шт.

Выбрано товаров: 12
