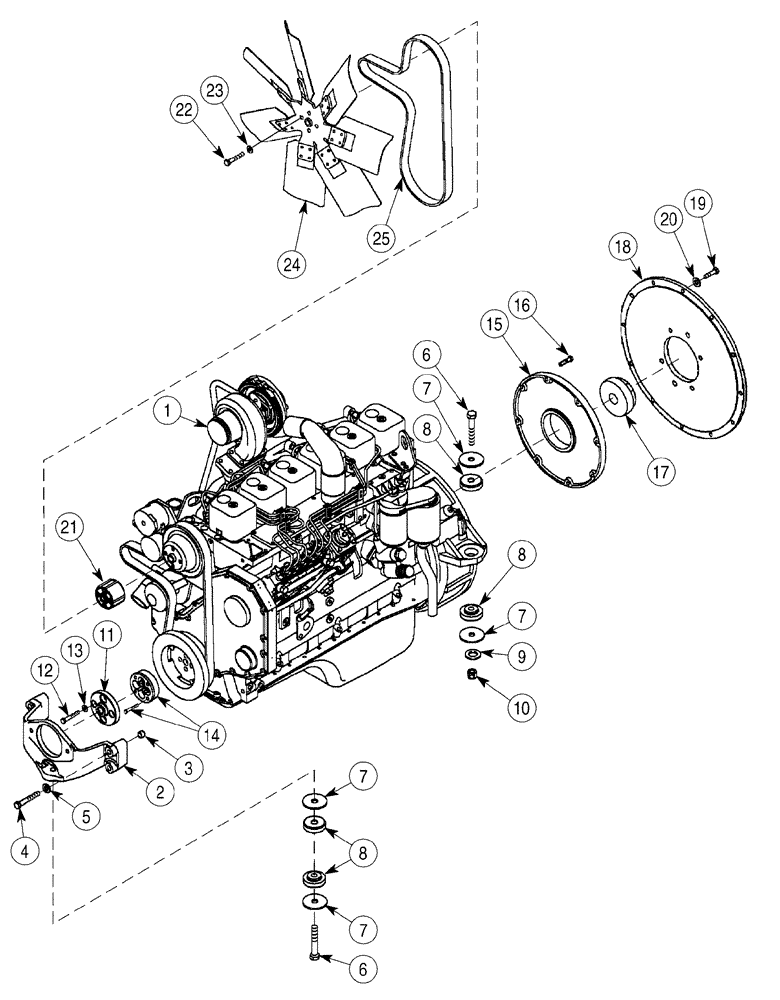

Запчасти Case 6030 (02-01) - ENGINE MOUNTING (02) - ENGINE

1

341024A1

Model 6T-590, See Page(s) 2-17 - 2-71, 3-7 - 3-19

1шт.

2

A170580

SUPPORT

1шт.

3

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

2шт.

4

A171690

BOLT

4шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

6

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

3шт.

7

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

6шт.

8

R49921

RUBBER MOUNTING

6шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

Hardened

2шт.

10

231-14410

NUT,5/8"-11, GB

2шт.

11

357701A1

FLEXIBLE COUPLING

1шт.

12

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

4шт.

13

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

14

REF

INSTRUCTION

Flange, Crankshaft Pulley, See Page(s) 2-51

1шт.

15

358989A1

FLYWHEEL

Flywheel

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

17

358988A1

GEAR

Pump

1шт.

18

360643A1

PLATE

1шт.

19

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

21

D142327

SPACER

1шт.

22

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

24

187094A1

FAN

1шт.

25

J911559

V-BELT,27.92mm W x 1574.8mm L, 8 Ribs

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

12шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
