Запчасти Case 6030 (08-18) - VALVE, PILOT PUMP, AUXILIARY SYSTEM (08) - HYDRAULICS

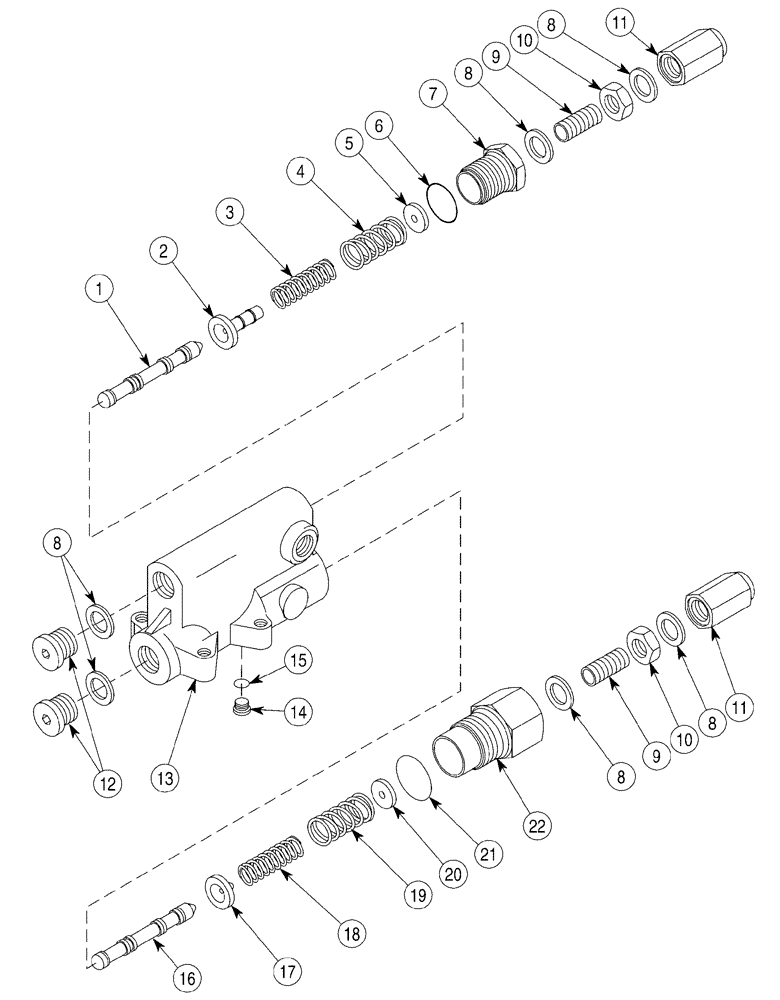

Схема запчастей Case 6030 - (08-18) - VALVE, PILOT PUMP, AUXILIARY SYSTEM (08) - HYDRAULICS
10
22
9
15
11
1
7
8
18
6
8
19
10
4
14
13
9
12
21
11
3
2
16
5
8
8
8
17
20

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

Valve, Pilot, Order 370560A1, See Page(s) 8-87, Consists Of 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

Spool, Flow Compensating

1шт.

2

NSS

NOT SOLD SEPARAT

Seat, Spring, Inner

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Small

1шт.

4

NSS

NOT SOLD SEPARAT

Spring, Large

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring, Outer

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

8

NSS

NOT SOLD SEPARAT

Ring

6шт.

9

370612A1

SCREW,M8 x 1

Adjusting

2шт.

429042A1

SEAL KIT

Includes 6, 8, For Additional Parts, See Page(s) 8-87, 8-95

1шт.

10

370609A1

JAM NUT

Jam

2шт.

11

370607A1

NUT

Acorn

2шт.

12

370613A1

PLUG

2шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Plug

1шт.

15

NSS

NOT SOLD SEPARAT

1шт.

16

NSS

NOT SOLD SEPARAT

Spool, Pressure Compensating

1шт.

17

NSS

NOT SOLD SEPARAT

Seat, Spring, Inner

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Small

1шт.

19

NSS

NOT SOLD SEPARAT

Spring, Large

1шт.

20

NSS

NOT SOLD SEPARAT

Seat, Spring, Outer

1шт.

21

NSS

NOT SOLD SEPARAT

1шт.

22

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

429042A1

SEAL KIT

Includes 15, 21, For Additional Parts, See Page(s) 8-87, 8-93

1шт.

Выбрано товаров: 25
