Запчасти Case 6030 (08-17) - PUMP ASSY HYDRAULIC, AUXILIARY SYSTEM (08) - HYDRAULICS

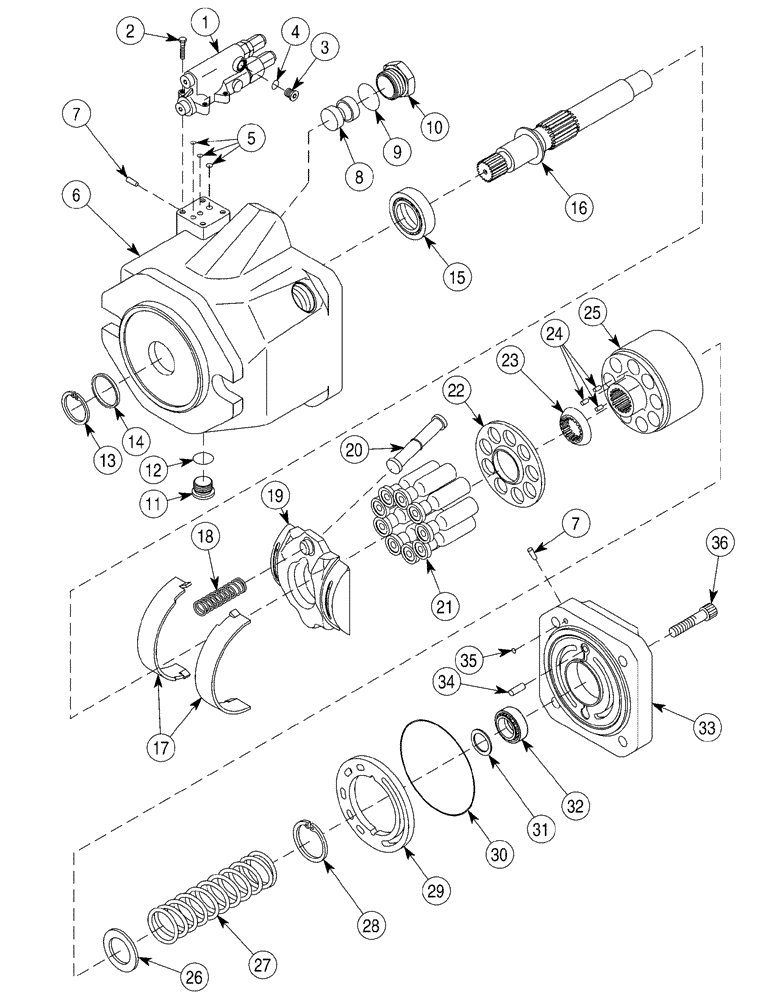

Схема запчастей Case 6030 - (08-17) - PUMP ASSY HYDRAULIC, AUXILIARY SYSTEM (08) - HYDRAULICS
13
5
1
7
2
31
26
36
24
16
9
6
28
34
15
7
35
21
27
3
14
29
32
11
22
23
19
30
8
10
25
33
18
17
4
20
12

Артикул

Название

Примечание

Количество

336408A3

PUMP

Complete, Consists Of 1 - 36

1шт.

370560A1

CONTROL

Complete, Consists Of 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Valve, Pilot, Order 370560A1, See Page(s) 8-93, 8-95

1шт.

2

370614A1

SCREW,M6 x 30mm, Cl 10.9

Hex Socket

4шт.

3

9672438

PLUG,7/16" - 20 ORB

Incl. 4

1шт.

4

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

NSS

NOT SOLD SEPARAT

Pump, Hydraulic, Order 336408A3, Consists Of 6 - 36

1шт.

6

370553A1

HOUSING

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Break-Off, Provides 2 Plugs

1шт.

429042A1

SEAL KIT

Includes 4, 5, For Additional Parts, See Page(s) 8-93, 8-95

1шт.

8

370572A1

PISTON

Control

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

370573A1

PLUG

1шт.

11

214389

PLUG,3/4" - 16 ORB

Includes Ref. 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

800-2135

SNAP RING,M35, Int

Internal

1шт.

14

370567A1

SEAL

1шт.

15

370575A1

TAPERED BEARING

1шт.

16

370574A1

SHAFT

1шт.

17

370576A1

BEARING HALF

2шт.

18

370582A1

SPRING

1шт.

19

370577A1

PLATE

1шт.

20

370569A1

ROD

1шт.

370557A1

KIT

Consists Of 21 - 29

1шт.

21

370584A1

PISTON

9шт.

22

370589A1

PLATE

Retaining

1шт.

370583A1

KIT

Includes 9, 12, 14, For Additional Parts, See Page(s) 8-91

1шт.

370557A1

KIT

Continued From Previous Page, Consists Of 21 - 29

1шт.

23

370592A1

BALL

Retaining

1шт.

24

370602A1

PIN

Pressure

3шт.

25

370586A1

BLOCK

1шт.

26

370605A1

CLIP

1шт.

27

370594A1

SPRING

1шт.

28

370603A1

RING, SNAP

RING SNAP

1шт.

29

370587A1

PLATE

1шт.

30

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

31

370578A1

SHIM

1шт.

32

370579A1

TAPERED BEARING

1шт.

33

370581A1

SUPPORT

1шт.

34

370580A1

PIN

1шт.

35

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

36

962-10040

HEX SOC SCREW,M10 x 40mm, Cl 10.9

4шт.

370583A1

KIT

Includes 30, 35, For Additional Parts, See Page(s) 8-89

1шт.

Выбрано товаров: 44
