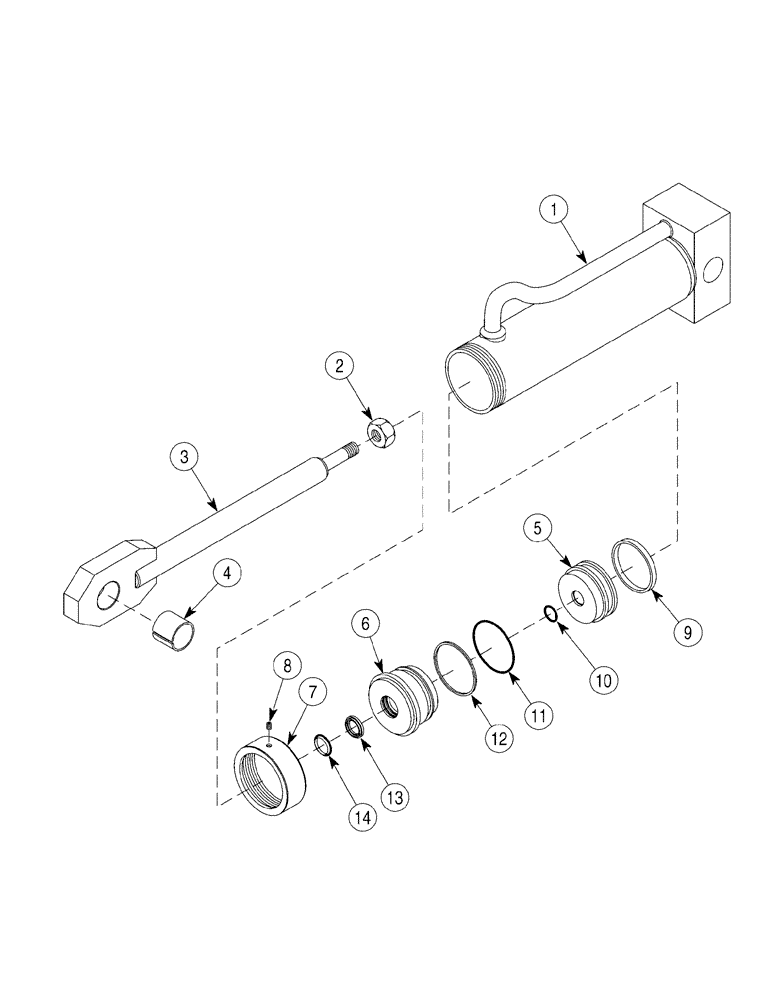

Запчасти Case 6030 (08-15) - CYLINDER ASSY STABILIZERS (08) - HYDRAULICS

335699A1

CYLINDER

51 ID x 381 mm strk, Rear Stabilizer, Consists Of 1 - 14, For Mounting, See Page(s) 9-45

2шт.

1

368014A1

TUBE,28.5" Length

1шт.

2

230-46112

LOCK NUT,3/4"-16, GA

3/4 NF

1шт.

3

368015A1

ROD ASSY.

1шт.

4

NSS

NOT SOLD SEPARAT

Bushing

1шт.

5

368013A1

PISTON

1шт.

6

368017A1

HEAD

1шт.

7

368016A1

CAP

1шт.

8

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1шт.

368012A1

SEAL KIT

Seal, Consists Of 9 - 14

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

13

NSS

NOT SOLD SEPARAT

Seal, U-Cup

1шт.

14

NSS

NOT SOLD SEPARAT

Seal, Wiper

1шт.
