(08-13) - CYLINDER ASSY POWER WRENCH ROTATE

Запчасти Case 6030 (08-13) - CYLINDER ASSY POWER WRENCH ROTATE (08) - HYDRAULICS

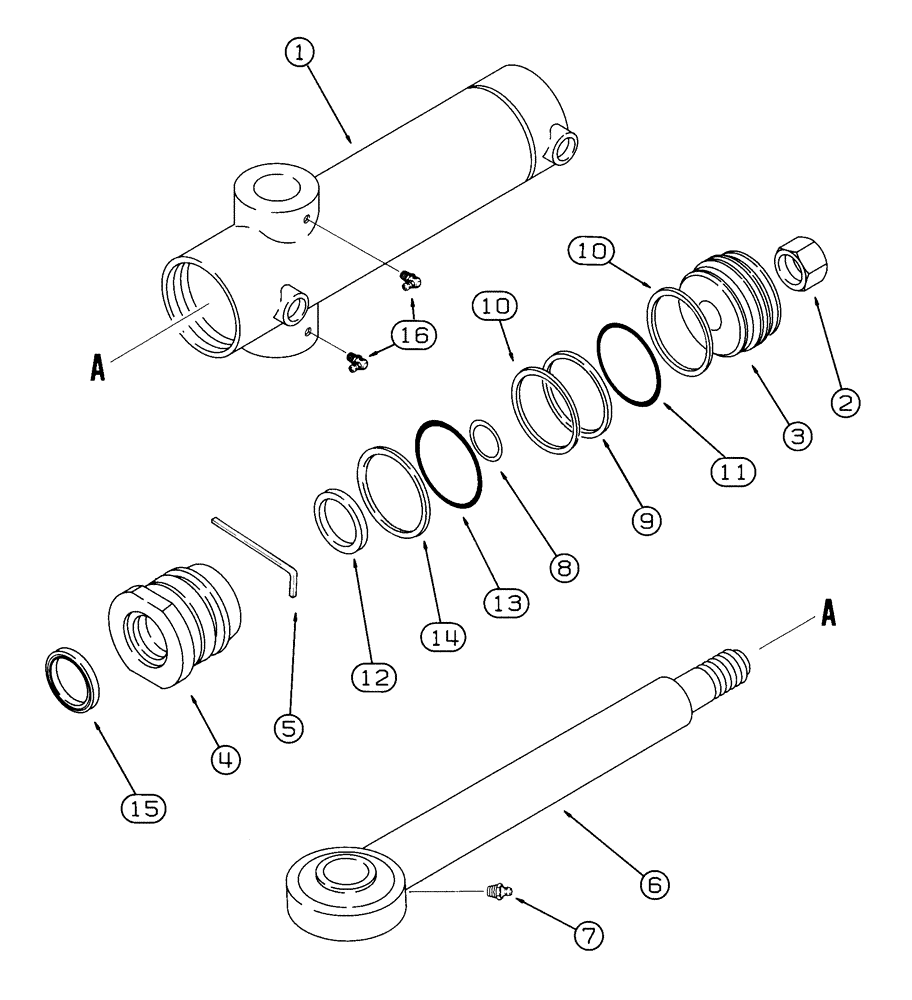

Схема запчастей Case 6030 - (08-13) - CYLINDER ASSY POWER WRENCH ROTATE (08) - HYDRAULICS
5
7
6
16
13
3
4
14
9
1
12
2
11
15
10
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

135825A1

CYLINDER,Double Acting, 25.4mm Rod, 142.7mm Stroke

51 ID x 143 mm strk, Power Wrench Rotate, Consists Of 1 - 16, For Mounting, See Page(s) 9-31

1шт.

1

140226A1

TUBE

1шт.

2

231-41310

LOCK NUT,5/8"-11, GB

1шт.

3

110501A1

JACK PISTON

1шт.

4

108641C1

GLAND

1шт.

5

461180R1

RETAINER

169 mm (6-1/4 in)

1шт.

6

140227A1

ROD

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

Special

1шт.

110510A1

SEAL KIT

Consists Of 5, 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

14

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

1шт.

15

532773R1

WIPER SEAL

1шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

2шт.
