(08-11) - CYLINDER ASSY DRILL PIPE LIFTER

Запчасти Case 6030 (08-11) - CYLINDER ASSY DRILL PIPE LIFTER (08) - HYDRAULICS

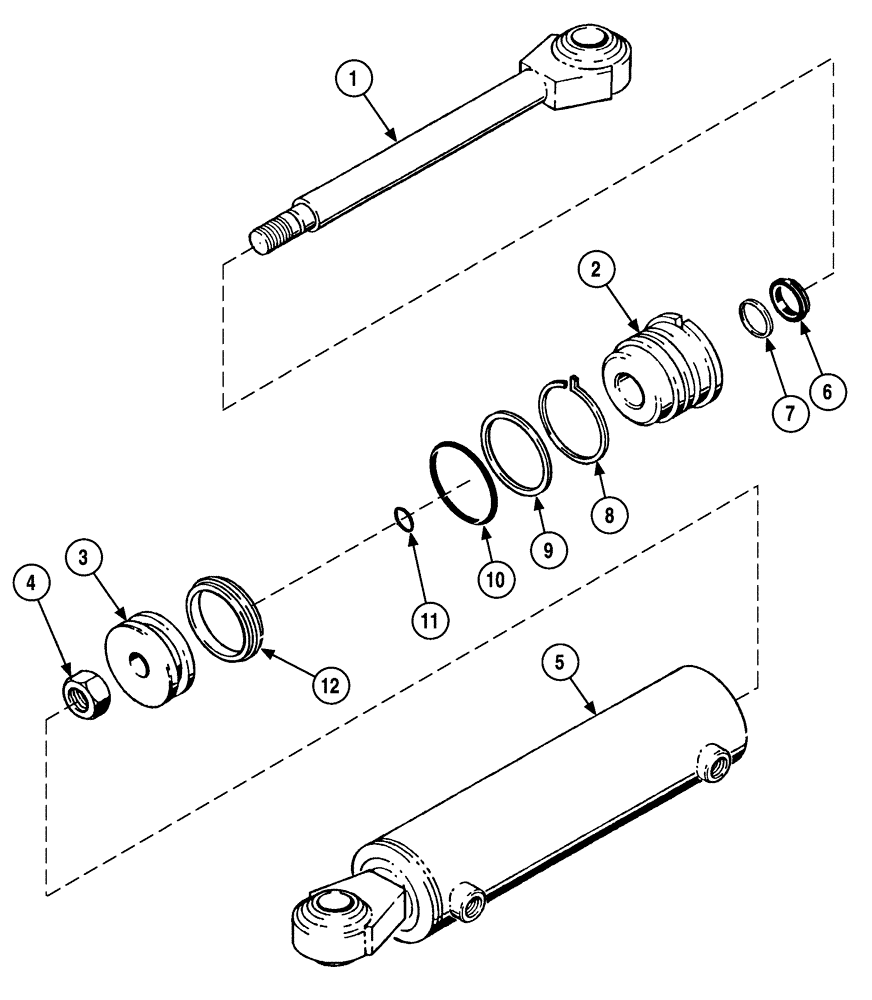

Схема запчастей Case 6030 - (08-11) - CYLINDER ASSY DRILL PIPE LIFTER (08) - HYDRAULICS
4
9
12
2
11
5
7
1
8
6
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674930

STEERING CYLINDER

51 ID x 127 mm strk, Drill Pipe Lifter, Consists Of 1 - 12, For Mounting, See Page(s) 9-7

1шт.

1

H636852

PISTON ROD

25 mm (1 in) dia

1шт.

2

H347765

GLAND

1шт.

3

H347757

PISTON

1шт.

4

230-46112

LOCK NUT,3/4"-16, GA

3/4 NF

1шт.

5

H636845

CYLINDER

1шт.

H674942

GASKET KIT

Seal, Consists Of 6 - 12

1шт.

6

H755793

RETAINER

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

H207027

LOCK ASSY

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

10

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

11

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.
