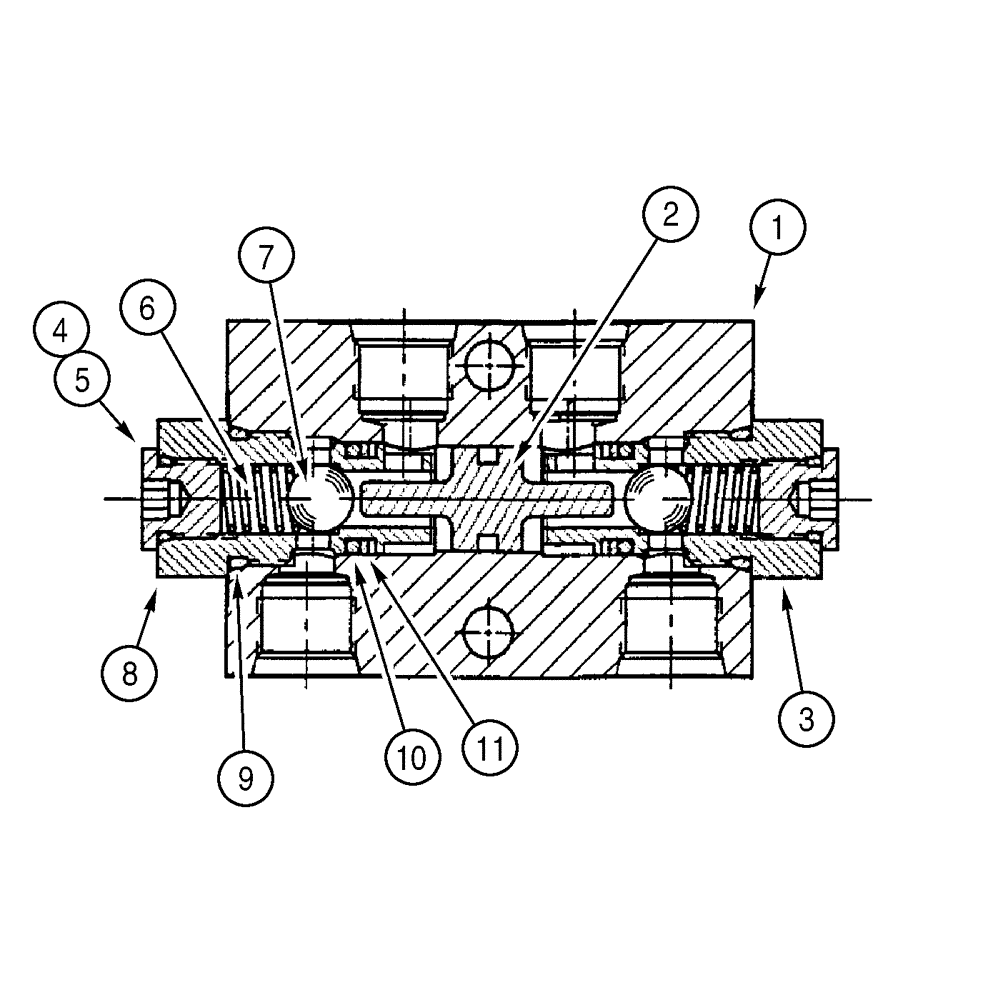

Запчасти Case 6030 (08-10) - VALVE, LOCK (08) - HYDRAULICS

348998A1

VALVE

Cylinder Lock Valve, Consists Of 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

370711A1

PISTON

1шт.

3

370712A1

VALVE

Valve, Consists Of 4 - 11

2шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. 5

1шт.

6

370713A1

SPRING

1шт.

7

211-1012

BALL,3/8" Dia

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Cartridge

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

11

370714A1

BACK-UP RING

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
