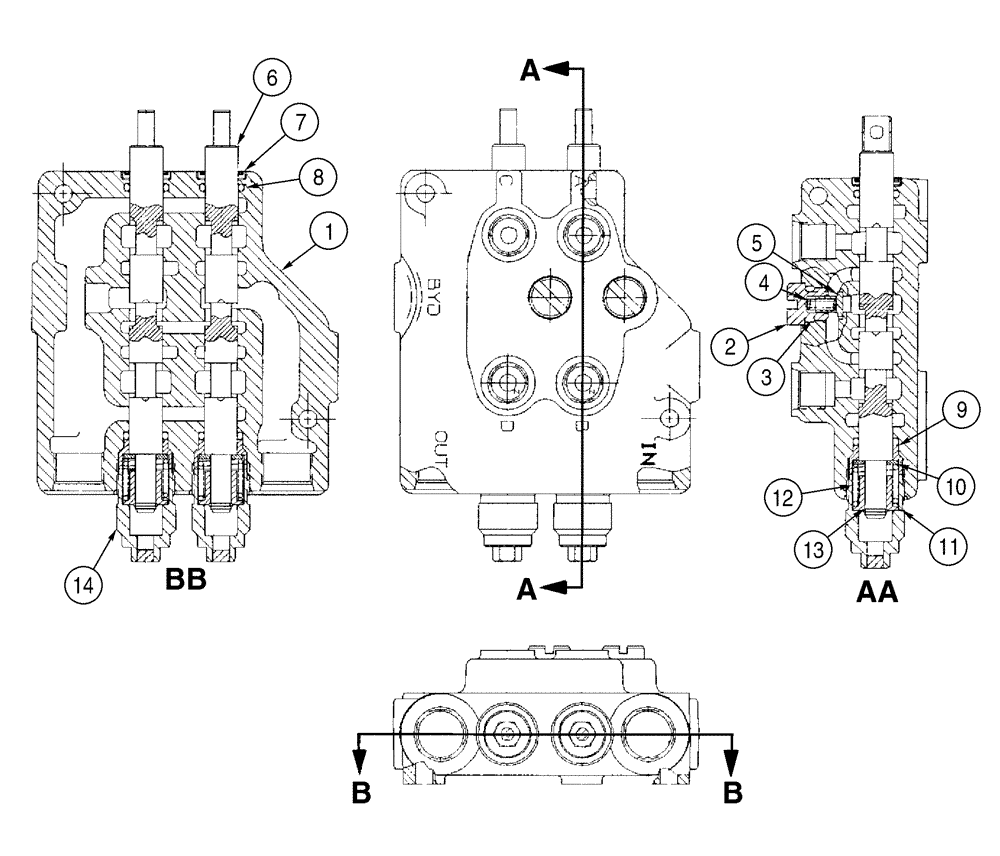

Запчасти Case 6030 (08-09) - VALVE, CONTROL STAKEDOWN CONTROL (08) - HYDRAULICS

352533A1

VALVE

Stakedown Control Valve, Consists Of 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Body

2шт.

H229203

PLUG

Consists Of 2, 3

2шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

4

673625R1

SPRING

Plunger

2шт.

5

F36081

VALVE POPPET

2шт.

6

NSS

NOT SOLD SEPARAT

Spool

2шт.

7

H435703

SEAL

Wiper

2шт.

8

H438995

O-RING

4шт.

9

674775R1

BUSHING

2шт.

10

N9256

WASHER

2шт.

11

N9252

SPACER

2шт.

12

N9254

SPRING

2шт.

13

N9257

RING, SNAP

RING SNAP

2шт.

14

N9253

CAP

2шт.

15

365230A1

KIT

Handle, Not Illustrated

2шт.
