(08-08) - VALVE, CONTROL POWER WRENCH

Запчасти Case 6030 (08-08) - VALVE, CONTROL POWER WRENCH (08) - HYDRAULICS

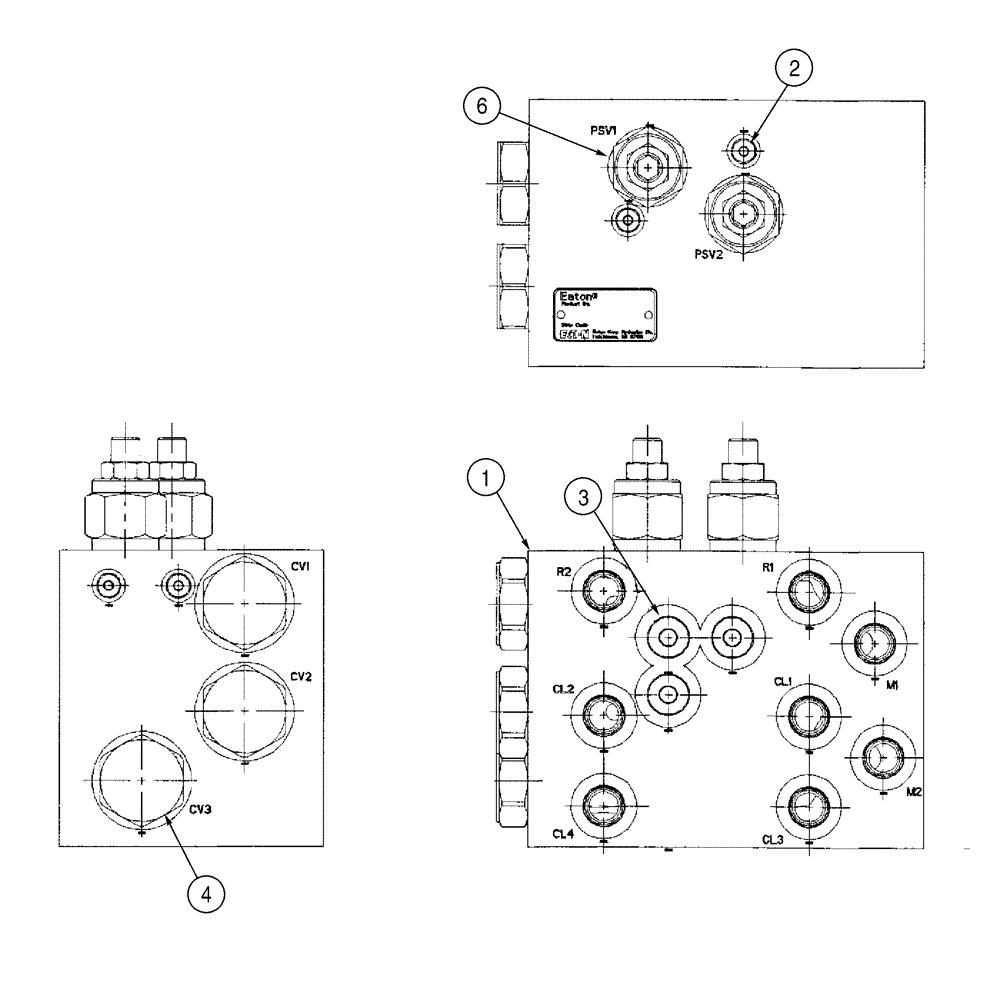

Схема запчастей Case 6030 - (08-08) - VALVE, CONTROL POWER WRENCH (08) - HYDRAULICS
2
1
4
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

336412A2

MANIFOLD

Power Wrench, Consists Of 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

365251A1

FITTING

4шт.

3

365231A1

FITTING

3шт.

4

365252A1

VALVE

Includes 5

3шт.

5

365254A1

SEAL KIT

Seal, Not Illustrated

1шт.

6

365253A1

VALVE

Includes 7

2шт.

7

365255A1

SEAL KIT

Seal, Not Illustrated

1шт.

8

365256A1

SEAL KIT

Seal, Not Illustrated

1шт.
