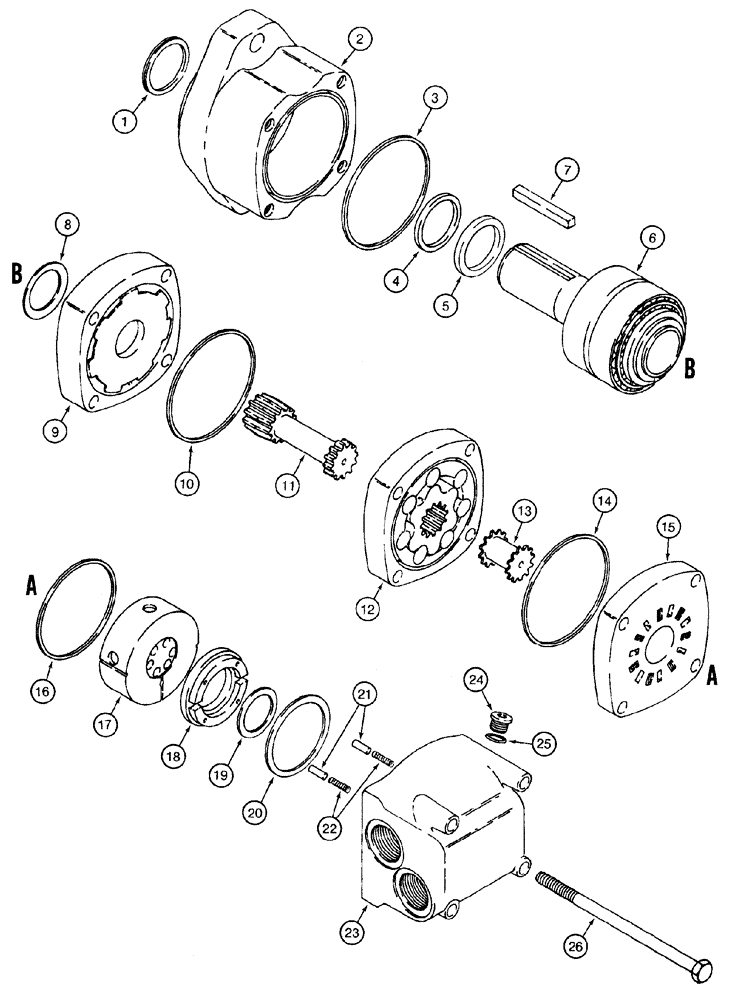

Запчасти Case 6030 (08-06) - MOTOR ASSY DRILL PIPE LOADER (08) - HYDRAULICS

338977A1

HYDRAULIC MOTOR

Drill Pipe Loader, Consists Of 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

Seal

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup, Shaft Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

6

365380A1

SHAFT

Motor, Component Parts Not Serviced Separately

1шт.

7

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

8

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

1шт.

9

189092A1

LARGE PLATE

PLATE, LARGE

1шт.

10

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

11

365381A1

DRIVE

1шт.

12

365383A1

GEROTOR

1шт.

13

S114496

COUPLING

1шт.

14

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

15

189096A1

PLATE

1шт.

S300417

SEAL KIT

Consists Of 1, 3, 4, 5, 8, 10 , 14, 16, 19, 20

1шт.

338977A1

HYDRAULIC MOTOR

Continued From Previous Page

1шт.

16

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

17

S300407

VALVE

1шт.

18

N9532

PLATE

1шт.

19

NSS

NOT SOLD SEPARAT

Seal, Inner

1шт.

20

NSS

NOT SOLD SEPARAT

Seal, Outer

1шт.

21

S114372

PIN

2шт.

22

S114366

SPRING

2шт.

23

NSS

NOT SOLD SEPARAT

Housing, Port End, Order 338977A1

1шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

Incl 25

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

365384A1

SCREW

Special

4шт.

S300417

SEAL KIT

Consists Of 1, 3, 4, 5, 8, 10 , 14, 16, 19, 20

1шт.

10412211

MOTOR, HYDRAULIC

Stakedown Control, Consists Of 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

Seal

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup, Shaft Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

6

189090A1

BEARING ASSY

Motor, Component Parts Not Serviced Separately

1шт.

7

189091A1

KEY

1шт.

8

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

1шт.

9

189092A1

LARGE PLATE

PLATE, LARGE

1шт.

10

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

11

365411A1

DRIVE

1шт.

12

365412A1

GEROTOR

1шт.

13

S114496

COUPLING

1шт.

14

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

15

189096A1

PLATE

1шт.

S300417

SEAL KIT

Consists Of 1, 3, 4, 5, 8, 10 , 14, 16, 19, 20

1шт.

10412211

MOTOR, HYDRAULIC

Continued From Previous Page

1шт.

16

NSS

NOT SOLD SEPARAT

76 mm ID, Seal

1шт.

17

S300407

VALVE

1шт.

18

N9532

PLATE

1шт.

19

NSS

NOT SOLD SEPARAT

Seal, Inner

1шт.

20

NSS

NOT SOLD SEPARAT

Seal, Outer

1шт.

21

S114372

PIN

2шт.

22

S114366

SPRING

2шт.

23

NSS

NOT SOLD SEPARAT

Housing, Port End, Order 338977A1

1шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

Incl 25

1шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

365413A1

SCREW

Special

4шт.

S300417

SEAL KIT

Consists Of 1, 3, 4, 5, 8, 10 , 14, 16, 19, 20

1шт.
