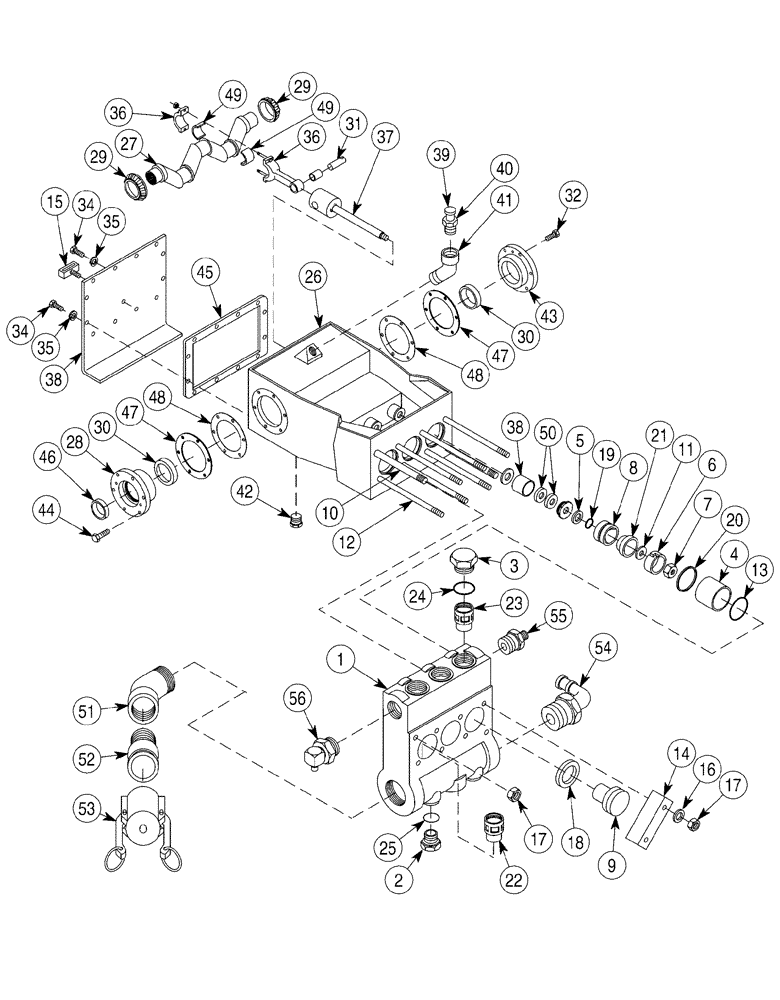

Запчасти Case 6030 (08-05) - PUMP ASSY DRILL FLUID (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
349531A1
PUMP
Drill Fluid, Onboard, Includes 1 - 50
1шт.
1
373013A1
CYLINDER
Fluid
1шт.
2
373014A1
PLUG
3шт.
3
373015A1
PLUG
3шт.
4
373016A1
CYLINDER
Ceramic
3шт.
5
373017A1
HOLDER
Seal
3шт.
6
373018A1
NUT
Piston
3шт.
7
373019A1
SPECIAL NUT
Special, Brass
3шт.
8
373020A1
HOLDER
Piston
3шт.
9
373021A1
COVER
Piston
3шт.
10
373029A1
STUD
2шт.
11
373022A1
WASHER
Piston
3шт.
12
373023A1
STUD
6шт.
13
373025A1
CYLINDER HEAD GASKET
Cylinder
3шт.
14
373026A1
CLAMP
Cylinder Cover
3шт.
15
373028A1
GAUGE
Liquid Level
1шт.
16
495-11066
WASHER,5/8", SAE
21/32 x 1-5/16 x 3/32
8шт.
17
425-1010
NUT,5/8"-11, G5
10шт.
349531A1
PUMP
Continued From Previous Page
1шт.
373122A1
KIT
Repair Kit, Includes 18 - 21
1шт.
18
NSS
NOT SOLD SEPARAT
2-5/8 ID x 3/32, O-Ring
3шт.
19
NSS
NOT SOLD SEPARAT
1/2 ID x 1/16, O-Ring
3шт.
20
NSS
NOT SOLD SEPARAT
Seal
3шт.
21
NSS
NOT SOLD SEPARAT
Packing Gland Assy
3шт.
373123A1
KIT
Repair Kit, Valve, Includes 18, 22 - 25
1шт.
22
NSS
NOT SOLD SEPARAT
Valve, Cushion, Inlet
3шт.
23
NSS
NOT SOLD SEPARAT
Valve, Cushion, Discharge
3шт.
24
NSS
NOT SOLD SEPARAT
O-Ring
3шт.
25
NSS
NOT SOLD SEPARAT
O-Ring
3шт.
373012A1
END ASSY.
Drill Fluid Pump, Consists Of 26 - 50
1шт.
26
373030A1
CASE
1шт.
27
373031A1
CRANKSHAFT
1шт.
28
373032A1
HOUSING
1шт.
29
A75211
ROLLER BEARING,1.9685" ID x 1.1024"
2шт.
30
A75210
BEARING CUP,3.5433" OD x 0.9055"
2шт.
31
373033A1
PIN
3шт.
32
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
6шт.
33
NSS
NOT SOLD SEPARAT
Foot, Rear
1шт.
34
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
12шт.
349531A1
PUMP
Continued From Previous Page
1шт.
373012A1
END ASSY.
Drill Fluid Pump, Consists Of 26 - 50
1шт.
35
492-11038
LOCK WASHER,3/8"
12шт.
36
373035A1
ROD
3шт.
37
373036A1
HEAD ASSY.
Cross
3шт.
38
373037A1
HOLDER
3шт.
39
373006A1
VENT
1шт.
40
217-1088
ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male
3/4 PT x fem PT
1шт.
41
221-1090
REDUCER
3/4 x 1/8
1шт.
42
221-676
PLUG
3/4 PT
1шт.
43
373038A1
HOUSING
1шт.
44
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
6шт.
373124A1
KIT
Power End, Consists Of 45 - 50
1шт.
45
NSS
NOT SOLD SEPARAT
Gasket, Housing
1шт.
46
NSS
NOT SOLD SEPARAT
Seal, Shaft
1шт.
47
NSS
NOT SOLD SEPARAT
Shim
6шт.
48
NSS
NOT SOLD SEPARAT
Gasket, Housing
2шт.
49
NSS
NOT SOLD SEPARAT
Bearing, Con. Rod
6шт.
50
NSS
NOT SOLD SEPARAT
Seal, Oil
6шт.
51
221-409
FITTING
2 PT
1шт.
52
98200618
ADAPTER
2 in PT, male, Special
1шт.
53
98220018
CAP
2 in, Adapter
1шт.
54
364598A1
PLUG
1шт.
55
NSS
NOT SOLD SEPARAT
Fitting
1шт.
56
NSS
NOT SOLD SEPARAT
Fitting
1шт.
Выбрано товаров: 64
