Запчасти Case 6030 (08-03) - MOTOR, HYDRAULIC, LOW-FLOW DRILL FLUID (08) - HYDRAULICS

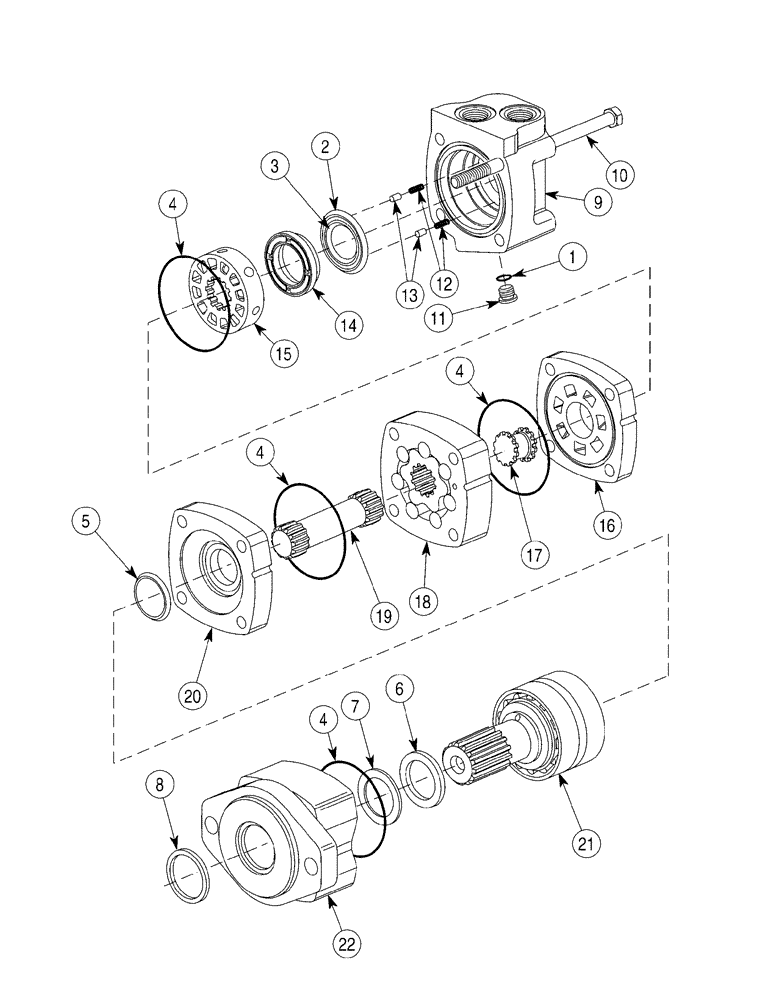

Схема запчастей Case 6030 - (08-03) - MOTOR, HYDRAULIC, LOW-FLOW DRILL FLUID (08) - HYDRAULICS
4
17
5
21
16
15
9
6
4
18
12
20
4
2
7
22
13
19
11
14
4
10
3
1
8

Артикул

Название

Примечание

Количество

338975A1

MOTOR

Low Flow, 30 gpm, High Pressure, Vendor Part No. 104-1031-006, If Used, Consists Of 1 - 22

1шт.

S300417

SEAL KIT

Includes 1 - 8

1шт.

1

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Face, Outer

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Face, Inner

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

4шт.

5

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

Face

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Exclusion

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Valve, Order 338975A1

1шт.

10

365410A1

SCREW

4шт.

11

278548

PLUG,Hex, 7/16"-20 ORB

Incl 1

1шт.

12

S114366

SPRING

2шт.

13

S114372

PIN

Balance Ring

2шт.

14

S300411

PLATE

Balance

1шт.

15

S300407

VALVE

1шт.

16

189096A1

PLATE

1шт.

17

S114496

COUPLING

Valve

1шт.

18

365409A1

GEROTOR

1шт.

19

S300404

DRIVE

Main

1шт.

20

189092A1

LARGE PLATE

PLATE, LARGE

1шт.

21

365399A1

SHAFT

Output, Splined, Includes Bearing, Not Serviced Separately

1шт.

22

NSS

NOT SOLD SEPARAT

Housing, Bearing, Order 338975A1

1шт.

388465A1

MOTOR, HYDRAULIC

High Flow, 45 gpm, Low Pressure, Vendor Part No. 104-1029-006, If Used, Consists Of 1 - 22

1шт.

S300417

SEAL KIT

Includes 1 - 8

1шт.

1

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Face, Outer

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Face, Inner

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

4шт.

5

S114491

SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk

Face

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Exclusion

1шт.

9

NSS

NOT SOLD SEPARAT

Housing, Valve, Order 388465A1

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

4шт.

11

278548

PLUG,Hex, 7/16"-20 ORB

Incl 1

1шт.

12

S114366

SPRING

2шт.

13

S114372

PIN

Balance Ring

2шт.

14

S300411

PLATE

Balance

1шт.

15

S300407

VALVE

1шт.

16

189096A1

PLATE

1шт.

17

S114496

COUPLING

Valve

1шт.

18

NSS

NOT SOLD SEPARAT

Gerotor

1шт.

19

NSS

NOT SOLD SEPARAT

Shaft, Main

1шт.

20

189092A1

LARGE PLATE

PLATE, LARGE

1шт.

21

365399A1

SHAFT

Output, Splined, Includes Bearing, Not Serviced Separately

1шт.

22

NSS

NOT SOLD SEPARAT

Housing, Bearing, Order 388465A1

1шт.

Выбрано товаров: 48
