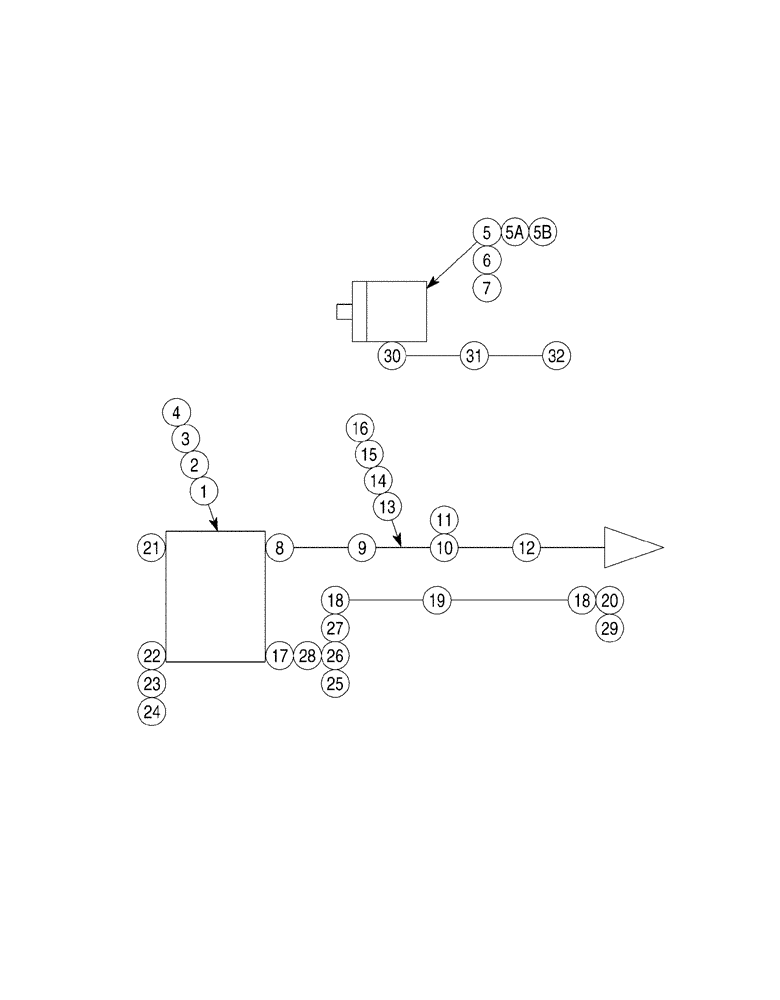

Запчасти Case 6030 (08-02) - PUMP AND MOTOR SYSTEM DRILL FLUID (08) - HYDRAULICS

1

349531A1

PUMP

Drill Fluid, Onboard, See Page(s) 8-53 - 8-57

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

4шт.

4

231-1448

NUT,1/2"-13, GB

4шт.

5

338975A1

MOTOR

Drill Fluid, Low Flow, 30 gpm, High Pressure, Vendor Part No. 104-1031-006, If Used, See Page(s) 8-49, 8-51

1шт.

5a

388465A1

MOTOR, HYDRAULIC

Drill Fluid, High Flow, 45 gpm, Low Pressure, Vendor Part No. 104-1029-006, If Used, See Page(s) 8-51B, 8-51D

1шт.

5b

400662A1

MOTOR, HYDRAULIC

Drill Fluid, Two Speed, 40 gpm, Vendor Part No. 104-2318-001, If Used, See Page(s) 8-51F, 8-51H, 8-51K

1шт.

6

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

388594A1

FITTING

1шт.

9

388591A1

HOSE ASSY.

302 mm (11-7/8 in), Water

2шт.

10

218-698

ELBOW,90 Degree Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

1шт.

11

218-1281

LOCK NUT,Blkhd, 1 5/16"-12

1-5/16 in

1шт.

12

388499A2

HOSE ASSY.

615 mm (24-1/4 in)

1шт.

13

R11860

CLAMP

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

16

224-2206

SQUARE NUT,Sq, 3/8"-16

3/8

1шт.

17

310589A1

BUSHING

1шт.

18

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

2шт.

19

388498A2

HOSE ASSY.

Mud Gauge

1шт.

20

TX472183

GAUGE

1шт.

21

364598A1

PLUG

1шт.

22

221-409

FITTING

1шт.

23

98200618

ADAPTER

Special

1шт.

24

98220018

CAP

Adapter

1шт.

25

01400111

BALANCE VALVE

Ball

1шт.

26

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

1шт.

27

217-1109

REDUCER,1/2"-14 Male NPTF x 1/4"-18 Female NPTF

1шт.

28

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

29

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

Used Only On Systems With Two-Speed Motor

1шт.

30

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Used With 5B, only on systems w/ 2 speed motor

1шт.

31

400824A1

HOSE ASSY.

Used With 5B, only on systems w/ 2 speed motor

1шт.

32

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

Used With 5B, only on system w/ 2 speed motor

1шт.

403023A1

ELECTRICAL WIRE

WIRE , Jumper, Power, Used With 5B, only on system w/ 2 speed motor

1шт.

403024A1

ELECTRICAL WIRE

WIRE , Jumper, Output, Used With 5B, only on system w/ 2 speed motor

1шт.

403025A1

ELECTRICAL WIRE

WIRE , Jumper, Track Drive, Used With 5B, only on system w/ 2 speed motor

1шт.

406149A1

ELECTRICAL WIRE

WIRE , Jumper, Switch, Used With 5B, only on system w/ 2 speed motor

1шт.
