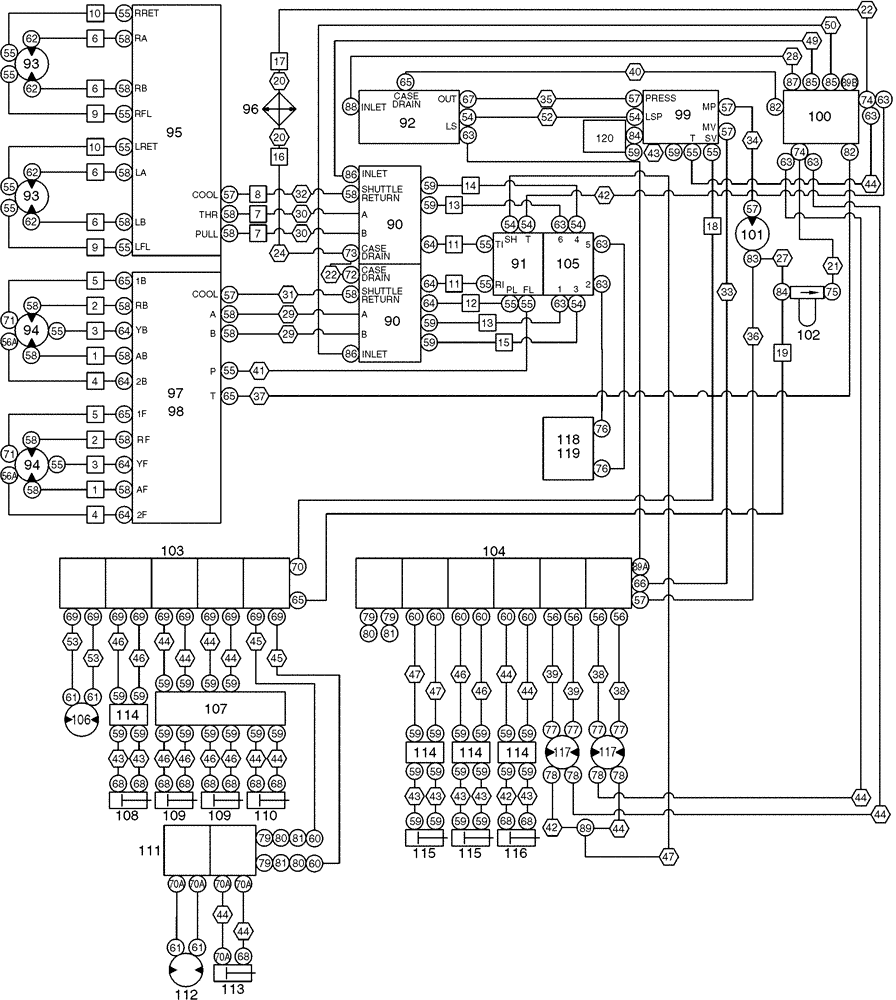

Запчасти Case 6030 (08-01) - HYDRAULICS HOSES AND TUBES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
369739A1
HYD TUBE,0.75" OD, 233, 58 mm Length
Drill Head Motor A Port
2шт.
2
369740A1
HYD TUBE,0.75" OD, 233, 58 mm Length
Drill Head Motor R Port
2шт.
3
382248A1
TUBE
Drill Head Motor Shift
2шт.
4
382249A2
TUBE
Drill Head Motor Flushing
2шт.
5
382250A3
TUBE,0.5" OD, 297, 260 mm Length
Drill Head Motor Drain
2шт.
6
374627A2
TUBE,0.75" OD, 245, 153 mm Length
Thrust/Pullback Motor Supply
4шт.
7
375806A2
TUBE
Thrust/Pullback Manifold Supply
2шт.
8
375807A2
TUBE
Thrust/Pullback Manifold Return
1шт.
9
386895A1
TUBE,0.375" OD, 255, 73 mm Length
Thrust/Pullback Motor Flushing
2шт.
10
386896A1
TUBE,0.375" OD, 144.7, 59 mm Length
Thrust/Pullback Motor Drain
2шт.
11
382512A1
TUBE,0.375" OD, 505.315 mm Length
Charge Manifold Supply
2шт.
12
382514A1
TUBE,0.375" OD, 407.047 mm Length
Pressure Limit Valve Supply
1шт.
13
382509A1
TUBE,0.25" OD, 243.098 mm Length
Thrust/Rotation Pump A Port Pressure
2шт.
14
382648A1
TUBE
Thrust Pump B Port Pressure
1шт.
15
382649A1
TUBE
Rotation Pump B Port Pressure
1шт.
16
384134A1
TUBE,1" OD, 1475, 158 mm Length
Cooler Supply
1шт.
17
384135A1
TUBE,1" OD, 1480, 150 mm Length
Cooler Return
1шт.
18
384089A2
TUBE,0.375" OD, 251, 77 mm Length
Solenoid Valve Supply
1шт.
19
384090A1
TUBE,0.5" OD, 519.085 mm Length
Solenoid Valve Return
1шт.
20
3040743R1
HOSE,6.00"
Cooler Connecting
2шт.
21
386245A1
HYDRAULIC HOSE,25.40 mm ID x 838.00 mm, SAE 16, SAE J516
Filter Return
1шт.
22
385788A1
HYDRAULIC HOSE,25.40 mm ID x 279.00 mm, SAE 16
Pump Connecting
2шт.
24
385791A1
HYDRAULIC HOSE,25.40 mm ID x 660.00 mm, SAE 16
Cooler Supply
1шт.
27
385793A1
HOSE ASSY.
Mud Motor, Return
1шт.
28
358676A1
HOSE ASSY.,31.75 mm ID x 980.00 mm
Pump Suction
1шт.
29
386247A1
HOSE ASSY.
Drill Head Manifold Supply
2шт.
30
386248A1
HOSE ASSY.
Thrust/Pullback Manifold Supply
2шт.
31
386249A1
HOSE ASSY.
Drill Head Manifold Return
1шт.
32
386250A2
HOSE ASSY.
Thrust/Pullback Manifold Return
1шт.
33
386251A1
HOSE ASSY.
Rear Valve, Supply
1шт.
34
386252A1
HOSE ASSY.
Mud Motor, Supply
1шт.
35
386253A1
HOSE ASSY.
System Manifold, Supply
1шт.
36
386254A1
HOSE ASSY.
Rear Control Valve, Return
1шт.
37
386255A1
HOSE ASSY.
Drill Head Manifold, Drain
1шт.
38
386256A1
HOSE ASSY.
Right Track Motor, Supply
2шт.
39
386259A1
HOSE ASSY.
Left Track Motor, Supply
2шт.
40
386261A1
HOSE ASSY.
System Pump Case Drain
1шт.
41
386262A1
HOSE ASSY.
Drill Head Manifold Flushing
1шт.
42
386263A1
HOSE ASSY.
3шт.
43
386264A1
HOSE ASSY.
8шт.
44
386265A1
HOSE ASSY.
14шт.
45
386266A1
HOSE ASSY.
Stakedown Valve, Supply
2шт.
46
388294A1
HOSE ASSY.
8шт.
47
388295A1
HOSE ASSY.
3шт.
48
388296A2
HOSE ASSY.
Rear Valve Load Sense
1шт.
49
388297A1
HOSE ASSY.
Thrust Pump, Suction
1шт.
50
388298A1
HOSE ASSY.
Rotate Pump, Suction
1шт.
51
388299A1
HOSE ASSY.
Stakedown Motor, Supply
2шт.
52
388300A1
HOSE ASSY.
3шт.
53
388301A1
HOSE ASSY.
Drill Pipe Loader Motor, Supply
2шт.
Hardware
1шт.
118577A1
CLAMP
Two Piece, 1 x 1/2 in Holes, supply hardware
3шт.
385496A1
CLAMP
supply hardware
2шт.
1546027C1
CLAMP
Two Piece, 3/4 x 3/4 in Holes, supply hardware
3шт.
1546026C1
CLAMP
Two Piece, 5/8 x 5/8 in Holes, supply hardware
6шт.
1347127C1
PLATE
Clamp, supply hardware
5шт.
1301387C2
CLIP
supply hardware
3шт.
515-22111
CLAMP,7/16", Insul, 5/16" Bolt
supply hardware
1шт.
413-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
Supply hardware
2шт.
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
Supply hardware
2шт.
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
Supply hardware
3шт.
413-556
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
supply hardware
4шт.
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
Supply hardware
1шт.
413-524
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
supply hardware
1шт.
413-560
BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5
Supply hardware
1шт.
231-4144
NUT,1/4"-20, GB
Supply hardware
2шт.
231-4145
NUT,5/16"-18, GB
Supply hardware
9шт.
496-21028
WASHER,.281" x 5/8" x .075", HDN
supply hardware
4шт.
496-21034
WASHER,11/32" x 11/16" x 0.89", HDN
Supply hardware
10шт.
214-3228
HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner
Supply hardware
12шт.
114285A1
KIT
Split Flange, supply hardware
4шт.
388458A1
LINING
supply hardware
3шт.
D131814
SLEEVE
supply hardware
2шт.
L71188
CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type
supply hardware
2шт.
R17319
CLAMP
supply hardware
2шт.
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP , supply hardware
1шт.
54
201-100
HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
Includes 238-6011, 237-6004, hardware supply
6шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
55
201-101
HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 238-6012, 237-6006, Hardware supply
17шт.
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end, hardware supply
1шт.
56
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 238-6014, 237-6008, hardware supply
4шт.
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
56a
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 238-6012, 237-6008, hardware supply
2шт.
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
57
201-103
HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB
Includes 238-6016, 237-6010, hardware supply
7шт.
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss End, hardware supply
1шт.
58
201-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Includes 238-6018, 237-6012, Hardware supply
18шт.
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
59
201-111
HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB
Incl. 238-6011, 237-6006, Hardware supply
37шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end, hardware supply
1шт.
60
201-119
FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB
Includes 238-6011, 237-6008, hardware supply
8шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
61
201-139
HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB
Includes 238-6012, 237-6010, hardware supply
4шт.
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss End, hardware supply
1шт.
62
201-129
HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB
Includes 238-6018, 237-6016, hardware supply
4шт.
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
63
201-303
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
Includes 238-6011, 237-6004, hardware supply
9шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
64
201-304
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Includes 238-6012, 237-6006, hardware supply
7шт.
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end, hardware supply
1шт.
65
201-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Incl. 238-6014, 237-6008, Hardware supply
5шт.
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
66
201-306
90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB
Includes 238-6016, 237-6010, hardware supply
1шт.
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
Boss End, hardware supply
1шт.
67
201-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB
Includes 238-6018, 237-6012, hardware supply
1шт.
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
68
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
Includes 238-6011, 237-6006, hardware supply
15шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end, hardware supply
1шт.
69
201-325
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 3/4" - 16 Male ORB
Includes 238-6011, 237-6008, hardware supply
10шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
70
201-345
ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 238-6012, 237-6008, hardware supply
1шт.
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
70a
201-328
ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB
Incl 238-6011, 237-6006, Hardware supply
5шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End, Hardware supply
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end, hardware supply
1шт.
71
201-348
ELBOW,45 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 238-6014, 237-6008, hardware supply
2шт.
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
Face Seal End, Hardware Supply
1шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end, Hardware supply
1шт.
72
217-366
FITTING,90 Degree Elbow, 1" Hose Barb x 1-1/16" - 12 Male ORB
Includes 237-6012, Hardware supply
1шт.
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Hardware supply
1шт.
73
375462A1
FITTING
Includes 237-6012, hardware supply
1шт.
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Hardware supply
1шт.
74
387902A1
FITTING
hardware supply
2шт.
75
217-179
FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB
Includes 237-6016, Hardware supply
1шт.
76
386244A1
FITTING
Includes 238-6011, hardware supply
2шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Hardware supply
1шт.
77
388452A1
COUPLING
Track Supply, hardware supply
4шт.
78
388453A1
COUPLING
Track Shift and Drain, hardware supply
4шт.
79
183510A1
FITTING
Includes 237-6008, hardware supply
4шт.
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Hardware supply
2шт.
80
385357A1
COUPLING
Female, hardware supply
3шт.
82
385361A1
ELBOW
Includes 238-6014, hardware supply
2шт.
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
Hardware supply
1шт.
83
385359A1
TEE
Mud Pump Outlet, hardware supply
1шт.
84
385360A1
TEE
Filter, hardware supply
1шт.
84a
393268A1
FITTING
Includes 237-6006, hardware supply
1шт.
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Hardware supply
2шт.
85
218-1068
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/4"-11 1/2, NPTF
hardware supply
2шт.
86
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. 237-6016, hardware supply
2шт.
87
218-449
HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF
hardware supply
1шт.
88
218-5112
ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB
Includes 237-6020, hardware supply
1шт.
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
Hardware supply
1шт.
89
201-430
TEE,9/16"-18 ORFS
Includes 238-6011, hardware supply
1шт.
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Hardware supply
3шт.
90
375391A2
PUMP
Hydrostatic, Tandem Piston, Drill Thrust/Pullback, Drill Rotation, See Page(s) 6-3 - 6-39, hardware supply
1шт.
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
Hardware supply
4шт.
496-31053
WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk
17/32 x 1-1/16 x 3/16, hardware supply
4шт.
863-8035
HEX SOC SCREW,M8 x 35mm, Cl 12.9
M8 x 35; 12.9, hardware supply
2шт.
91
381455A2
MANIFOLD VALVE
Charge Pump, See Page(s) 6-55, hardware supply
1шт.
49335K
SPACER,1/2" X-Strng Pipe x .406"
hardware supply
2шт.
828-8080
BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9
M8 x 80; 10.9, hardware supply
2шт.
496-21034
WASHER,11/32" x 11/16" x 0.89", HDN
Hardware supply
12шт.
92
336408A3
PUMP
Hydraulic, Auxiliary System, See Page(s) 8-87 - 8-91, hardware supply
1шт.
426-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
Hardware supply
2шт.
496-31053
WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk
17/32 x 1-1/16 x 3/16, hardware supply
2шт.
93
375485A1
MOTOR, HYDRAULIC
Hydrostatic, Thrust/Pullback, See Page(s) 6-41, 6-43, hardware supply
2шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hardware supply
8шт.
231-14412
LOCK NUT,3/4"-10, GB
Hardware supply
8шт.
94
362001A1
MOTOR
Drill Rotation, Clockwise Rotation, See Page(s) 6-45, 6-47, hardware supply
2шт.
426-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 8
5/8 x 2; 8, hardware supply
20шт.
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
Hardware supply
20шт.
238-5269
O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro
Hardware supply
2шт.
95
384921A1
MANIFOLD VALVE
Thrust/Pullback, See Page(s) 6-57, 6-59, hardware supply
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Hardware supply
2шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
2шт.
375831A2
PLATE
Thrust and Rotation Manifold Valve Mounting, hardware supply
2шт.
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
Hardware supply
4шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
8шт.
231-1446
NUT,3/8" - 16, Gr 5
Hardware supply
4шт.
96
380700A1
COOLER, OIL
hardware supply
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Hardware supply
4шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
8шт.
231-1446
NUT,3/8" - 16, Gr 5
Hardware supply
4шт.
97
369554A2
MANIFOLD VALVE
Drill Drive, See Page(s) 6-49, hardware supply
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Hardware supply
4шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
4шт.
98
369555A2
MANIFOLD VALVE
Drill Head Rotation, See Page(s) 6-51, hardware supply
1шт.
413-556
BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5
5/16 x 3-1/2, hardware supply
4шт.
496-21034
WASHER,11/32" x 11/16" x 0.89", HDN
Hardware supply
4шт.
99
373303A3
MANIFOLD VALVE
System Control, See Page(s) 8-103, 8-105, hardware supply
1шт.
413-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
Hardware supply
4шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
4шт.
376268A1
BRACKET
System Control Manifold Valve Mounting, hardware supply
2шт.
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
Hardware supply
4шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
8шт.
231-1446
NUT,3/8" - 16, Gr 5
Hardware supply
4шт.
100
329387A3
TANK
Includes L116247, No Longer Used, Order 329387A4, hardware supply
1шт.
329387A4
TANK
Includes L116247, hardware supply
1шт.
L116247
GAUGE
Liquid Level, Includes Hardware, supply
1шт.
NSS
NOT SOLD SEPARAT
Bolt, hardware supply
2шт.
238-7112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
Hardware supply
4шт.
892-11012
LOCK WASHER,M12
Hardware Supply
2шт.
829-1412
NUT,M12, Cl 10.9
Hardware supply
2шт.
231-1448
NUT,1/2"-13, GB
Hardware supply
4шт.
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardware supply
8шт.
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
Hardware supply
4шт.
348908A1
HOSE, BULK
HOSE, METERS , Reservoir Fill, hardware supply
1шт.
214-1536
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner
hardware supply
2шт.
352891A1
SCREEN
In-Line Suction, Reservoir, hardware supply
1шт.
257448A1
CAP
Reservoir, Includes 292259A1, hardware supply
1шт.
292259A1
SEAL
hardware supply
1шт.
348877A2
NECK FILLER
hardware supply
1шт.
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
Hardware supply
2шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
4шт.
231-1446
NUT,3/8" - 16, Gr 5
Hardware supply
2шт.
101
REF
INSTRUCTION
Motor, Drill Fluid System, Onboard, See Page(s) 8-45 - 8-47D, hardware supply
1шт.
102
336740A1
FILTER ASSY
Return Line, See Page(s) 8-67, hardware supply
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Hardware supply
2шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
2шт.
103
336416A2
VALVE
Front, See Page(s) 8-107, hardware supply
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Hardware supply
4шт.
496-21041
WASHER,13/32" x 13/16" x .089", HDN
Hardware supply
8шт.
231-1446
NUT,3/8" - 16, Gr 5
Hardware supply
4шт.
104
373492A2
VALVE
Rear Machine Control Valve, See Page(s) 8-99, 8-101, hardware supply
1шт.
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
Hardware supply
3шт.
496-21034
WASHER,11/32" x 11/16" x 0.89", HDN
Hardware supply
3шт.
105
381439A1
MANIFOLD VALVE
Shuttle Valve, See Page(s) 6-53, hardware supply
1шт.
463-11028
SCREW,Hex Hd, #10-24 x 1 3/4"
Hardware supply
2шт.
106
338977A1
HYDRAULIC MOTOR
Drill Pipe Loader, See Page(s) 8-59, 8-61, hardware supply
1шт.
107
336412A2
MANIFOLD
Power Wrench, See Page(s) 8-69, hardware supply
1шт.
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Hardware supply
4шт.
496-21034
WASHER,11/32" x 11/16" x 0.89", HDN
Hardware supply
4шт.
108
H674930
STEERING CYLINDER
51 ID x 127 mm strk, Drill Pipe Lifter, See Page(s) 8-75, hardware supply
1шт.
109
384320A1
CYLINDER
63 ID x 153 mm strk, Power Wrench Clamp, See Page(s) 8-77, hardware supply
2шт.
110
135825A1
CYLINDER,Double Acting, 25.4mm Rod, 142.7mm Stroke
51 ID x 143 mm strk, Power Wrench Rotate, See Page(s) 8-79, hardware supply
1шт.
111
352533A1
VALVE
Stakedown Control Valve, See Page(s) 8-71, hardware supply
1шт.
413-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
Hardware supply
2шт.
496-21028
WASHER,.281" x 5/8" x .075", HDN
9/32 x 5/8 x 5/64, hardware supply
4шт.
231-1444
NUT,1/4"-20, GB
Hardware supply
2шт.
112
10412211
MOTOR, HYDRAULIC
Stakedown Control, See Page(s) 8-63, 8-65, hardware supply
1шт.
413-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Hardware supply
2шт.
496-21053
WASHER,17/32" x 1 1/16" x .134"
Hardware supply
2шт.
231-1448
NUT,1/2"-13, GB
Hardware supply
2шт.
113
329251A2
CYLINDER
51 ID x 448 mm strk, Stakedown Control, See Page(s) 8-81, hardware supply
1шт.
114
348998A1
VALVE
Cylinder Lock Valve, See Page(s) 8-73, hardware supply
4шт.
413-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
Hardware supply
8шт.
496-21028
WASHER,.281" x 5/8" x .075", HDN
9/32 x 5/8 x 5/64, hardware supply
16шт.
231-1444
NUT,1/4"-20, GB
Hardware supply
8шт.
115
335699A1
CYLINDER
51 ID x 381 mm strk, Rear Stabilizer, See Page(s) 8-83, hardware supply
2шт.
116
335700A1
CYLINDER
89 ID x 411 mm strk, Boom Tilt, See Page(s) 8-85, hardware supply
1шт.
117
419012A1
DRIVE ASSY.
Track Drive, See Page(s) 5-5 - 5-15, hardware supply
2шт.
118
TX472185
GAUGE
5000 psi, Pressure, Includes 389603A1, hardware supply
1шт.
389603A1
SCREW
hardware supply
2шт.
119
378170A1
GAUGE
7500 psi, Pressure, hardware supply
1шт.
120
393875A1
BY-PASS VALVE
Drill Fluid, See Page(s) 8-97, hardware supply
1шт.
Выбрано товаров: 268
