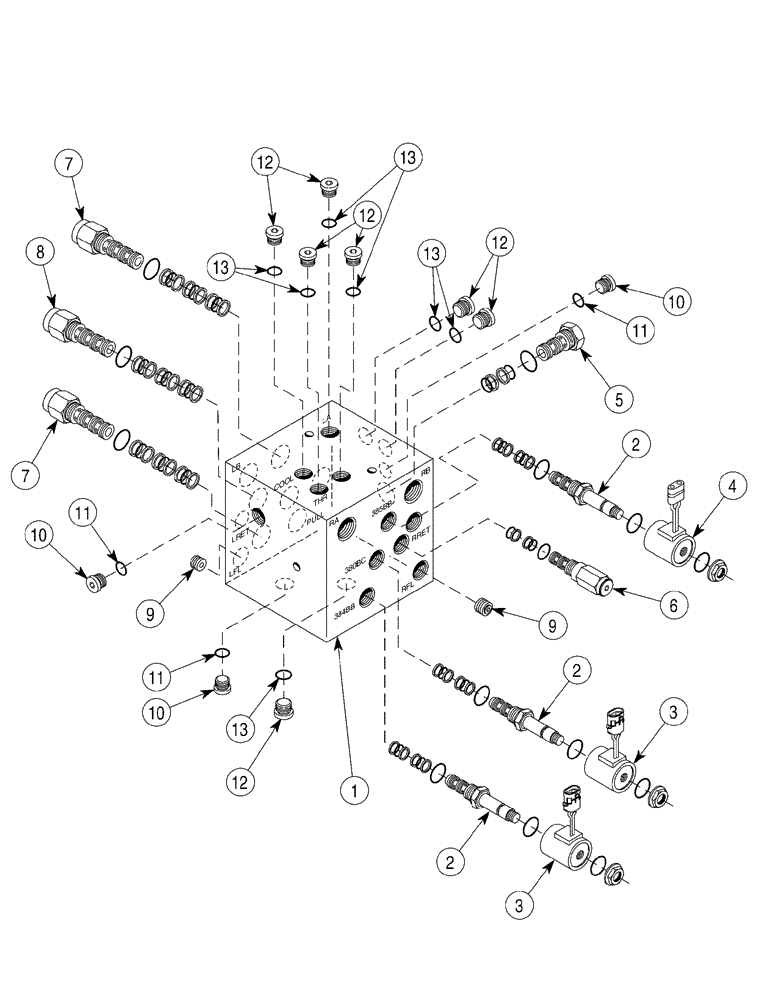

Запчасти Case 6030 (06-14) - VALVE, MANIFOLD THRUST (06) - POWER TRAIN

384921A1

MANIFOLD VALVE

Thrust/Pullback, Includes 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

381048A1

CARTRIDGE

Component Parts Not Serviced Separately, Includes 329483A1

3шт.

329483A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

3

301099A1

COIL

2шт.

4

388730A1

COIL

1шт.

5

381036A1

CARTRIDGE

Shuttle, Includes 381037A1

1шт.

381037A1

KIT

Component Parts Not Serviced Separately

1шт.

6

381044A1

CARTRIDGE

Includes 1542831C1

1шт.

1542831C1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

7

388743A1

CARTRIDGE

Pilot, Directional, Includes 388744A1

2шт.

388744A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

8

386879A1

CARTRIDGE

Pilot, Directional, Includes 388744A1

1шт.

388744A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

9

388745A1

PLUG

2шт.

10

278548

PLUG,Hex, 7/16"-20 ORB

Incl 11

3шт.

11

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

12

9625178

PLUG,9/16" - 18 ORB

Incl. 13

7шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
