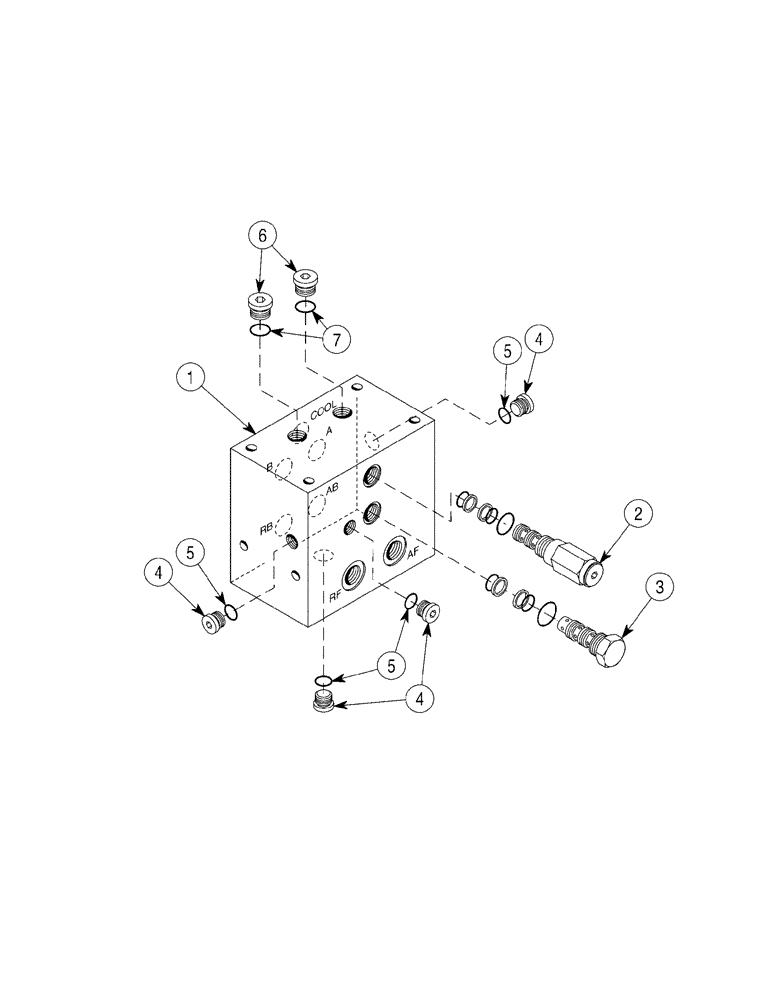

Запчасти Case 6030 (06-10) - VALVE, MANIFOLD DRILL DRIVE (06) - POWER TRAIN

369554A2

MANIFOLD VALVE

Drill Drive, Includes 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

381029A1

CARTRIDGE

Component Parts Not Serviced Separately, Includes 1542830C2

1шт.

1542830C2

SEAL KIT

Component Parts Not Serviced Separately

1шт.

3

381030A1

CARTRIDGE

Shuttle, Includes 381032A1

1шт.

381032A1

KIT

Component Parts Not Serviced Separately

1шт.

4

86632547

PLUG,Hex, 5/16"-24 ORB

Includes 5

4шт.

5

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
