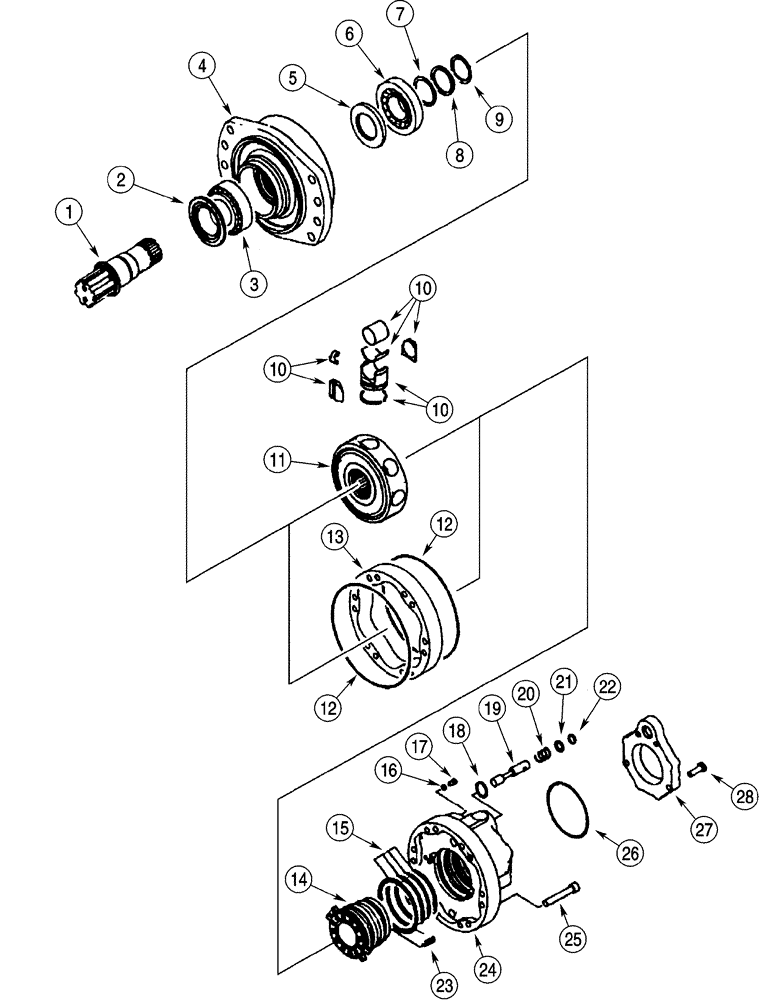

Запчасти Case 6030 (06-09) - MOTOR, DRILL ROTATION HYDROSTATIC (06) - POWER TRAIN

362001A1

MOTOR

Drill Rotation, Clockwise Rotation, Consists Of 1 - 28

1шт.

1

376266A1

SHAFT

1шт.

376254A1

SUPPORT ASSY.

Consists Of 2 - 9

1шт.

2

376265A1

SEAL

1шт.

3

376257A1

BALL BEARING

1шт.

4

376255A1

SUPPORT

1шт.

5

376256A1

SEAL KIT

1шт.

6

376259A1

BALL BEARING

1шт.

7

376260A1

SHIM

1шт.

8

376262A1

RING

1шт.

9

376264A1

RING, SNAP

RING SNAP

1шт.

376231A1

SUPPORT

Consists Of 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Piston

1шт.

11

NSS

NOT SOLD SEPARAT

Block

1шт.

376232A1

CAM

Consists Of 12, 13

1шт.

12

376233A1

O-RING

2шт.

13

NSS

NOT SOLD SEPARAT

Cam

1шт.

362001A1

MOTOR

Hydrostatic, Continued From Previous Page

1шт.

376235A1

VALVE

Consists Of 14 - 26

1шт.

14

376242A1

VALVE

1шт.

15

376243A1

KIT

1шт.

16

376238A1

WASHER

6шт.

17

376239A1

BOLT

6шт.

18

376249A1

O-RING

1шт.

19

376245A1

SPOOL

1шт.

20

376248A1

SPRING

1шт.

21

376246A1

WASHER

1шт.

22

376247A1

RING, SNAP

RING SNAP

1шт.

23

376244A1

SPRING

1шт.

24

376236A1

COVER

1шт.

25

376237A1

BOLT

6шт.

26

376241A1

SEAL

Cover

1шт.

27

376251A1

PLATE ASSY.

Includes 28

1шт.

28

376252A1

BOLT

4шт.

376267A1

KIT

Consists Of 2, 5, 12, 16, 18, 26

1шт.
