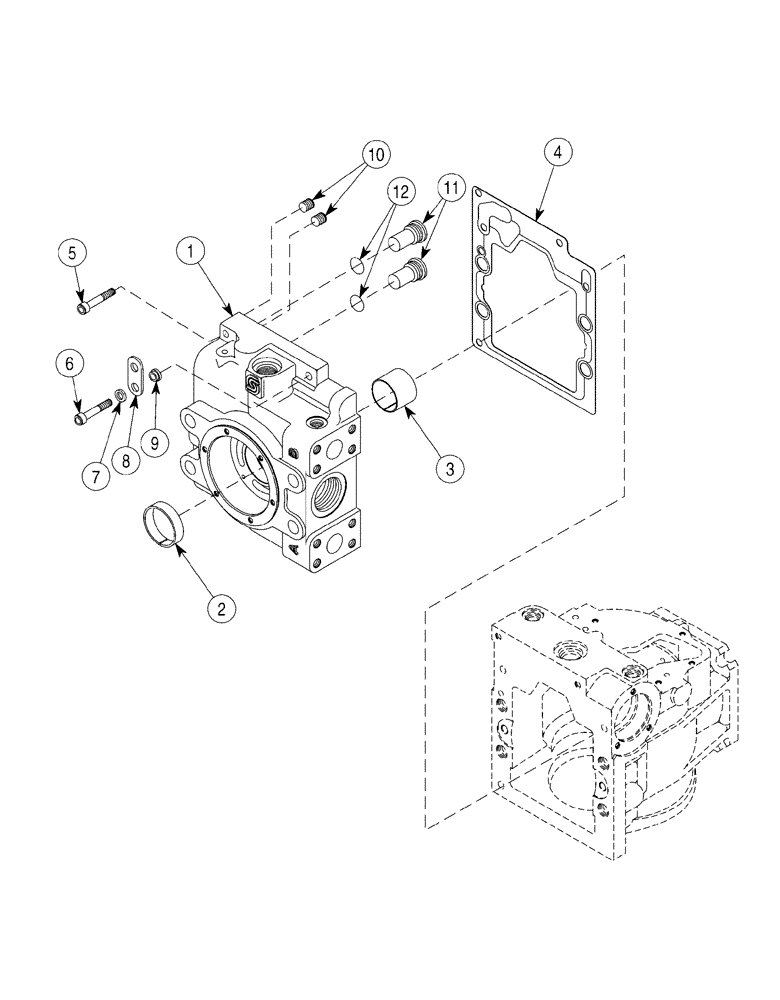

Запчасти Case 6030 (06-07) - PUMPS, FRONT AND REAR HYDROSTATIC END CAP (06) - POWER TRAIN

End Cap

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Front, See Page(s) 6-3, Includes 1 - 12

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Rear, See Page(s) 6-3, Includes 1 - 12

1шт.

1

188070A1

CAP

End, Includes 2, 3

1шт.

2

105668A1

BUSHING

1шт.

3

105667A1

BEARING

1шт.

4

188072A1

GASKET

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 4

1шт.

End Cap

1шт.

5

105672A1

SCREW

1шт.

6

105673A1

SCREW

1шт.

7

F23187

WASHER

1шт.

8

105671A1

BRACKET

Lifting

1шт.

9

105670A1

SPACER

1шт.

10

105703A1

PLUG

2шт.

11

105702A1

VALVE

Includes 12

2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
