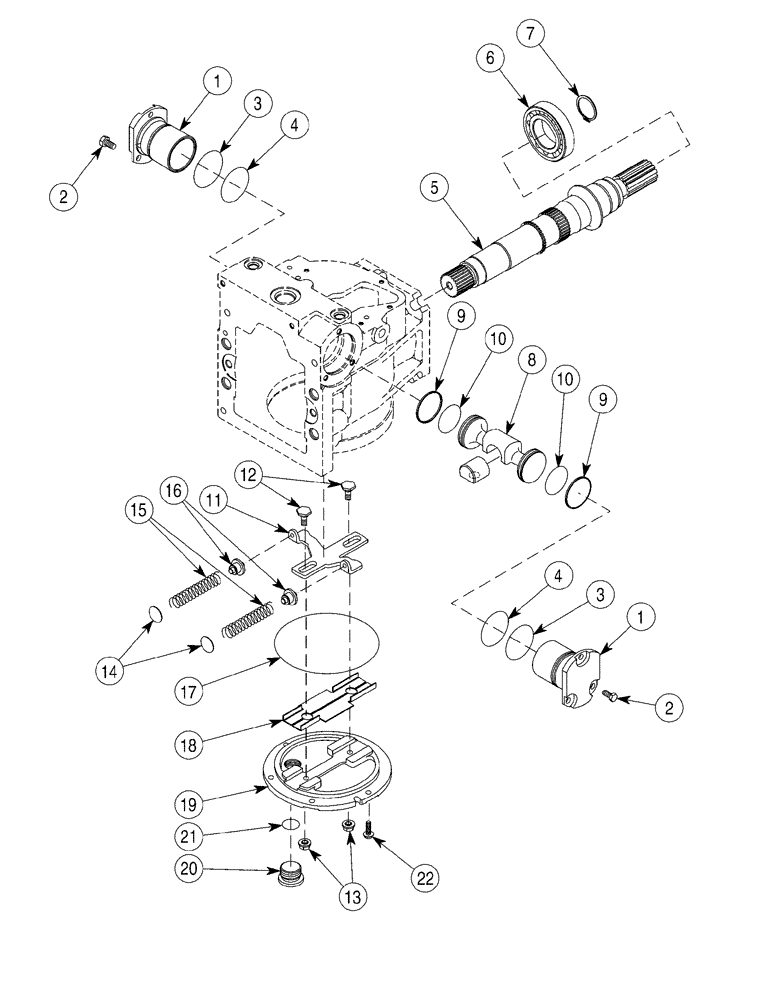

Запчасти Case 6030 (06-06) - PUMPS, FRONT AND REAR HYDROSTATIC SERVO PISTON AND MAIN SHAFT (06) - POWER TRAIN

Servo Piston And Main Shaft

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Front, See Page(s) 6-3, Includes 1 - 22

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Rear, See Page(s) 6-3, Includes 1 - 22

1шт.

1

105665A1

KIT

Displacement Limiter, Includes 2 - 4

2шт.

2

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

3шт.

3

238-5032

O-RING,0.07" Thk x 1.864" ID, -32, Cl 5, 75 Duro

1шт.

4

238-5031

O-RING,0.07" Thk x 1.739" ID, -31, Cl 5, 75 Duro

1шт.

5

105690A1

SHAFT

Main

1шт.

6

370479A1

ROLLER BEARING

1шт.

7

100-11137

SNAP RING,#137, Ext

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 3, 4

1шт.

Servo Piston And Main Shaft

1шт.

8

370484A1

KIT

Includes 9, 10

1шт.

9

105654A1

RING

2шт.

10

105653A1

O-RING

2шт.

11

105645A1

LEVER

Leveler

1шт.

12

370467A1

POST

2шт.

13

105649A1

NUT

2шт.

14

419348A1

SHIM

2шт.

15

105652A1

SPRING

2шт.

16

105646A1

SEAT

2шт.

17

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

18

419349A1

INSERT

1шт.

19

370466A1

COVER

Side

1шт.

20

9841223

PLUG,1-1/16" - 12 ORB

Incl. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

105650A2

SCREW

Special

6шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 9, 10, 13, 17, 22

1шт.
