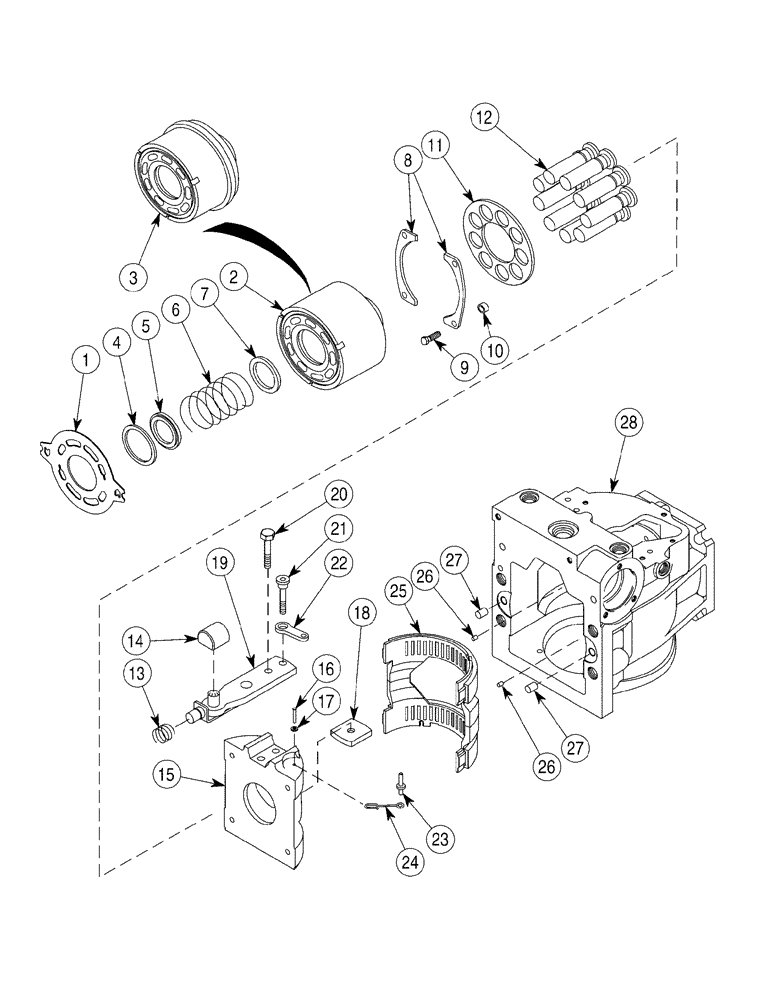

Запчасти Case 6030 (06-05) - PUMPS, FRONT AND REAR HYDROSTATIC CYLINDER BLOCK AND SWASH PLATE (06) - POWER TRAIN

Cylinder Block And Swash Plate

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Front, See Page(s) 6-3, Includes 1, 2, 4 - 28

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Rear, See Page(s) 6-3, Includes 1, 3, 4 - 28

1шт.

1

370463A1

PLATE

1шт.

Cylinder Block And Swash Plate

1шт.

105639A1

CYLINDER

Rotating Group, Front Pump Only, Consists Of 2, 4 - 12

1шт.

370487A1

KIT

Rotating Group, With Speed Ring, Rear Pump Only, Consists Of 3, 4 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Block Assy, Cylinder, Front Pump Only, Includes 4 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Block Assy, Cylinder, With Speed Ring, Rear Pump Only, Includes 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

5

NSS

NOT SOLD SEPARAT

Retainer

1шт.

6

NSS

NOT SOLD SEPARAT

Spring

1шт.

7

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

Cylinder Block And Swash Plate

1шт.

REF

INSTRUCTION

Kit, Rotating Group, Front Or Rear Pump, Continued From Previous Page, Includes 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

Retainer

2шт.

9

NSS

NOT SOLD SEPARAT

Screw, Special

4шт.

10

NSS

NOT SOLD SEPARAT

Spacer

4шт.

11

NSS

NOT SOLD SEPARAT

Guide

1шт.

12

NSS

NOT SOLD SEPARAT

Piston

9шт.

13

105643A1

SPRING

1шт.

14

105656A1

BLOCK

1шт.

105640A1

LARGE PLATE

PLATE, LARGE , Variable, Complete, Consists Of 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

Plate, Swash

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 9

1шт.

Cylinder Block And Swash Plate

1шт.

105640A1

LARGE PLATE

PLATE, LARGE , Variable, Complete, Continued From Previous Page, Consists Of 15 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

Pin, Roll

1шт.

17

NSS

NOT SOLD SEPARAT

Washer

1шт.

18

NSS

NOT SOLD SEPARAT

Guide

1шт.

19

NSS

NOT SOLD SEPARAT

Arm Assy, Servo

1шт.

20

NSS

NOT SOLD SEPARAT

Screw

1шт.

21

NSS

NOT SOLD SEPARAT

Screw

1шт.

22

NSS

NOT SOLD SEPARAT

Link, Feedback

1шт.

23

370465A1

PIN

1шт.

24

183868A1

LINK

1шт.

25

105637A1

BEARING

Includes 26

1шт.

26

NSS

NOT SOLD SEPARAT

Pin

2шт.

27

F23124

AXLE PIN

2шт.

28

NSS

NOT SOLD SEPARAT

Housing

1шт.
