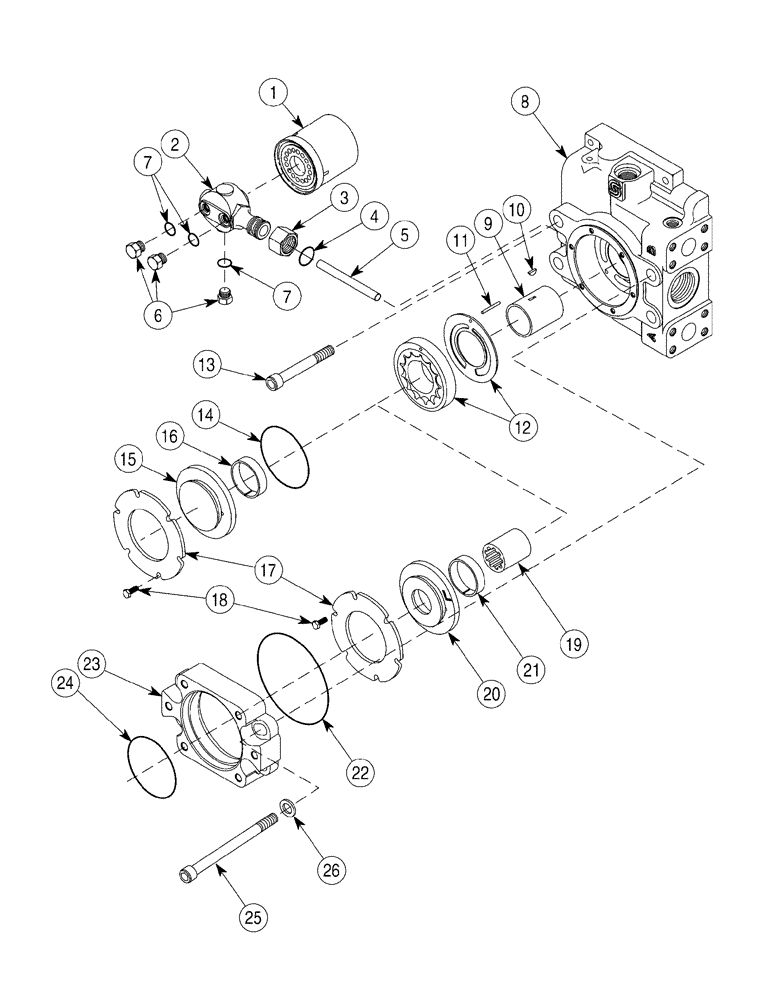

Запчасти Case 6030 (06-04) - PUMPS, FRONT AND REAR HYDROSTATIC CHARGE PUMP AND FILTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
Charge Pump And Filter
1шт.
REF
INSTRUCTION
Pump, Hydrostatic, Front, See Page(s) 6-3, Includes 1 - 12, 17 - 26
1шт.
REF
INSTRUCTION
Pump, Hydrostatic, Rear, See Page(s) 6-3, Includes 1 - 18
1шт.
2
414347A1
KIT
Includes 3 - 5
1шт.
3
419350A1
NUT
1шт.
5
419351A1
TUBE
1шт.
6
76349
PLUG,9/16" - 18 ORB
Incl. 7
3шт.
105705A1
SEAL KIT
Front Or Rear Pump, Includes 4
1шт.
Charge Pump And Filter
1шт.
8
188070A1
CAP
End, See Page(s) 6-37
1шт.
9
414345A1
SHAFT
Charge Pump
1шт.
10
126-106
WOODRUFF KEY,# 213, 1/8" x 3/8", HT
1шт.
11
105677A1
PIN
1шт.
12
370470A1
SET
Charge Pump, Front Pump Only
1шт.
12
128594A1
PUMP
Charge Pump, Rear Pump Only
1шт.
13
370486A1
SCREW
Rear Pump Only
4шт.
14
238-5044
O-RING,0.07" Thk x 3.739" ID, -44, Cl 5, 75 Duro
Rear Pump Only
1шт.
105705A1
SEAL KIT
Front Or Rear Pump, Includes 14
1шт.
Charge Pump And Filter
1шт.
15
370485A1
COVER
Charge Pump, Rear Pump Only, Includes 16
1шт.
16
105668A1
BUSHING
1шт.
17
105679A1
LARGE PLATE
PLATE, LARGE , Retainer
1шт.
18
628-6016
BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd
6шт.
370471A1
FLANGE
Mounting Flange, Front Pump Only, Consists Of 19 - 26
1шт.
19
370472A1
COUPLING
Front Pump Only
1шт.
20
370474A1
COVER ASSY
Charge Pump, Front Pump Only, Includes 21
1шт.
21
105668A1
BUSHING
1шт.
Charge Pump And Filter
1шт.
370471A1
FLANGE
Mounting Flange, Front Pump Only, Continued From Previous Page, Consists Of 19 - 26
1шт.
22
238-5158
O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro
Front Pump Only
1шт.
23
370476A1
ADAPTER
Front Pump Only
1шт.
24
370460A1
O-RING
Front Pump Only
1шт.
25
105689A1
SCREW
Front Pump Only
4шт.
26
426531A1
WASHER
Front Pump Only
4шт.
105705A1
SEAL KIT
Front Or Rear Pump, Includes 22, 24
1шт.
7
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
