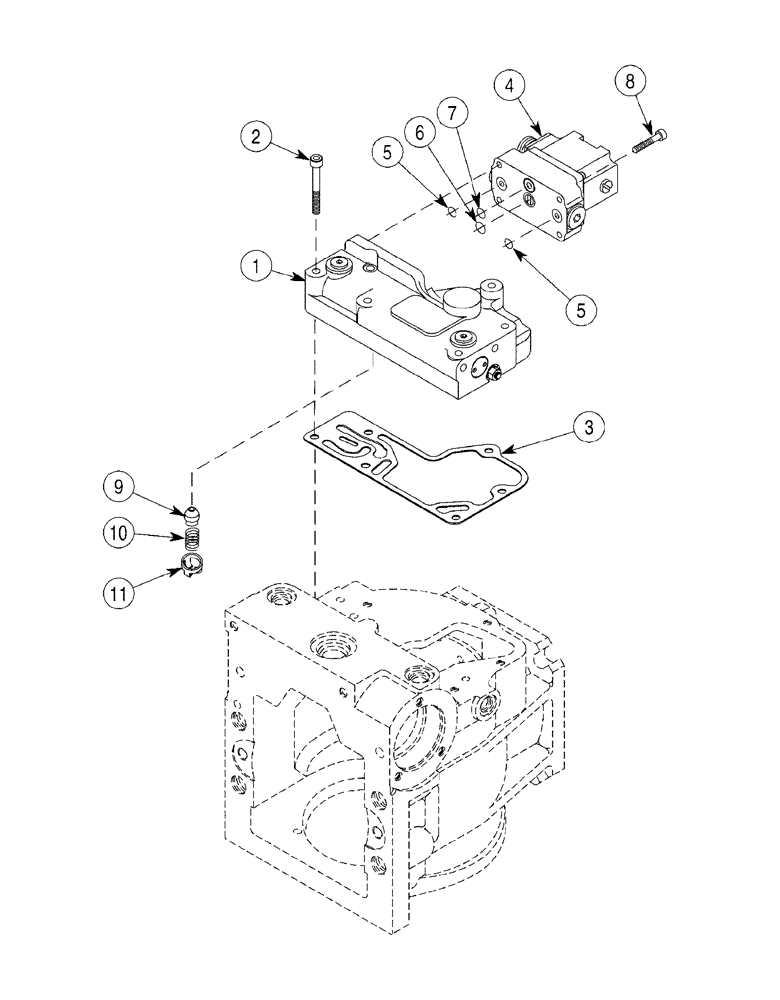

Запчасти Case 6030 (06-03) - PUMPS, FRONT AND REAR HYDROSTATIC ELECTRIC DISPLACEMENT CONTROL (06) - POWER TRAIN

Electric Displacement Control

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Front, See Page(s) 6-3, Includes 1 - 11

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Rear, See Page(s) 6-3, Includes 1 - 11

1шт.

370480A1

KIT

Electric Displacement Control, Consists Of 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

Control Block, Order 370480A1

1шт.

2

105694A1

SCREW

6шт.

3

105692A1

GASKET

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 3

1шт.

Electric Displacement Control

1шт.

370480A1

KIT

Electric Displacement Control, Continued From Previous Page, Consists Of 1 - 8

1шт.

4

370481A1

CONNECTOR, ELEC

CONNECTOR , Includes 5 - 7

1шт.

5

238-7012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

2шт.

6

238-7013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

7

238-8012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 8, 90 Duro

1шт.

8

370482A1

SCREW

4шт.

9

105704A1

KIT

Includes 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Retainer

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 5 - 7

1шт.
