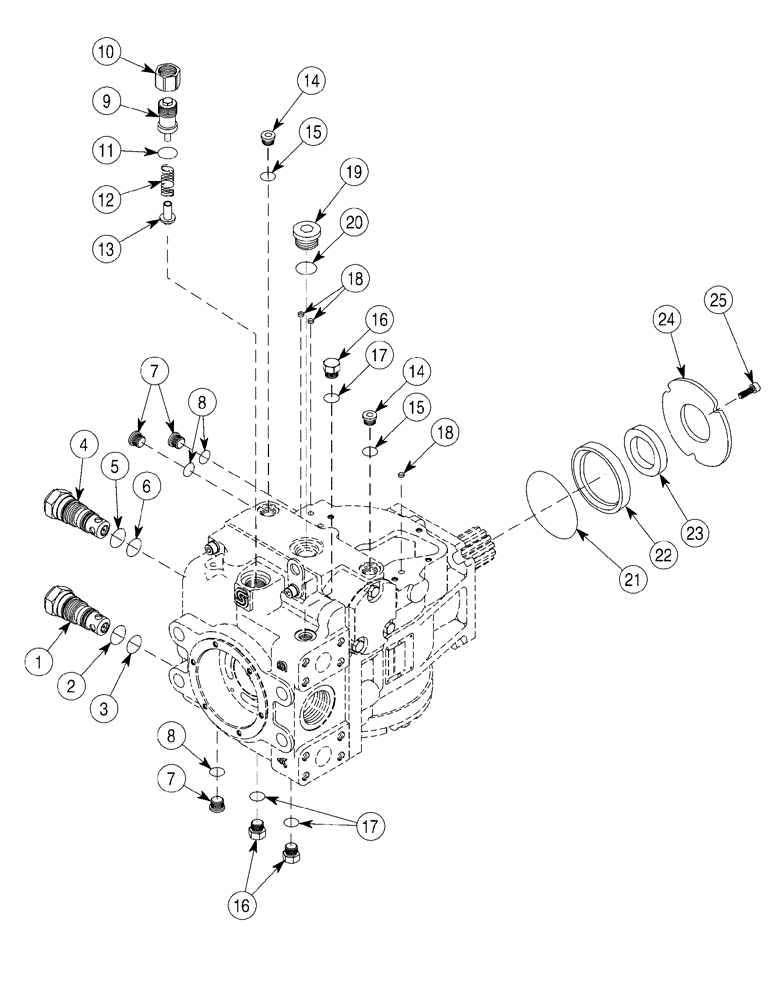

Запчасти Case 6030 (06-02) - PUMPS, FRONT AND REAR HYDROSTATIC VALVES AND PLUGS (06) - POWER TRAIN

Valves And Plugs

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Front, See Page(s) 6-3, Includes 1 - 25

1шт.

REF

INSTRUCTION

Pump, Hydrostatic, Rear, See Page(s) 6-3, Includes 1 - 25

1шт.

1

370483A1

VALVE

Thrust/Pullback, Front Pump Only, Includes 2, 3

1шт.

1

414349A1

VALVE

Rotation, Rear Pump Only, Includes 2, 3

1шт.

2

R15366

O-RING,7/8" ID x 1" OD x 1/16"

1шт.

3

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 2, 3

1шт.

Valves And Plugs

1шт.

4

370483A1

VALVE

Front Pump, Thrust/Pullback, Rear Pump, Rotation, Includes 5, 6

1шт.

5

R15366

O-RING,7/8" ID x 1" OD x 1/16"

1шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

3шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

414346A1

KIT

Charge Pressure, Front Pump Only, Includes 10 - 13

1шт.

9

105657A1

KIT

Charge Pressure, Rear Pump Only, Includes 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

Nut

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 5, 6, 11

1шт.

Valves And Plugs

1шт.

REF

INSTRUCTION

Valve, Relief, Charge Pressure, Front Or Rear Pump, Continued From Previous Page, Includes 10 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Front Pump Only

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Rear Pump Only

1шт.

13

NSS

NOT SOLD SEPARAT

Seat

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. 15

2шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

76349

PLUG,9/16" - 18 ORB

Incl. 17

3шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

105638A1

BAFFLE

3шт.

19

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Valves And Plugs

1шт.

105659A2

SUPPORT

Shaft, Includes 21 - 23

1шт.

21

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

23

105660A1

SEAL

1шт.

24

105661A1

LARGE PLATE

PLATE, LARGE , Retainer

1шт.

25

106555A1

SCREW

3шт.

105705A1

SEAL KIT

Front Or Rear Pump, Includes 21, 23

1шт.
