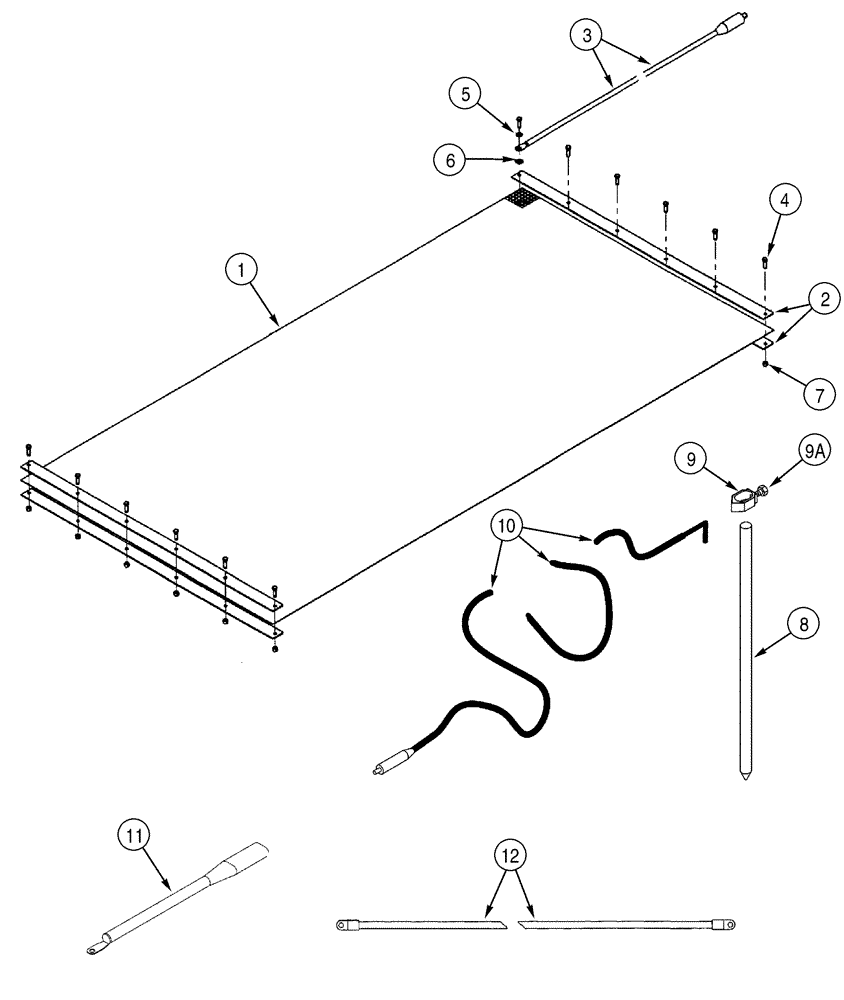

Запчасти Case 6030 (04-12) - GROUNDING COMPONENTS (04) - ELECTRICAL SYSTEMS

10060043

MAT

Grounding, Includes 1 - 7

1шт.

1

359143A1

MAT

1шт.

2

359144A1

PLATE

4шт.

3

359194A1

CABLE

1шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

12шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

6

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

7

231-1446

NUT,3/8" - 16, Gr 5

12шт.

10010143

ROD

Includes 8 - 10

1шт.

8

359196A1

SUPPORT

1шт.

9

359309A1

CLAMP

Includes 9A

1шт.

9a

NSS

NOT SOLD SEPARAT

Bolt, Brass

1шт.

10

359195A1

CABLE

1шт.

11

10060743

CABLE

2шт.

12

359370A2

CABLE

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

231-1448

NUT,1/2"-13, GB

1шт.

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

External Tooth Lock Washer

1шт.
