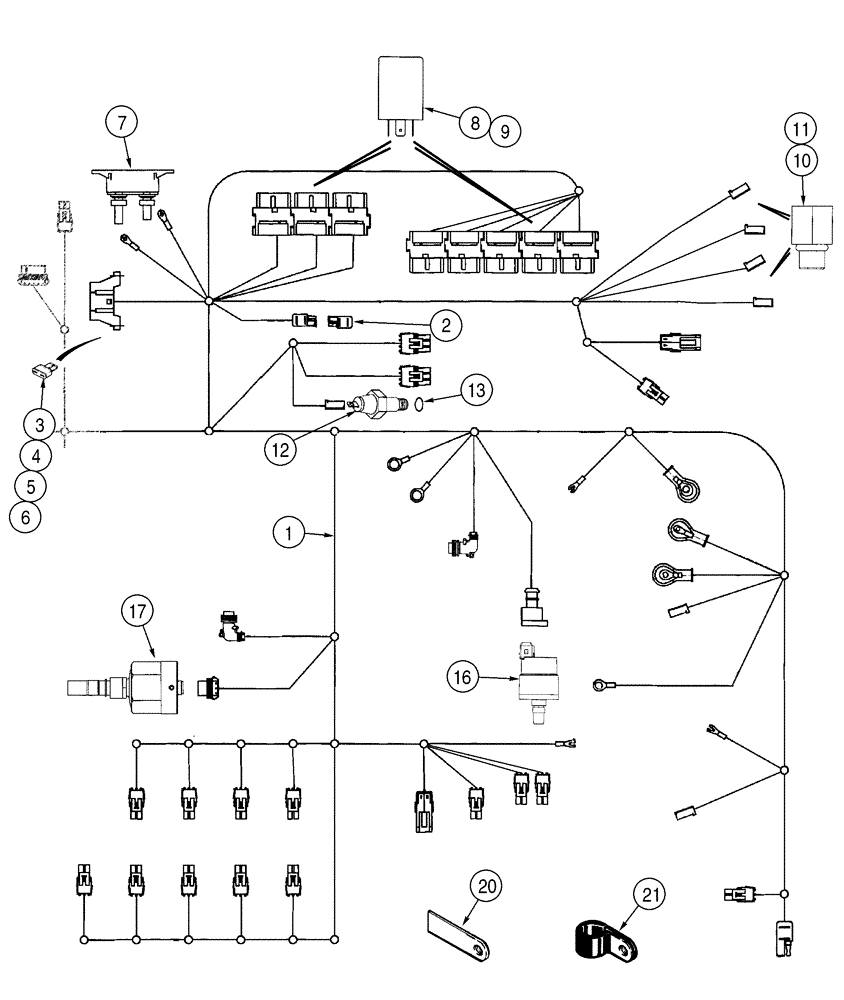

Запчасти Case 6030 (04-07) - HARNESS MAIN (04) - ELECTRICAL SYSTEMS

1

359353A4

HARNESS

Main, Includes 2, See Page(s) 4-17 - 4-23

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

1шт.

3

A149802

FUSE

1шт.

4

A149801

FUSE,Lt Blue, 15 Amp

2шт.

5

A149800

FUSE,10 Amp

3шт.

6

A149798

FUSE

2шт.

7

303884A1

BREAKER

1шт.

8

314451A1

RELAY

6шт.

9

388457A1

RELAY

Time Delay

1шт.

10

TX401150

SWITCH

Rotation Charge, Thrust Charge

2шт.

11

384085A1

ADAPTER

2шт.

12

277016A1

PRESSURE SWITCH

Engine Oil (Part number stamped on part), Includes 13

1шт.

13

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

14

116928A2

STARTING MOTOR

Not Illustrated, See Page(s) 4-3, 4-5

1шт.

15

A187873

ALTERNATOR,12V, 65A

Not Illustrated, See Page(s) 4-7

1шт.

15

A187873GV

ALTERNATOR

Value

1шт.

16

293797A1

RESTRICTION SWITCH

Air Filter

1шт.

17

361885A1

CONTROL

Feed And Speed, If Used, Used With 366012A1

1шт.

366012A1

CABLE ASSY.

Feed And Speed, Used With 17

1шт.

20

A37179

CLIP

Harness Mounting

6шт.

21

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

2шт.

21

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

1шт.
