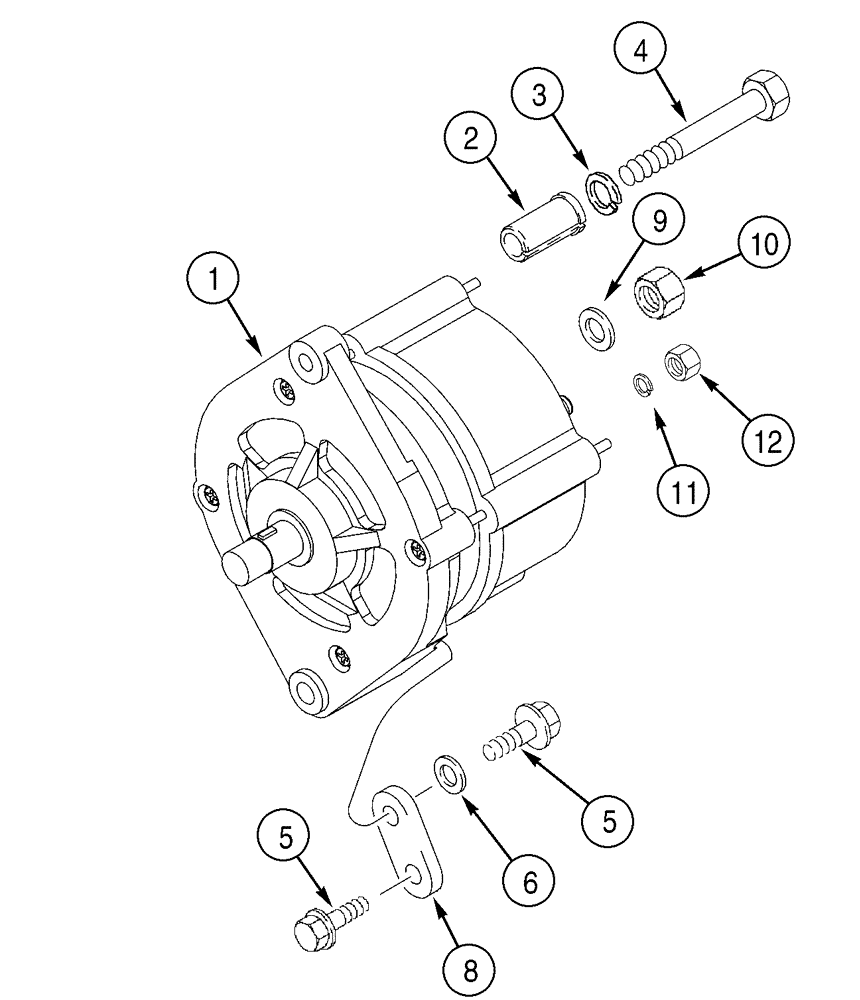

Запчасти Case 6030 (04-03) - MOUNTING ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

A187873

ALTERNATOR,12V, 65A

See Page(s) 4-7

1шт.

1

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

1

AC187873

CORE-ALTERNATOR

Return number

1шт.

1

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

2

J902469

SPACER

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

1шт.

5

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

6

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

1шт.

8

J903089

SUPPORT

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

825-1408

NUT,M8, Cl 8

1шт.

11

892-11005

LOCK WASHER,M5

1шт.

12

825-1405

NUT,M5, Cl 8

1шт.
