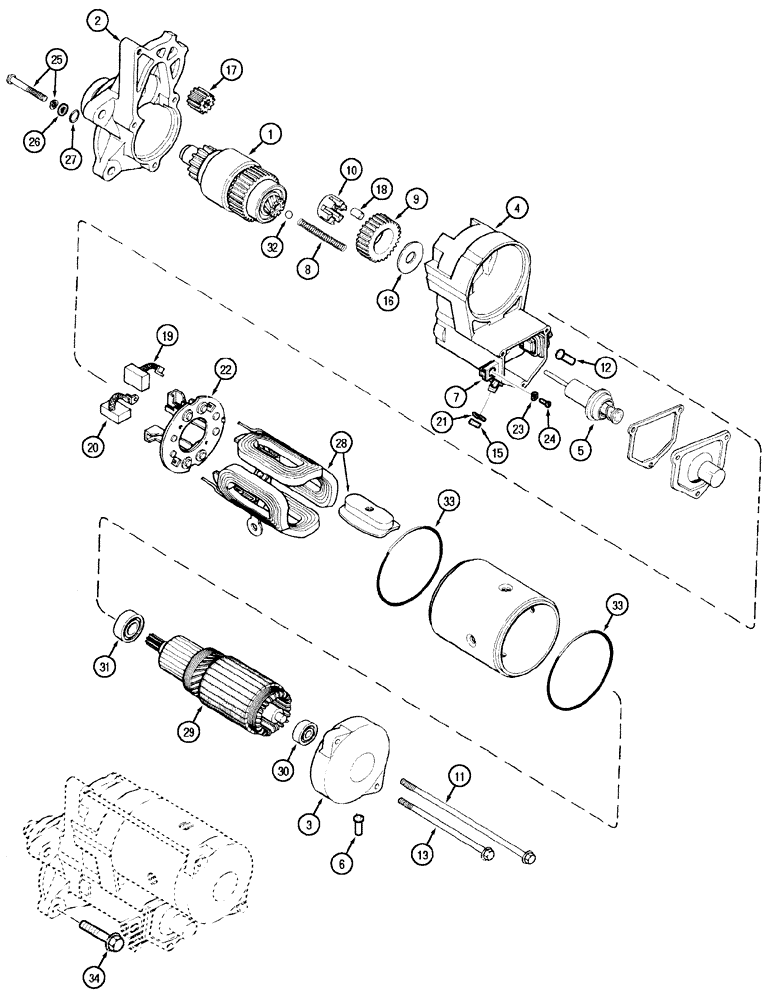

Запчасти Case 6030 (04-01) - STARTER (04) - ELECTRICAL SYSTEMS

116928A2

STARTING MOTOR

New, Consists Of 1 - 33

1шт.

116928A2R

REMAN-STARTER

Reman for New P/N 116928A2

1шт.

116928A2C

CORE-STARTER

Starter, Use To Return Core For Credit When Using a Remanufactured Assembly

1шт.

1

A187709

CLUTCH

1шт.

2

298257A1

HOUSING

1шт.

3

298255A1

HOUSING

1шт.

4

298256A1

SWITCH

Includes 5 - 7

1шт.

5

258874A1

PLUNGER

1шт.

6

141353A1

BUSHING

1шт.

7

258877A1

TERMINAL CONNECTOR

1шт.

8

A47232

SPRING

1шт.

9

A49810

GEAR

1шт.

10

A47236

RETAINER

1шт.

11

104593A1

FLANGE BOLT

1шт.

12

141355A1

COVER

1шт.

13

104594A1

FLANGE BOLT

1шт.

14

A47229

O-RING,2.4mm Thk x 47.2mm ID

Not Illustrated

1шт.

15

825-1410

NUT,M10, Cl 8

2шт.

16

A47234

WASHER

1шт.

17

A49809

PINION

1шт.

18

A47235

ROLLER BEARING

5шт.

19

A49807

COMMUTATOR BRUSH

2шт.

20

A49808

COMMUTATOR BRUSH

2шт.

21

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

1шт.

22

A49806

BRUSH HOLDER

1шт.

23

892-11005

LOCK WASHER,M5

1шт.

24

258820A1

SCREW

1шт.

A47230

BOLT

Consists Of 25 - 27

3шт.

25

NSS

NOT SOLD SEPARAT

Bolt

1шт.

26

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

27

332476A1

O-RING

1шт.

28

258884A1

YOKE

1шт.

29

258885A1

ARMATURE

Includes 30, 31

1шт.

30

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

1шт.

31

298254A1

BALL BEARING

1шт.

32

211-1011

BALL,11/32" Dia

1шт.

33

298253A1

SEAL,2.1mm Thk x 93mm ID

1шт.

34

868-10040

12 PT SCREW,M10 x 40mm, Cl 12.9

3шт.
