Запчасти Case 6030 (03-06) - FUEL INJECTION PUMP AND DRIVE 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

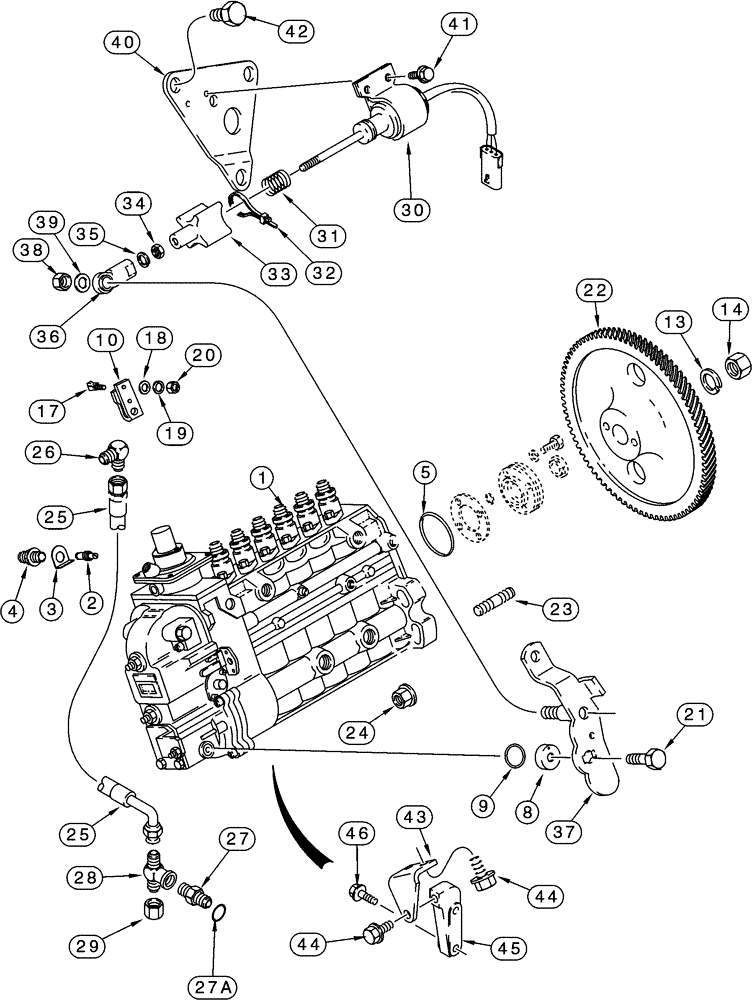

Схема запчастей Case 6030 - (03-06) - FUEL INJECTION PUMP AND DRIVE 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
19
17
20
33
5
2
31
41
38
45
21
26
32
27
29
43
40
25
3
25
35
8
42
44
4
24
27a
22
18
46
14
9
39
37
23
44
10
34
30
28
13
1
36

Артикул

Название

Примечание

Количество

*

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

J929409

PUMP, FUEL INJECTION

PUMP, INJECTION , Consists Of 2 - 21

1шт.

1

JR929409

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC929409

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

5

J935032

SEAL

1шт.

8

691292C1

RETAINER

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

1808728C1

LEVER

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

1шт.

23

J915036

STUD

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

*

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

*

Continued From Previous Page

1шт.

26

A77512

ELBOW

1шт.

27

J932321

UNION

Includes 27A

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

Consists Of 31 - 36

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

1шт.

*

J802998

PACKAGE,SERVICE

Consists Of 37, 38, 39

1шт.

37

NSS

NOT SOLD SEPARAT

Lever

1шт.

38

832-41306

NUT,M6 x 1, Cl 10

1шт.

39

J934022

WASHER

1шт.

40

J930589

SUPPORT

1шт.

41

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

42

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

3шт.

43

J863311

BRACE

1шт.

44

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

3шт.

45

J863312

BRACE

1шт.

46

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

Выбрано товаров: 47
