(03-05) - ANEROID AND WASTEGATE SYSTEM 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE

Запчасти Case 6030 (03-05) - ANEROID AND WASTEGATE SYSTEM 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

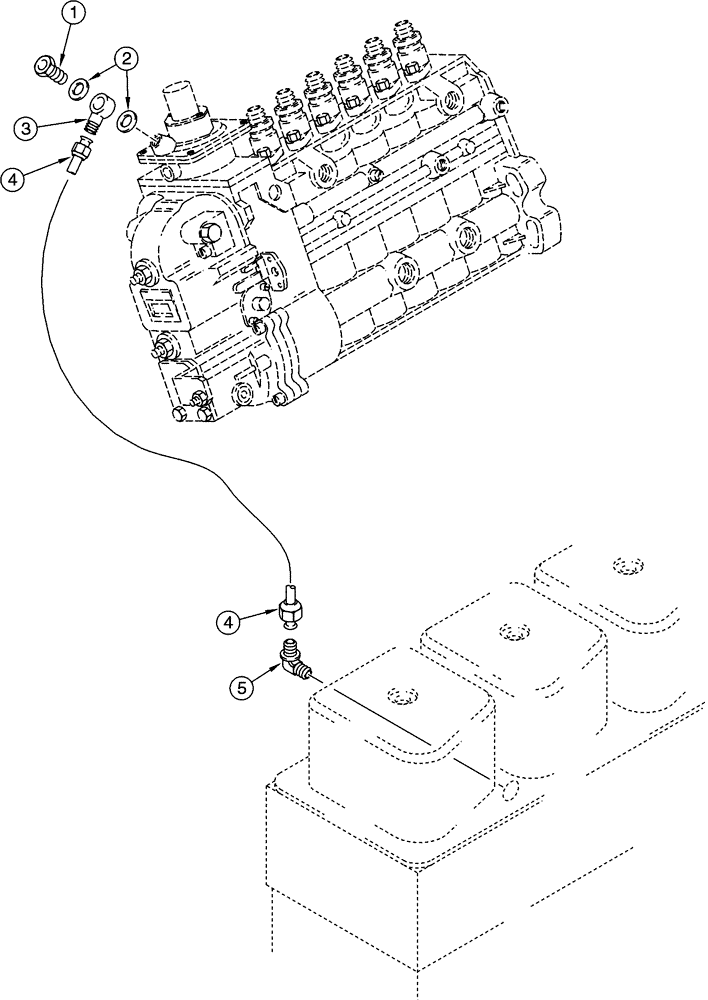

Схема запчастей Case 6030 - (03-05) - ANEROID AND WASTEGATE SYSTEM 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
4
2
3
1
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

J903035

BANJO BOLT

1шт.

2

J935171

SEALING WASHER

2шт.

3

J919644

FITTING

1шт.

4

J934608

TUBE,6.35 mm OD x 220 mm L

1шт.

5

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

Выбрано товаров: 6
