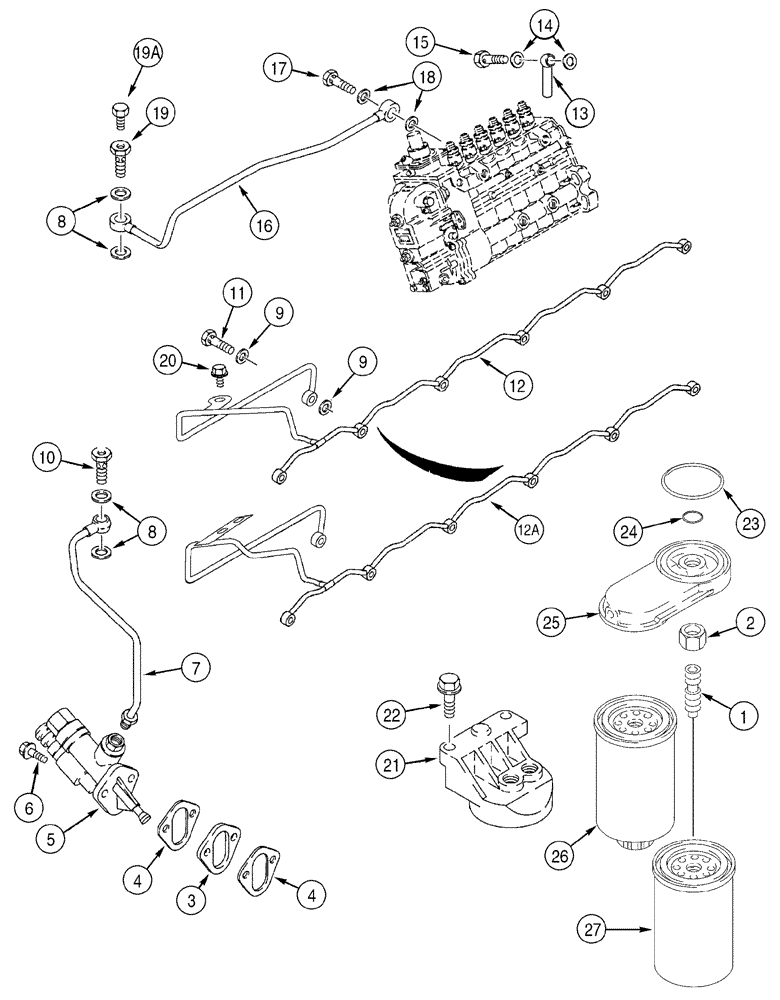

Запчасти Case 6030 (03-04) - FUEL FILTER PUMP, TRANSFER 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

1шт.

2

J903293

JAM NUT

1шт.

3

J914284

SPACER

1шт.

4

J931059

GASKET

2шт.

5

J933252

FEED PUMP

1шт.

6

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

2шт.

7

J928423

FUEL TUBE,8 mm OD x 323.9 mm L

1шт.

8

J935171

SEALING WASHER

4шт.

9

J918187

PACKING RING

2шт.

10

J916361

BANJO BOLT

1шт.

11

J905307

BANJO BOLT,M6 x 1 x 14.30mm

1шт.

12

J284343

MANIFOLD

No Longer Used, Order 12A

1шт.

12a

J284476

MANIFOLD

1шт.

13

J911447

CONNECTOR, ELEC

CONNECTOR

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

2шт.

15

J932096

VALVE

1шт.

16

J930733

FUEL TUBE,8 mm OD

1шт.

17

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

18

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

2шт.

J905860

BANJO BOLT

Consists Of 19, 19A

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

1шт.

19a

NSS

NOT SOLD SEPARAT

Screw

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

21

J930969

CAP

1шт.

22

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

23

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING

1шт.

24

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING

1шт.

25

J897331

SUPPORT

1шт.

A77470

SEPARATOR

Includes 26, 27

1шт.

26

J930942

SEPARATOR

Primary

1шт.

27

J931063

FUEL FILTER

Secondary

1шт.
