Запчасти Case 6030 (03-03) - FUEL INJECTION SYSTEM 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

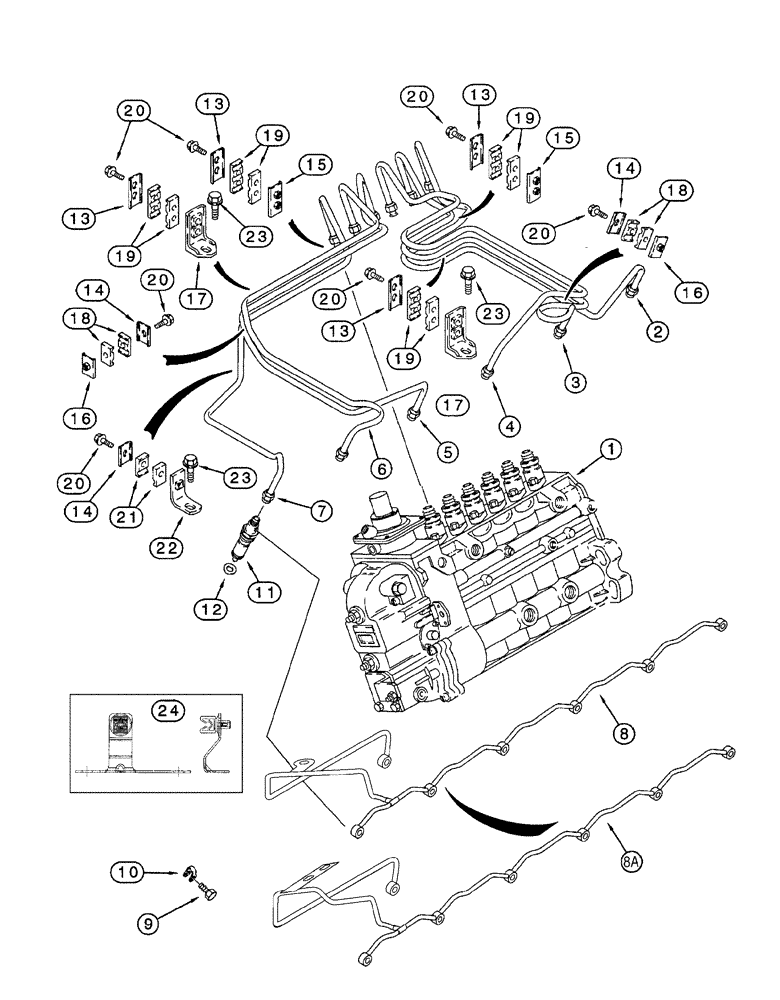

Схема запчастей Case 6030 - (03-03) - FUEL INJECTION SYSTEM 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
13
13
4
20
13
17
18
12
17
11
19
8a
10
18
20
20
23
16
19
14
13
23
21
23
15
24
19
1
20
8
15
19
6
7
20
14
3
9
2
5
14
20
22
16

Артикул

Название

Примечание

Количество

*

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

J929409

PUMP, FUEL INJECTION

PUMP, INJECTION , See Page(s) 3-13

1шт.

1

JR929490

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

1шт.

1

JC929490

CORE-FUEL INJECTOR

Return Number, INJECTION NOZZLE

1шт.

2

J929462

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

1шт.

3

J929463

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

1шт.

4

J929464

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

1шт.

5

J929465

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

1шт.

6

J929466

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

1шт.

7

J932495

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 787 mm L

1шт.

8

J284343

MANIFOLD

No Longer Used, Order 8A

1шт.

8a

J284476

MANIFOLD

1шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

6шт.

10

J903380

SEAL

6шт.

11

J929490

NOZZLE INJECTION

See Page(s) 3-17

6шт.

12

J906659

SEAL

6шт.

13

J904519

SUPPORT

4шт.

14

CURJ904711

CLAMP

3шт.

15

J917716

BRACE

2шт.

16

J917717

BRACE

2шт.

17

J282942

BRACKET

2шт.

18

J917746

CLAMP

4шт.

19

J917747

CLAMP

8шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

11шт.

21

J919359

CLAMP

2шт.

22

J940840

BRACE

1шт.

23

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

24

J284865

TUBE

No Longer Required

1шт.

Выбрано товаров: 28
