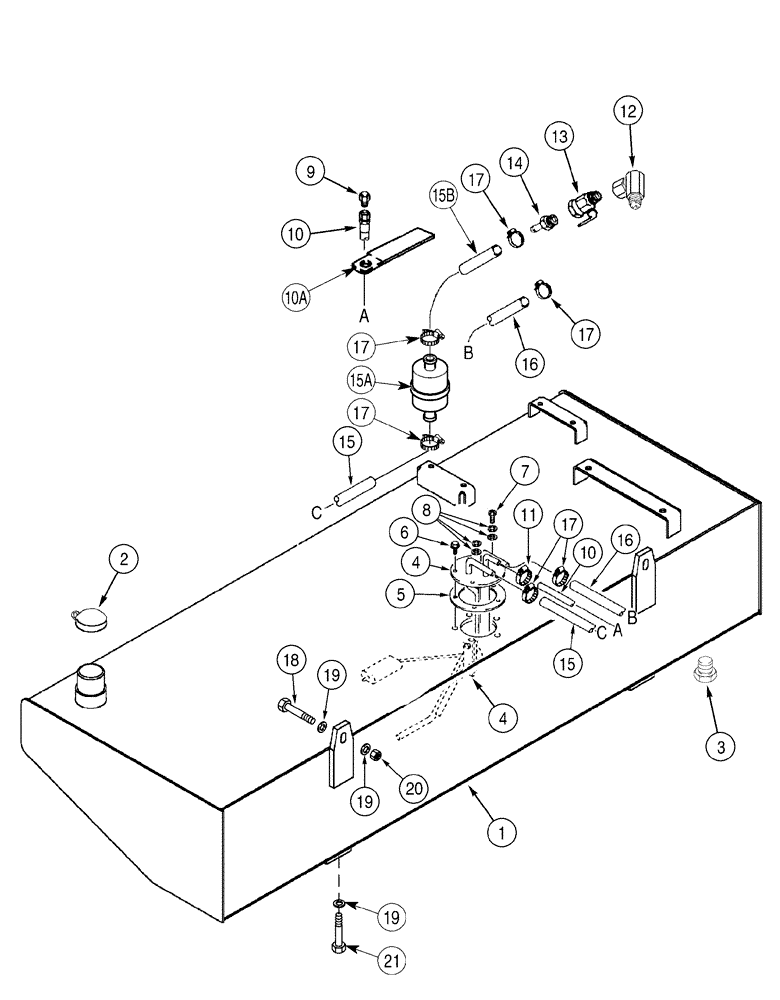

Запчасти Case 6030 (03-02) - FUEL LINES RESERVOIR (03) - FUEL SYSTEM

1

329376A2

TANK

Replaces 329376A1

1шт.

2

130049A1

FILLER CAP

1шт.

3

217-414

PLUG,Hex Hd, 3/4" - 14 NPT

1шт.

4

357702A1

SENDER UNIT

SENDER

1шт.

5

188311A2

GASKET,2.38mm Thk

1шт.

6

D75465

SCREW,#10 - 32 x 5/8"

4шт.

7

190-100

SCREW,Cross Pan Hd, #10 - 32 x 5/8"

1шт.

8

D83885

WASHER

Copper

4шт.

9

130047A1

BREATHER ASSY.

1шт.

10

130046A1

HOSE

Vent

1шт.

10a

A37179

CLIP

1шт.

11

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

12

218-923

ELBOW,90 Degree, 1/2" NPTF Male x 3/8" NPSM Fem Sw

1шт.

13

284721A1

VALVE

No Longer Required

1шт.

14

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

15

243560A1

FUEL HOSE,12.70 mm ID x 1900.00 mm , SAE 30R2

Supply

1шт.

15a

194199A1

FUEL FILTER

In Line

1шт.

15b

428469A1

FUEL HOSE,12.70 mm ID x 83.00 mm, SAE 30R2

Cut from S118466

1шт.

16

384026A1

FUEL HOSE,9.53 mm ID x 1700.00 mm, SAE 30R6 or SAE 30R7

Cut from S118466

1шт.

17

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

6шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

20

231-1448

NUT,1/2"-13, GB

2шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Use Loctite No. 242

2шт.

B17422

LOCTITE

1шт.
