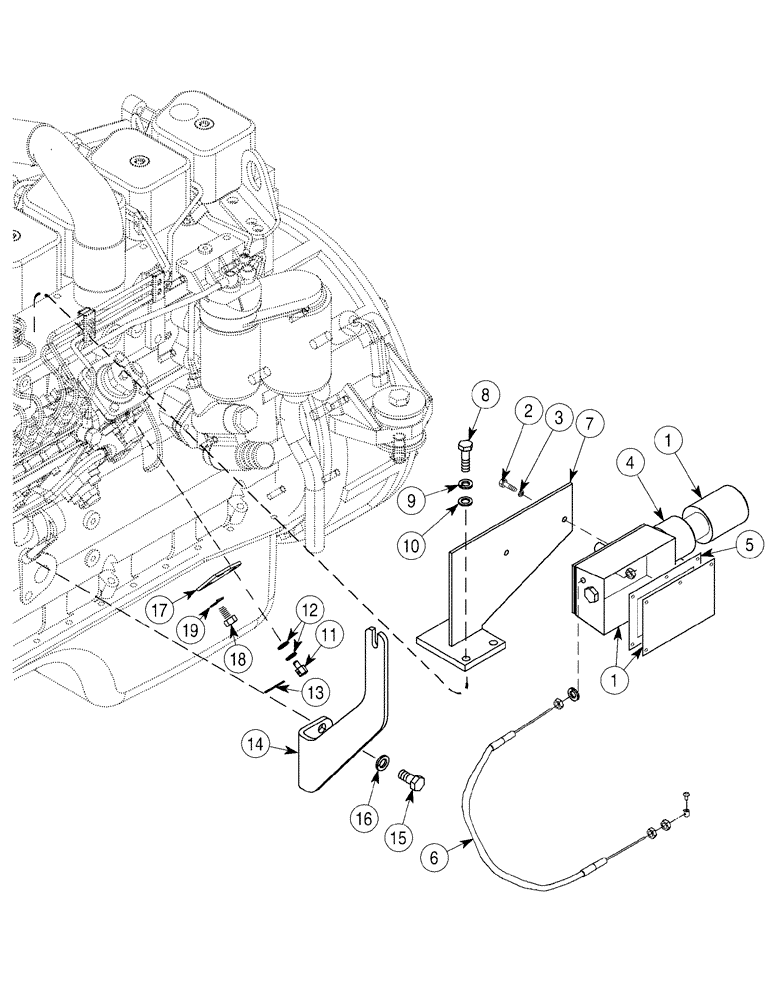

Запчасти Case 6030 (03-01) - CONTROLS THROTTLE (03) - FUEL SYSTEM

1

284848A1

ACTUATOR

Throttle, Electric, Includes 2 - 6, 284862A1

1шт.

2

NSS

NOT SOLD SEPARAT

1/4 x 1/2, Bolt

2шт.

3

NSS

NOT SOLD SEPARAT

Washer

2шт.

4

284864A1

GEAR

1шт.

5

284872A1

GASKET

1шт.

6

284866A1

CABLE

Push/Pull Cable

1шт.

284862A1

BOARD

Circuit, With Gasket

1шт.

7

348828A1

BRACKET

1шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

9

892-11010

LOCK WASHER,M10

3шт.

11

H327494

JOINT TURNING

1шт.

12

496-21028

WASHER,.281" x 5/8" x .075", HDN

2шт.

13

432-616

COTTER PIN,3/32" x 1"

1шт.

14

348904A1

BRACKET

1шт.

15

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

16

892-11012

LOCK WASHER,M12

2шт.

17

348922A1

PLATE

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

19

892-11006

LOCK WASHER,M6

2шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.
