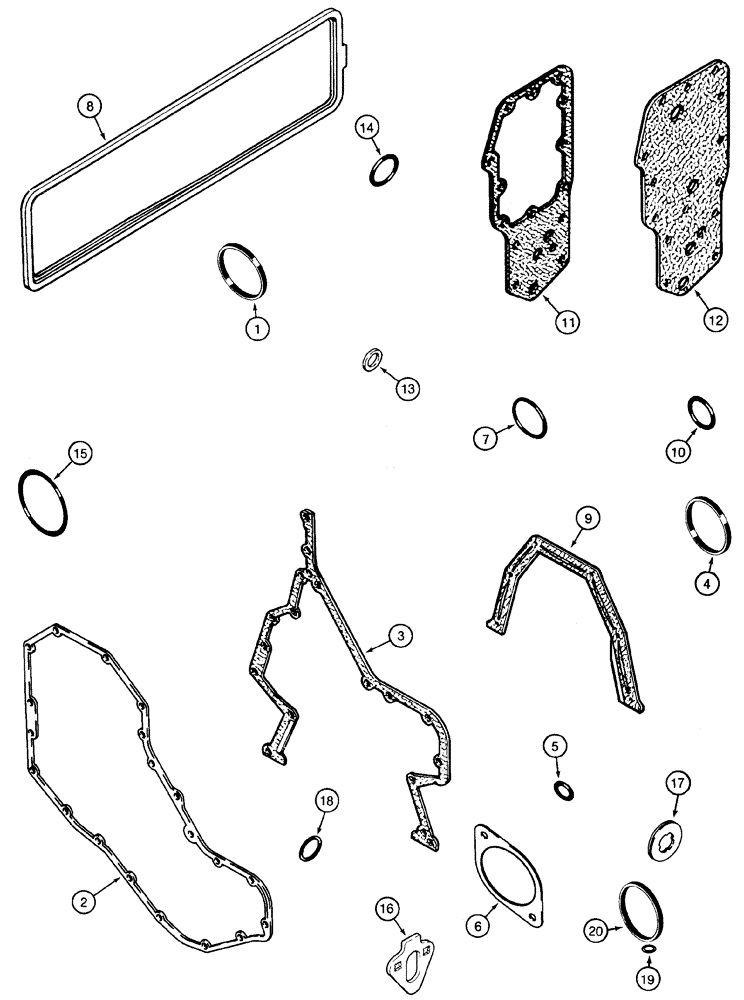

Запчасти Case 6030 (02-21) - GASKET KIT 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE CYLINDER BLOCK (02) - ENGINE

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

A77868

SEAL PACKAGE

Consists Of 1 - 20

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-19

1шт.

2

J918673

GASKET,1.02mm Thk

See Page(s) 2-19

1шт.

3

J931351

GASKET

See Page(s) 2-19

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING , See Page(s) 2-19

1шт.

5

J913994

O-RING

See Page(s) 2-19

1шт.

6

J929751

GASKET

See Page(s) 2-19

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

See Page(s) 2-17

1шт.

8

J928832

GASKET

See Page(s) 2-47

1шт.

9

J928493

GASKET

See Page(s) 2-51

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

See Page(s) 2-47

1шт.

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

Continued From Previous Page

1шт.

Cylinder Block

1шт.

11

J942914

GASKET

See Page(s) 2-27

1шт.

12

J929792

GASKET,1.2mm Thk

See Page(s) 2-27

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-29

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Not Used In This Application

1шт.

15

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , See Page(s) 2-57

1шт.

16

J931059

GASKET

See Page(s) 3-9

1шт.

17

J928759

SEALING WASHER

See Page(s) 2-45

8шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Page(s) 2-57

1шт.

19

J929457

O-RING

See Page(s) 2-27

1шт.

20

J935032

SEAL

See Page(s) 3-13

1шт.
