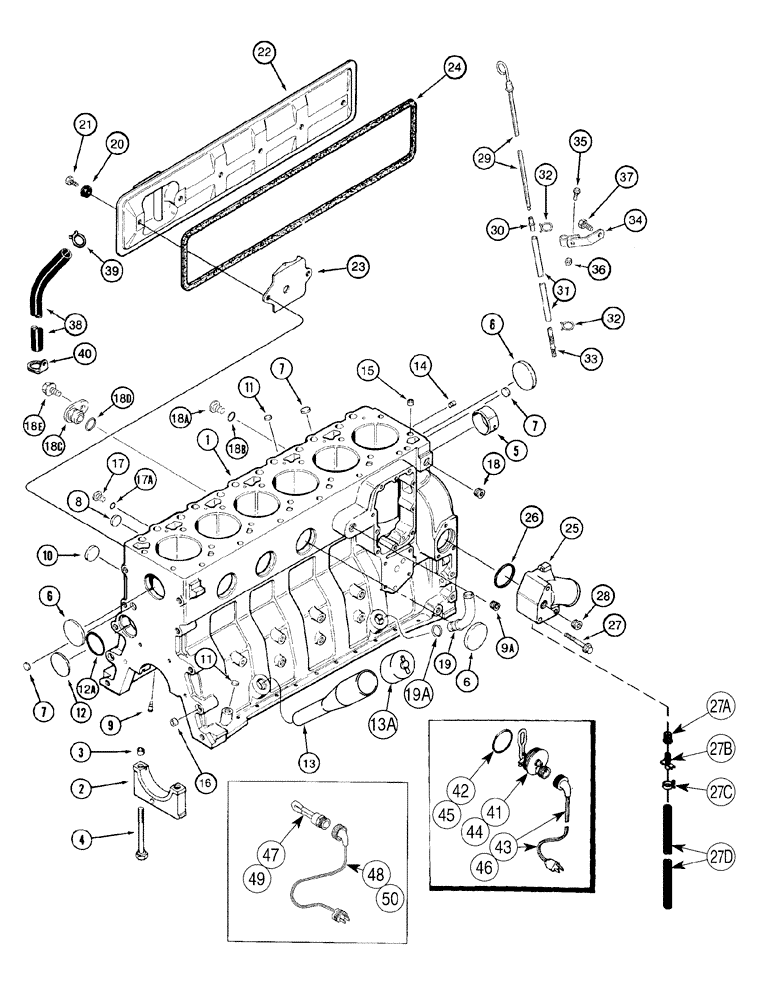

Запчасти Case 6030 (02-16) - CYLINDER BLOCK 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

.

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

341024A1

Complete Engine, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 246148A2

1шт.

246148A2

BASIC ENGINE

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

.

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

246148A2R

REMAN-BASIC ENGINE

1шт.

246148A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

J933645

SKELETON ENGINE

Short, With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of 1 - 8

1шт.

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

1

J933712

CYLINDER BLOCK

Stripped, Consists Of 2 - 8, Order J933220, See Page(s) 2-45

1шт.

2

J903492

BEARING CAP

Includes J900068

7шт.

3

J900068

BEARING WASHER

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

5

REF

INSTRUCTION

Bushing, Front, See Page(s) 2-39

1шт.

6

A77782

PLUG

6шт.

7

J900956

PLUG

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

.

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

J933220

PACKAGE,SERVICE

Includes 9 - 18D

1шт.

9

J930139

NOZZLE CAP

6шт.

9a

A77505

PLUG

1шт.

10

J900958

PLUG

1шт.

11

J900955

PLUG

3шт.

12

172599

PLUG,Exp, 2 3/8"

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

1шт.

13

J935619

TUBE,22.42-30.43 mm OD x 190 mm L

1шт.

13a

A77424

FILLER CAP

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

2шт.

15

J902343

DOWEL

2шт.

16

J900068

BEARING WASHER

2шт.

17

J678923

PLUG,M10 x 1

Includes 17A

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

1шт.

18a

J678921

PLUG

Includes 18B

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

18c

J932296

PLUG

Includes 18D

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

18e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

19

J931973

TUBE,0.875" OD

Used With J931824

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

22

J927913

COVER

1шт.

.

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

23

J907586

BAFFLE

Also Order J823494

1шт.

23a

J823494

SEALANT

Not Illustrated

1шт.

24

J928832

GASKET

1шт.

25

J934877

HYD CONNECTOR

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

27

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

27a

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

27b

H434809

COCK, DRAIN

For Service, Order 217-92

1шт.

27c

A171099

HOSE CLAMP,13.2mm - 15.4mm

1шт.

27d

114514A1

HOSE,9.65 mm ID x 600.00 mm

1шт.

28

A77429

PLUG

Not Used In This Application

1шт.

29

J907681

DIPSTICK

1шт.

30

J905802

FITTING,9.53 mm OD x 39 mm L

1шт.

31

J905801

TUBE

Without Metal Ends, No Longer Used, Order J285960

1шт.

31

J285960

TUBE,9.7 mm ID x 12.7 mm OD

With Metal Ends

1шт.

32

214-1308

HOSE CLAMP,#8, 1/2", Spring

2шт.

33

J908308

TUBE,9.52 mm OD x 124.1, 44 mm L

1шт.

34

J908498

BRACE

1шт.

35

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

36

825-1408

NUT,M8, Cl 8

1шт.

37

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

1шт.

.

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

38

J918614

TUBE,435.00 mm

1шт.

39

J904230

CLAMP,25.4mm

1шт.

40

J928989

CLIP

Engine Block Heater

1шт.

196803A1

KIT

Consists Of 41 - 43, engine block heater

1шт.

41

NSS

NOT SOLD SEPARAT

Element, engine block heater

1шт.

42

J910517

O-RING

engine block heater

1шт.

43

196466A1

ELECTRIC CABLE

engine block heater

1шт.

H674985

SERVICE KIT

Consists Of 44 - 46, engine block heater

1шт.

44

NSS

NOT SOLD SEPARAT

Element, engine block heater

1шт.

45

NSS

NOT SOLD SEPARAT

O-Ring, engine block heater

1шт.

46

112837A1

PLUG

engine block heater

1шт.

309651A1

KIT

Consists Of 47, 48, engine block heater

1шт.

47

NSS

NOT SOLD SEPARAT

Element, Replaces A77505, engine block heater

1шт.

48

196466A1

ELECTRIC CABLE

engine block heater

1шт.

309652A1

KIT

Consists Of 49, 50, engine block heater

1шт.

49

NSS

NOT SOLD SEPARAT

Element, engine block heater

1шт.

50

J905114

ELECTRIC CABLE

engine block heater

1шт.

,

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

,

Repair Kit

1шт.

A77886

PACKAGE, REPAIR

Engine Block, Not Illustrated, Consists Of 51 - 58, repair kit

1шт.

51

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Page(s) 2-59, repair kit

6шт.

52

J919053

PISTON PIN

See page(s) 2-59, Repair Kit

6шт.

53

A77465

BEARING SET

See Page(s) 2-63, repair kit

6шт.

54

A77405

CRANKSHAFT BEARING

See Page(s) 2-51, repair kit

6шт.

55

A77896

BEARING SET

See Page(s) 2-53, repair kit

1шт.

56

A77925

GASKET KIT

See Page(s) 2-65, repair kit

1шт.

57

J283335

GASKET,2.32mm Thk

See Page(s) 2-31, repair kit

1шт.

58

A77676

GASKET KIT

See Page(s) 2-29, repair kit

1шт.
