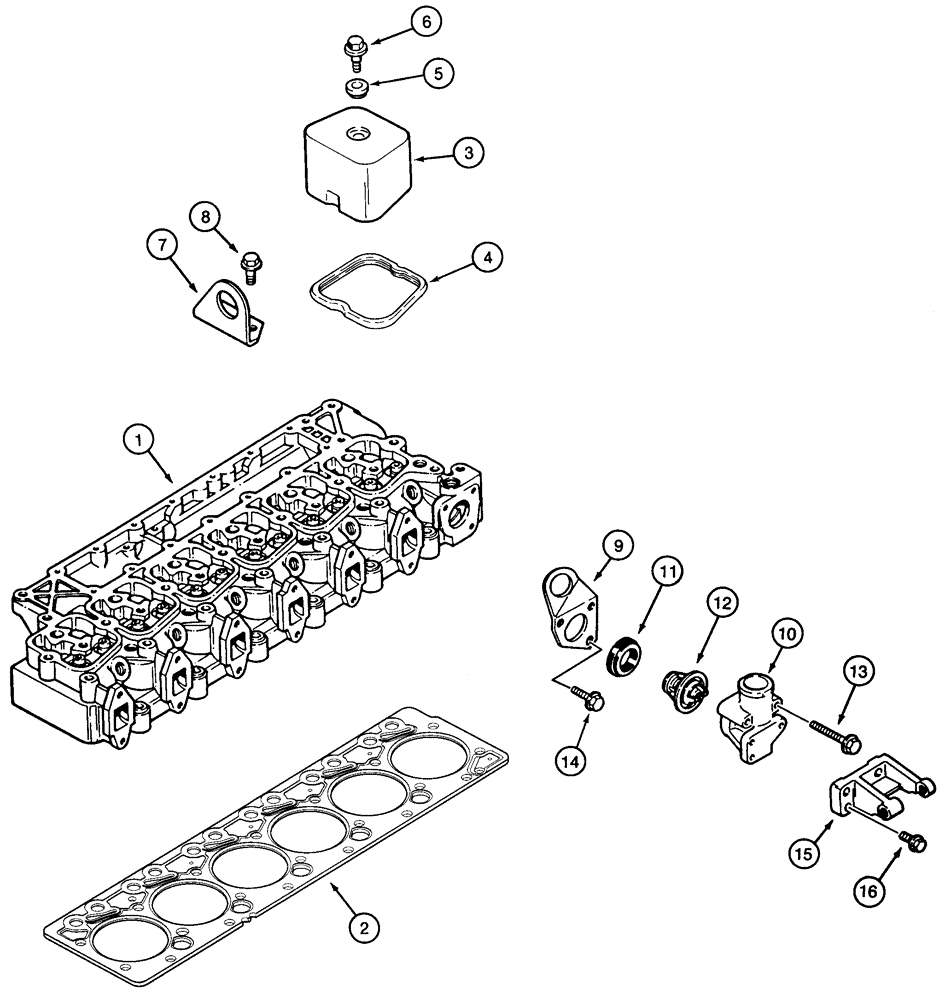

Запчасти Case 6030 (02-13) - CYLINDER HEAD COVER 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Head, See Page(s) 2-33

1шт.

2

J283335

GASKET,2.32mm Thk

1шт.

2

J283337

GASKET,2.24mm Thk

1шт.

2

J283339

GASKET

1шт.

3

J928404

COVER

6шт.

4

J930906

GASKET

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

6

J907049

BOLT,Hex

6шт.

7

J908118

BRACKET

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

Thermostat and Housing

2шт.

9

J903757

BRACKET

thermostat and housing

1шт.

10

J914409

HOUSING

thermostat and housing

1шт.

A77736

THERMOSTAT

Thermostat, Consists Of 11, 12, and housing

1шт.

11

J923331

GASKET

thermostat and housing

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat, and housing

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

Thermostat and housing

1шт.

15

J923387

SUPPORT

thermostat and housing

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Thermostat and Housing

3шт.
