Запчасти Case 6030 (02-11) - FILTER AND COOLER OIL 6T-590 EPA TIER 2 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

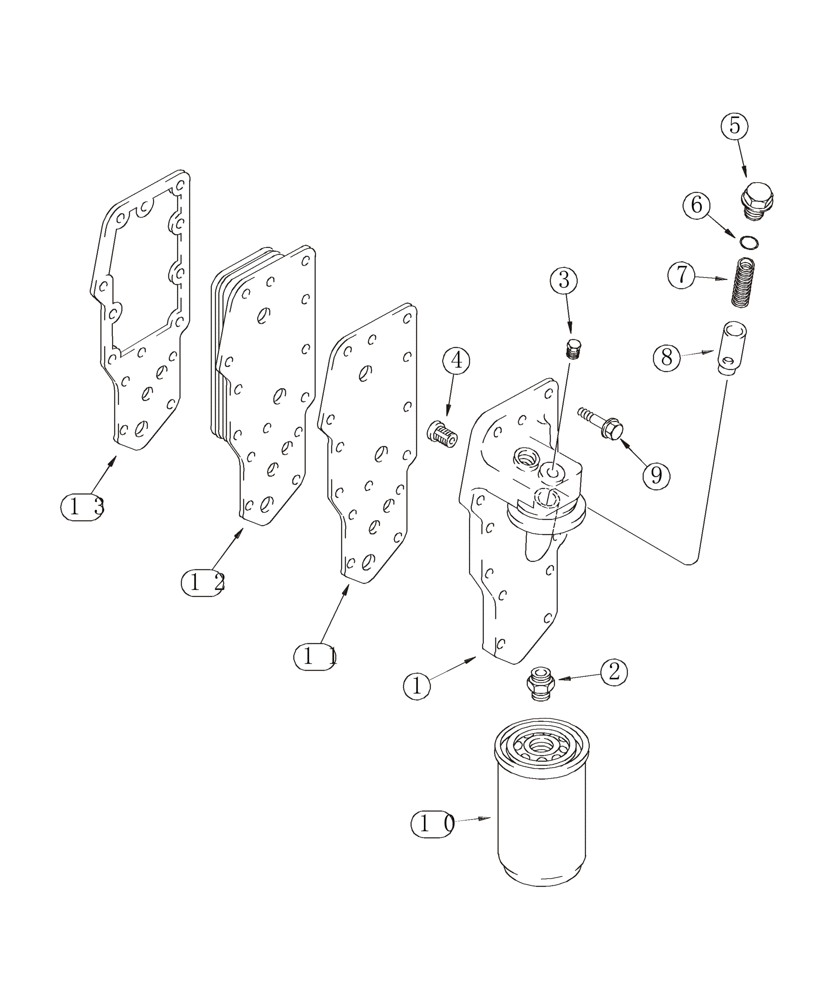

Схема запчастей Case 6030 - (02-11) - FILTER AND COOLER OIL 6T-590 EPA TIER 2 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
13
1
8
7
9
3
10
11
5
6
4
2
12

Артикул

Название

Примечание

Количество

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

J918954

HEAD

Consists Of 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

J909355

ADAPTER

1шт.

3

J906619

PLUG,1/8" - 27

1шт.

4

J933615

VALVE

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

1шт.

7

J925009

SPRING

1шт.

8

J918428

PLUNGER

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J937743

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J937743MP

1шт.

10

J934430

ENGINE OIL FILTER

Premium

1шт.

11

J929792

GASKET,1.2mm Thk

1шт.

12

J921558

COOLER

1шт.

13

J942914

GASKET

1шт.

Выбрано товаров: 16
