(02-10) - TURBOCHARGER ASSY AT-590 EPA TIER 2 EMISSIONS CERTIFIED ENGINE

Запчасти Case 6030 (02-10) - TURBOCHARGER ASSY AT-590 EPA TIER 2 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

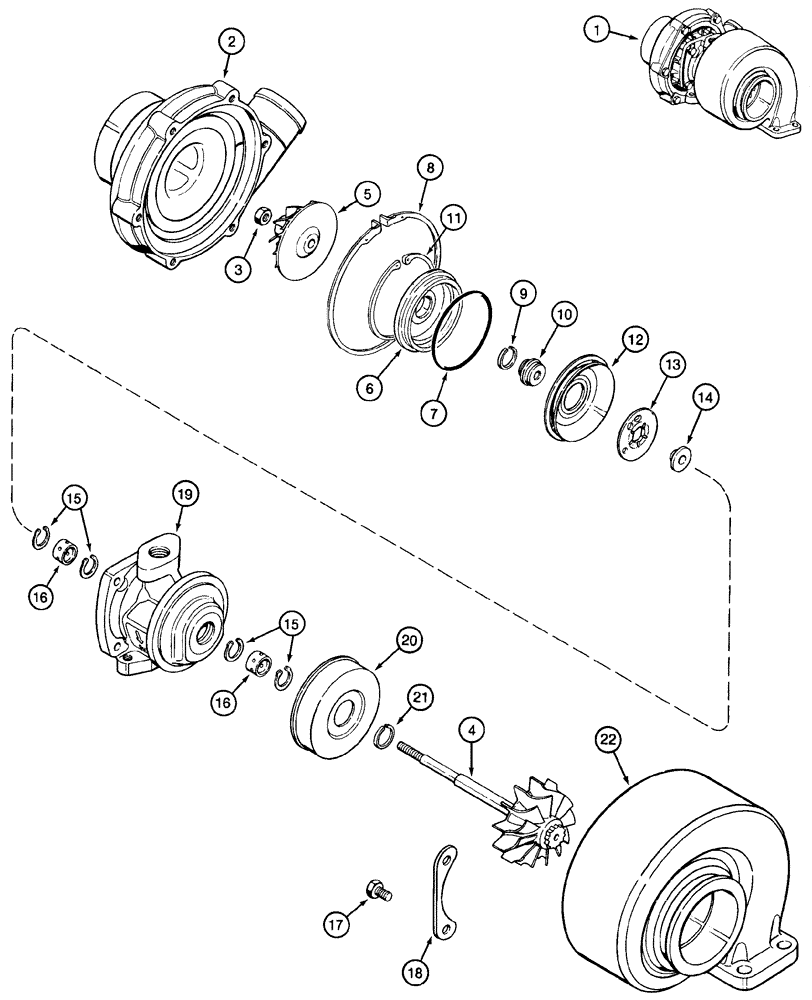

Схема запчастей Case 6030 - (02-10) - TURBOCHARGER ASSY AT-590 EPA TIER 2 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
4
16
6
18
7
16
13
5
3
8
12
2
17
11
21
20
22
10
19
15
14
15
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

*

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

J802770

TURBOCHARGER

Consists Of J709861, J519807, 2 - 22

1шт.

1

JR802770

REMAN-TURBOCHARGER

6030

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

J533163

SNAP RING

1шт.

5

J501188

PLATE

2шт.

6

J759917

SET SCREW

4шт.

J575217

HOUSING

Consists Of 7 - 22

1шт.

7

NSS

NOT SOLD SEPARAT

Nut

1шт.

8

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Impeller

1шт.

10

NSS

NOT SOLD SEPARAT

Plate

1шт.

J575169

REPAIR KIT

Turbocharger, Overhaul, Consists Of 6, 7, 8, 11, 12, 14, 15, 16, 18, 19

1шт.

*

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

*

Continued From Previous Page

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Slinger

1шт.

14

NSS

NOT SOLD SEPARAT

Ring

1шт.

15

NSS

NOT SOLD SEPARAT

Baffle

1шт.

16

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

17

NSS

NOT SOLD SEPARAT

Collar

1шт.

18

NSS

NOT SOLD SEPARAT

Ring

4шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

NSS

NOT SOLD SEPARAT

Shield

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

J575169

REPAIR KIT

Turbocharger, Overhaul, Consists Of 6, 7, 8, 11, 12, 14, 15, 16, 18, 19

1шт.
