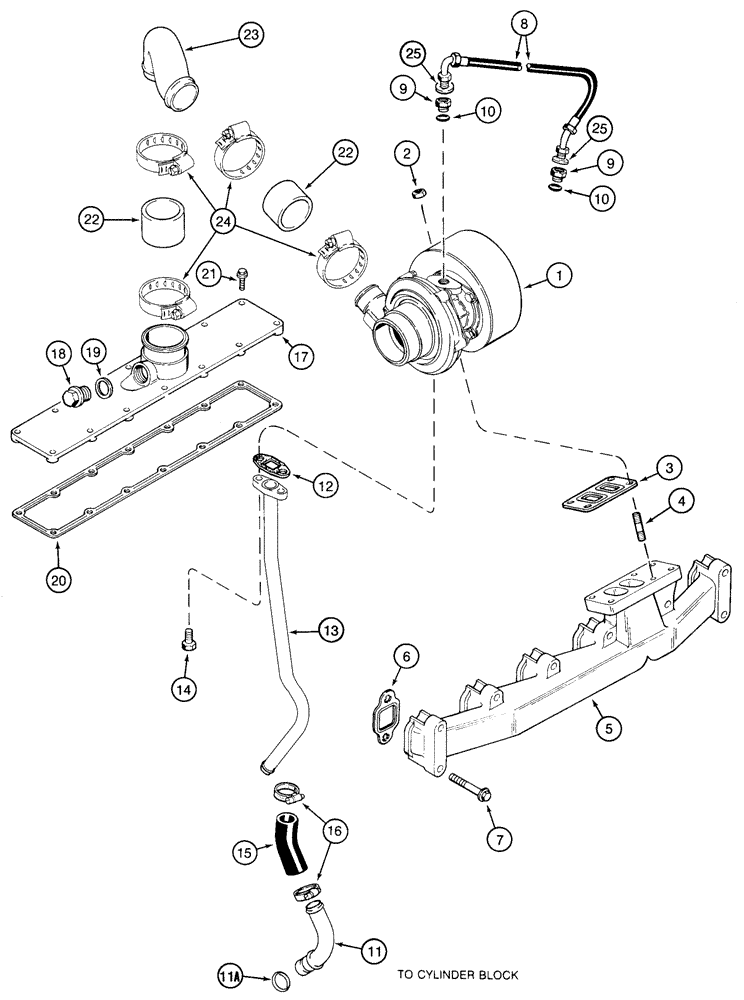

Запчасти Case 6030 (02-09) - TURBOCHARGER SYSTEM 6T-590 EPA TIER 1 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

6T-590 EPA Tier 1 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Turbocharger, See Page(s) 2-23

1шт.

2

J818824

FLANGE NUT

4шт.

3

J919369

GASKET,0.5mm Thk

1шт.

4

J818823

STUD

4шт.

5

J931747

MANIFOLD

1шт.

6

J927154

GASKET,0.38mm Thk

6шт.

7

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

12шт.

8

J918562

HOSE

1шт.

9

J919687

HYD CONNECTOR

Includes 10

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

11

J931973

TUBE,0.875" OD

Used With J931824

1шт.

11a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

12

J285747

GASKET

1шт.

13

J934093

TUBE

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

15

J931970

HOSE,22.22 mm ID x 76.20 mm

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

A77418

KIT

Consists Of 17, 18, 19

1шт.

17

J904862

COVER

1шт.

18

J907185

PLUG

1шт.

19

J906773

WASHER

1шт.

20

J931347

GASKET

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

14шт.

22

J931805

INTAKE AIR HOSE

2шт.

23

J931453

TUBE,63.5 mm OD x 254.77 mm L

1шт.

24

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

4шт.

25

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
