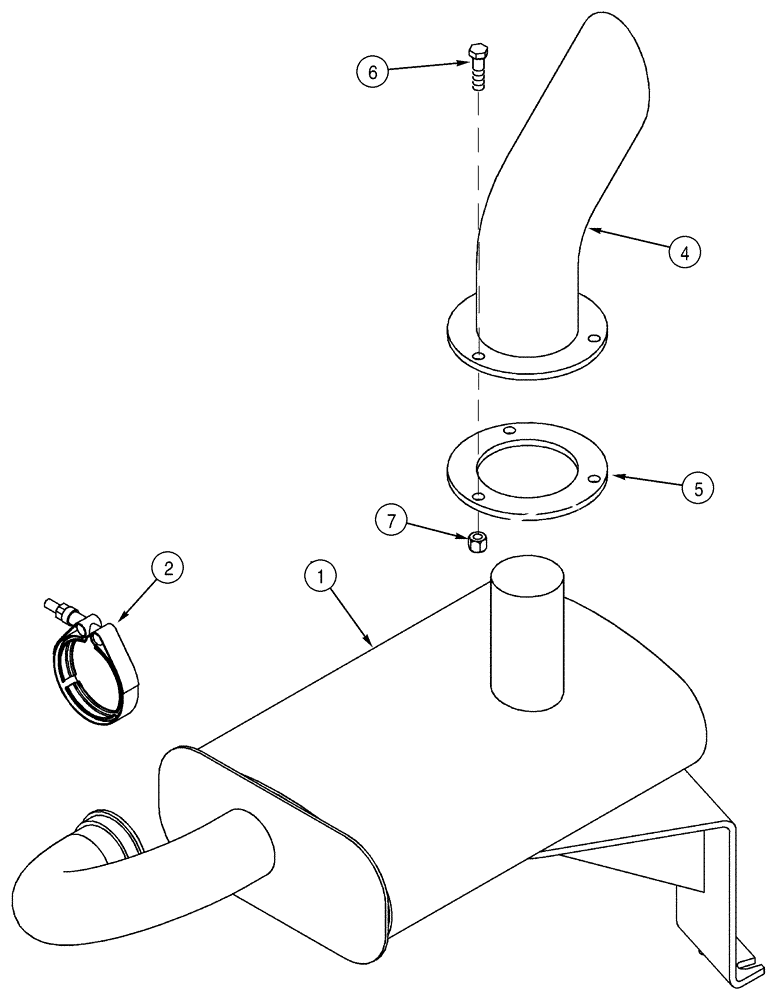

Запчасти Case 6030 (02-06) - MUFFLER EXHAUST SYSTEM (02) - ENGINE

1

353952A3

MUFFLER

Replaces 353952A2

1шт.

2

A170467

CLAMP,72mm ID

1шт.

4

304811A1

EXTENSION,88.9 mm ID, 139.7 mm OD, 287.2 mm Length

Exhaust

1шт.

1

87381264

TUBE,88.9 mm OD x 268, 63.5 mm L

Replaces 304811A1

1шт.

5

247026A1

LARGE PLATE

PLATE, LARGE

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

231-1446

NUT,3/8" - 16, Gr 5

3шт.
