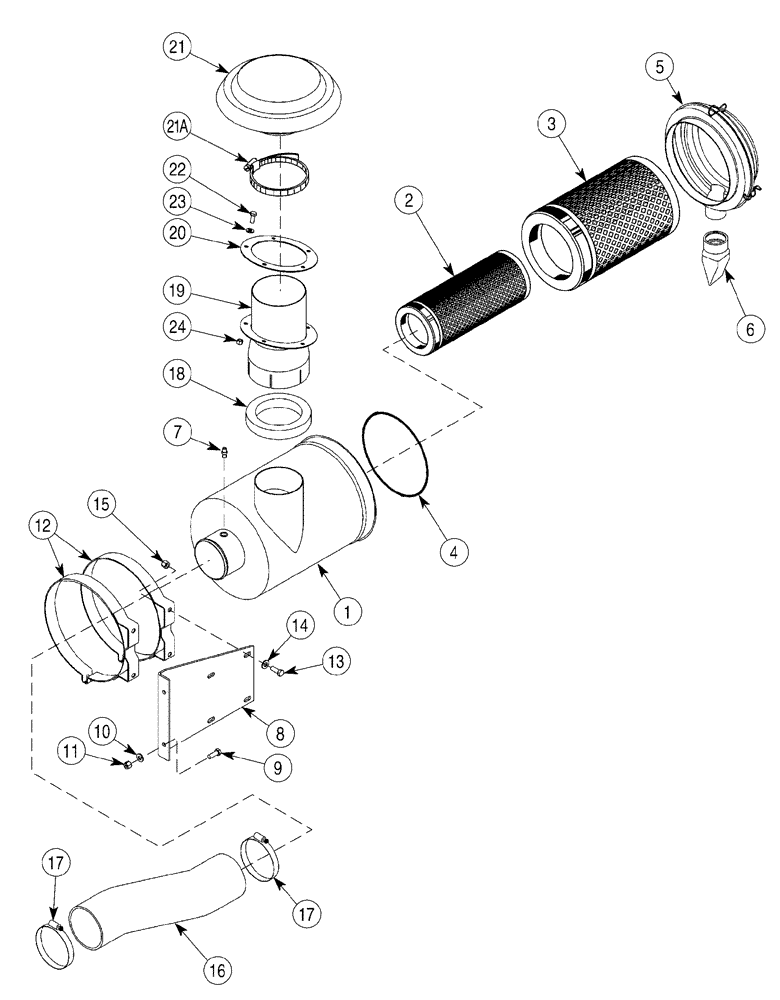

Запчасти Case 6030 (02-05) - AIR CLEANER MOUNTING (02) - ENGINE

240553A2

FILTER ASSY

Consists Of 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

187472A1

AIR FILTER

Secondary

1шт.

3

187471A1

ELEMENT

Primary

1шт.

4

251827A1

O-RING

1шт.

5

225266A1

COVER

1шт.

6

A184939

VALVE

1шт.

7

D36264

FITTING

1шт.

8

382444A1

BRACKET

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

11

231-1446

NUT,3/8" - 16, Gr 5

2шт.

12

A16574

BAND

2шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

15

231-1446

NUT,3/8" - 16, Gr 5

4шт.

16

348827A1

HOSE

1шт.

17

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

2шт.

18

R43072

NOISE PROTECTION

1шт.

19

382647A1

SUPPORT TUBE

Intake

1шт.

20

382621A1

RING

1шт.

21

54-305

CAP

Includes 21A

1шт.

21a

NSS

NOT SOLD SEPARAT

Clamp

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

23

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

5шт.

24

231-1445

NUT,5/16"-18, GB

5шт.
