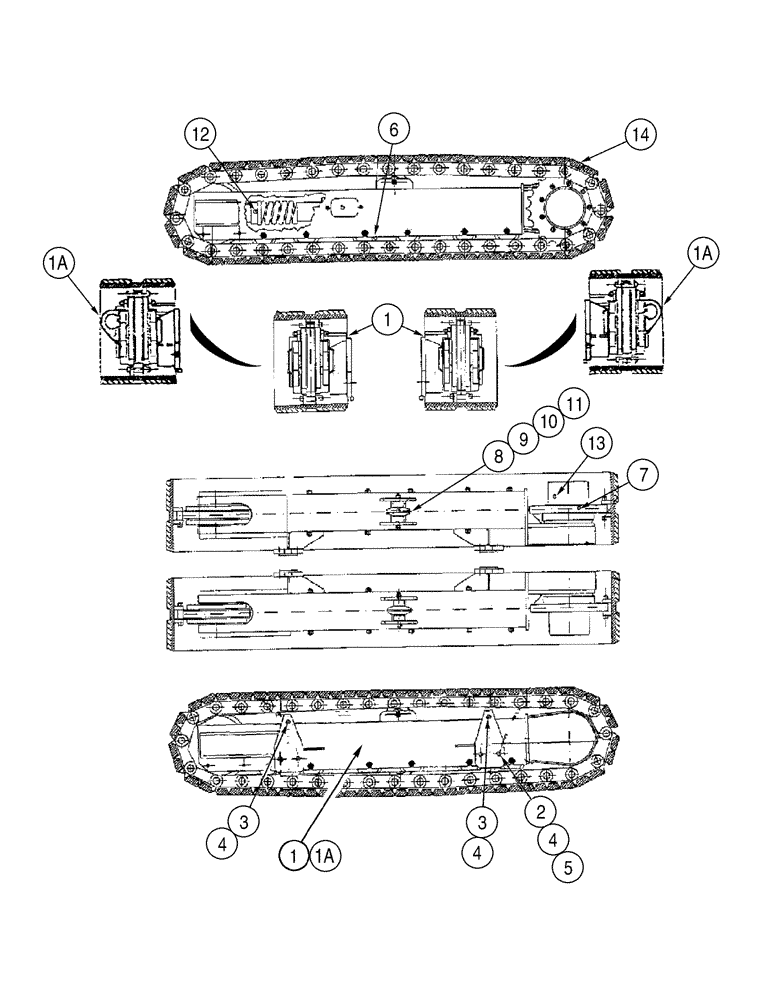

Запчасти Case 6030 (05-01) - UNDERCARRIAGE TRACK (11) - TRACKS/STEERING

1

334727A1

Track, Consists Of 6 - 16, No Longer Available, Order Components

1шт.

1a

334727A2

Track, Consists Of 6 - 16, Order Components

1шт.

2

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

Chassis Frame to Undercarriage

8шт.

3

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Chassis Frame to Undercarriage

4шт.

4

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

20шт.

5

231-14412

LOCK NUT,3/4"-10, GB

8шт.

6

388330A1

ROLLER ASSY.

Complete

1шт.

7

388331A1

SPROCKET ASSY.

1шт.

388332A1

ROLLER ASSY.

Consists Of 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

Roller

2шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Roller

4шт.

10

NSS

NOT SOLD SEPARAT

Pin

2шт.

11

NSS

NOT SOLD SEPARAT

Scraper

4шт.

12

388333A1

FRONT IDLER

Track Tension

1шт.

13

419012A1

DRIVE ASSY.

Track Drive, Complete, See Page(s) 5-5 - 5-15

1шт.

14

388335A1

TRACK ASSY

Steel

1шт.

15

404308A1

SEAL KIT

Component Parts Not Serviced Separately, Not Illustrated

1шт.

16

404309A1

SEAL KIT

Component Parts Not Serviced Separately, Not Illustrated

1шт.
