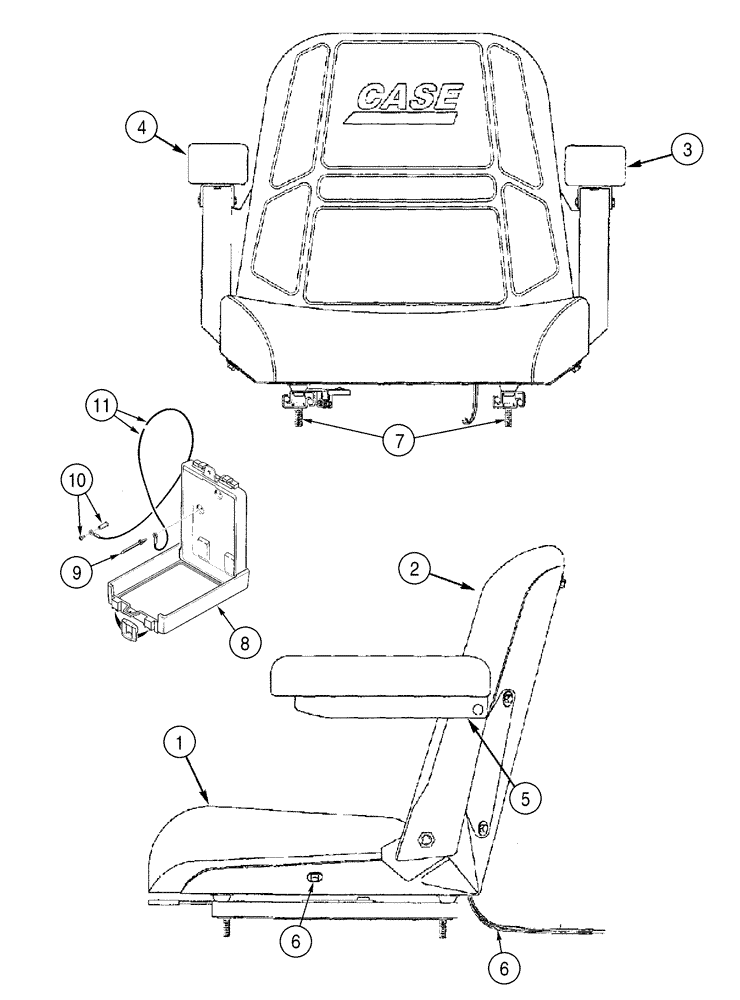

Запчасти Case 6030 (09-21) - SEAT, OPERATOR (09) - CHASSIS/ATTACHMENTS

300752A1

SEAT

Operator, Consists Of 1 - 7

1шт.

1

320974A1

CUSHION

Includes 6

1шт.

2

320975A1

CUSHION

1шт.

3

320976A1

ARM

Armrest, Left Hand

1шт.

4

370432A1

ARMREST

Armrest, Right Hand

1шт.

5

370433A1

KIT

Armrests With Brackets

1шт.

6

370434A1

SWITCH

Seat, Order 320974A1

1шт.

7

370435A1

SET

Set Of Two

1шт.

8

R46464

CASE

1шт.

9

151-522

RIVET,Pop, 3/16" x .575"

3шт.

10

R46463

SCREW,0.18" x 0.75"

Manual Retention

1шт.

11

R46465

CABLE,36mm L

Manual Retention

1шт.
