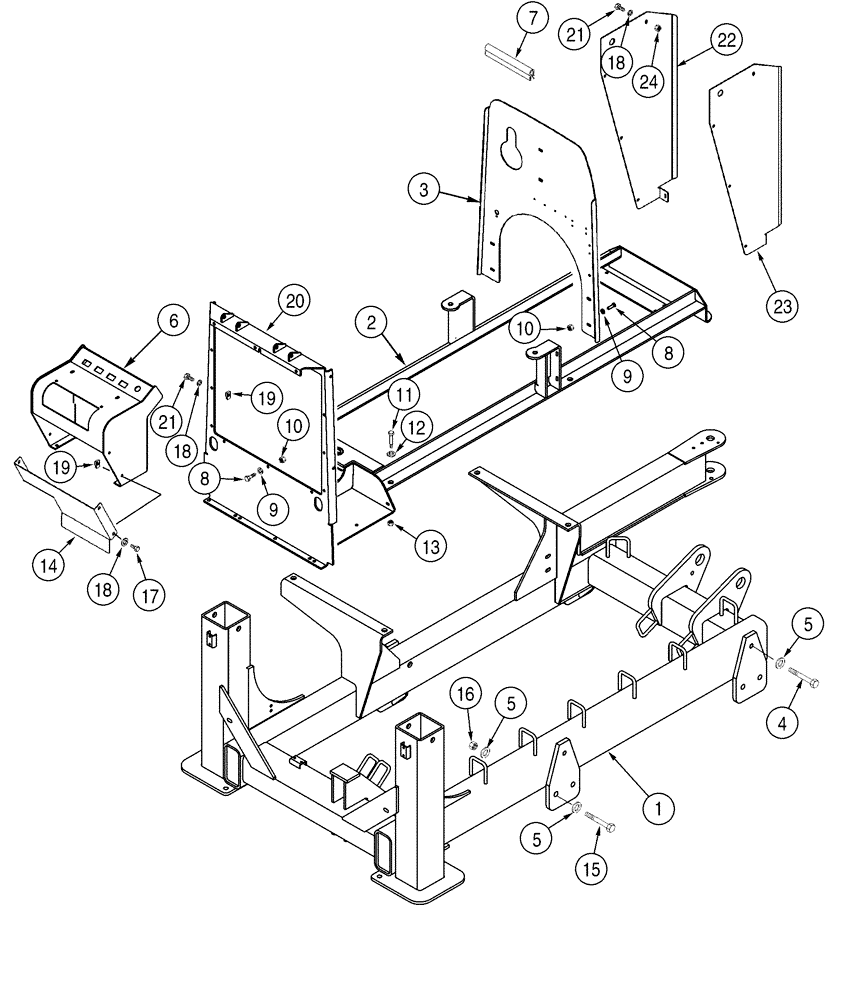

Запчасти Case 6030 (09-17) - CHASSIS COVERS (09) - CHASSIS/ATTACHMENTS

1

329352A4

FRAME

Replaces 329352A3

1шт.

2

329398A4

FRAME

Engine, Replaces 329398A3

1шт.

3

339291A3

PLATE

1шт.

4

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

5

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

20шт.

6

339343A3

CONSOLE

Rear Console

1шт.

7

376123A1

SEAL

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

10шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

14шт.

10

231-1446

NUT,3/8" - 16, Gr 5

10шт.

11

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

12

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

4шт.

13

232-41112

NUT,3/4"-10, GC

4шт.

14

377423A3

COVER

Access, Console

1шт.

15

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

8шт.

16

231-14412

LOCK NUT,3/4"-10, GB

8шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

14шт.

19

H346650

NUT

14шт.

20

380475A3

MOUNTING PARTS

Radiator

1шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

22

378376A1

PANEL

Fan, Left Hand

1шт.

23

381653A1

PANEL

Fan, Right Hand

1шт.

24

231-1445

NUT,5/16"-18, GB

4шт.
