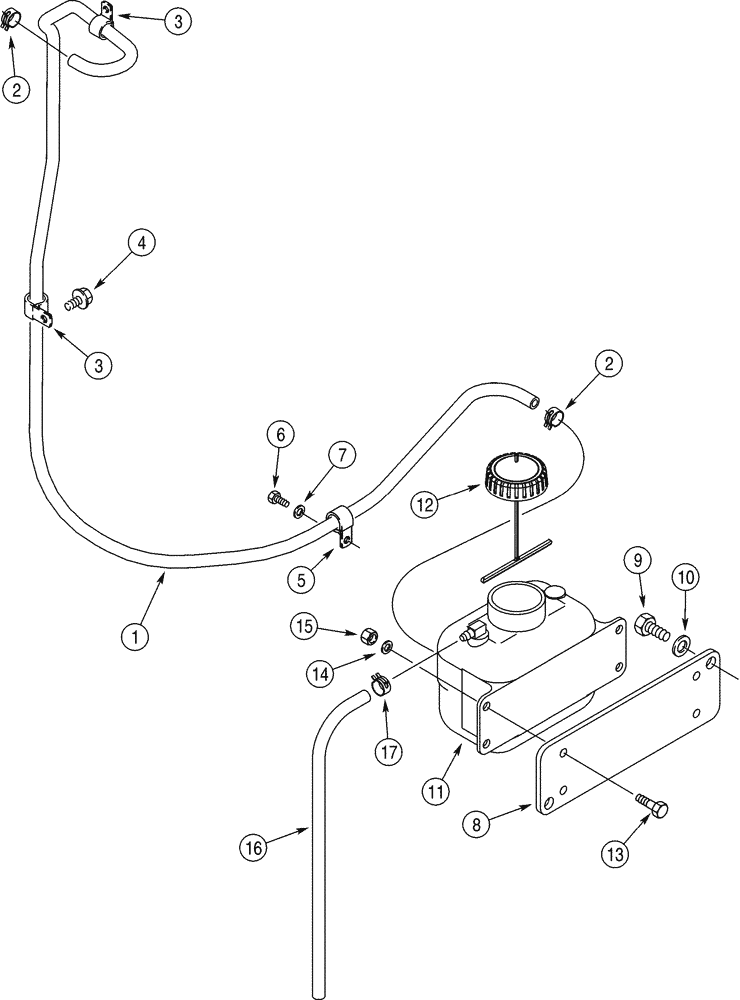

Запчасти Case 6030 (02-03) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

371049A1

LARGE HOSE,7.94 mm ID x 1664.00 mm, SAE 3 OR 2 TYPE 1

HOSE,LARGE , Coolant Recovery

1шт.

2

A171099

HOSE CLAMP,13.2mm - 15.4mm

Hose

2шт.

3

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

4

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

5

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

6

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

7

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

8

348906A1

PLATE

1шт.

9

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

10

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

11

138189A1

RESERVOIR

Coolant Recovery

1шт.

12

A184079

CAP

1шт.

13

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

15

231-1445

NUT,5/16"-18, GB

4шт.

16

131067A2

HOSE

Coolant Overflow

1шт.

17

A171099

HOSE CLAMP,13.2mm - 15.4mm

Hose

1шт.
