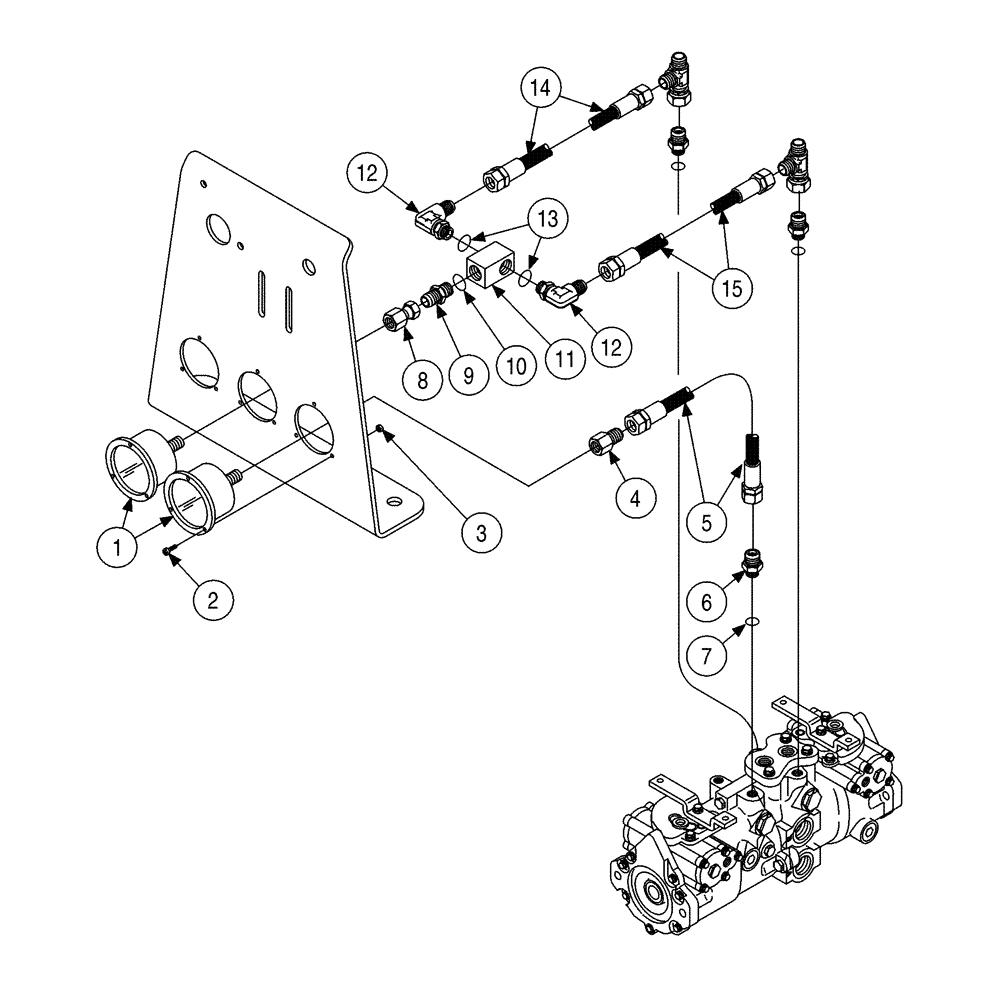

Запчасти Case 6010 (06-10) - GAUGES - DRILL ROTATION AND THRUST/PULLBACK (55) - ELECTRICAL SYSTEMS

1

TX472185

GAUGE

Includes: 389603A1

2шт.

389603A1

SCREW

2шт.

2

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

6шт.

3

193-1003

NUT,Keps, w/LW,#6-32

External Tooth

6шт.

4

218-1032

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, Fem Pipe

7/16 fl x 1/4 fem PT

1шт.

5

365539A1

HOSE

965 mm, Drill Rotation Gauge

1шт.

6

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 7

1шт.

8

218-1562

HYD CONNECTOR,37 Degree, Sw, 7/16"-20 x 1/4"-18 NPTF

PT

1шт.

9

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 10

2шт.

11

30012211

VALVE

manifold

1шт.

30012211

VALVE

manifold

1шт.

12

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

90°, 7/16 fl x 9/16 or, Includes: 13

2шт.

14

365541A1

HOSE

1070 mm, Thrust/Pullback Gauge, For Attaching Parts, See figure 6-03, REF 17

1шт.

15

365541A1

HOSE

1070 mm, Thrust/Pullback Gauge, For Attaching Parts, See figure 6-03, REF 18

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
