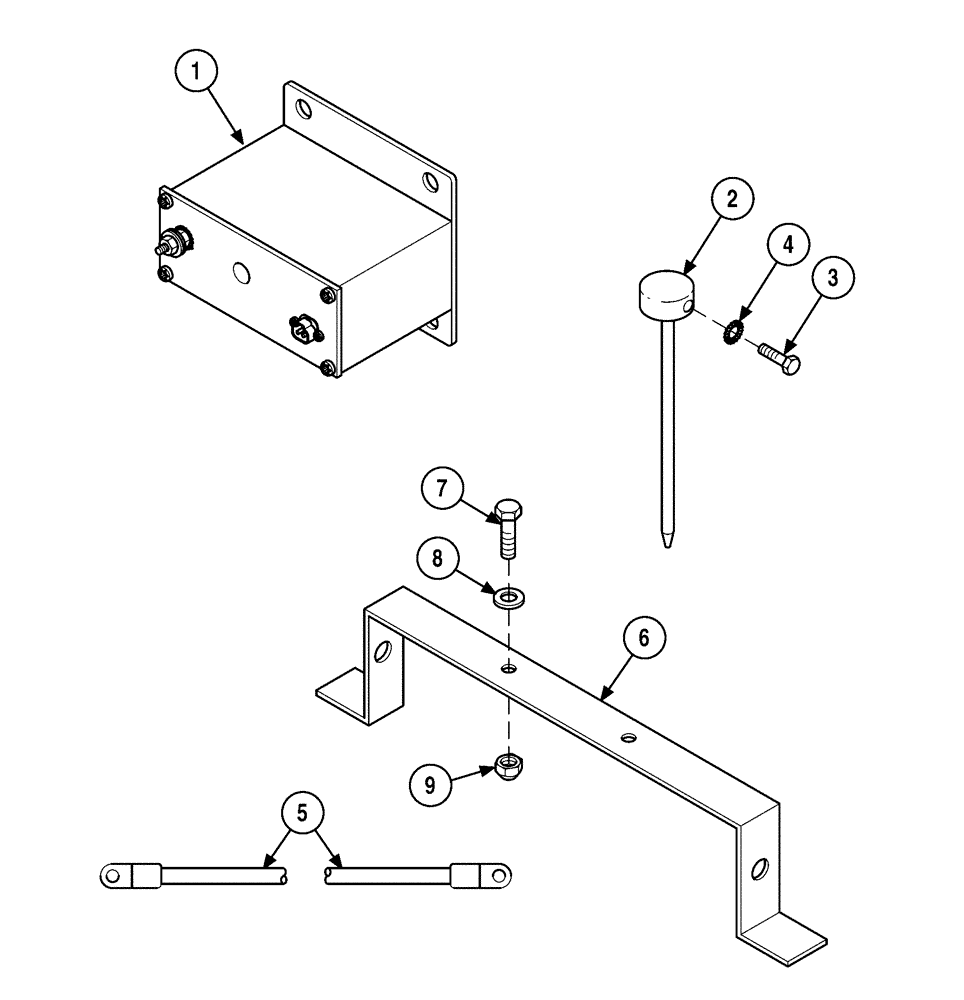

Запчасти Case 6010 (04-06) - ALERT, STRIKE (55) - ELECTRICAL SYSTEMS

1

348782A3

BOARD, PRINTED CIRCU

IT , Strike Alert Monitor, Replaces: 348782A1, 348782A2

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64, Hardened

4шт.

131-646

SPRING NUT,Tinn, U, 1/4"-20

hardened

4шт.

2

358870A1

ROD

Grounding

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

358871A1

CABLE

3048 mm (120" ), Grounding

1шт.

6

358873A1

BRACKET

Cable Mounting

1шт.

7

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

8

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64, Hardened

2шт.

9

231-1444

NUT,1/4"-20, GB

2шт.
