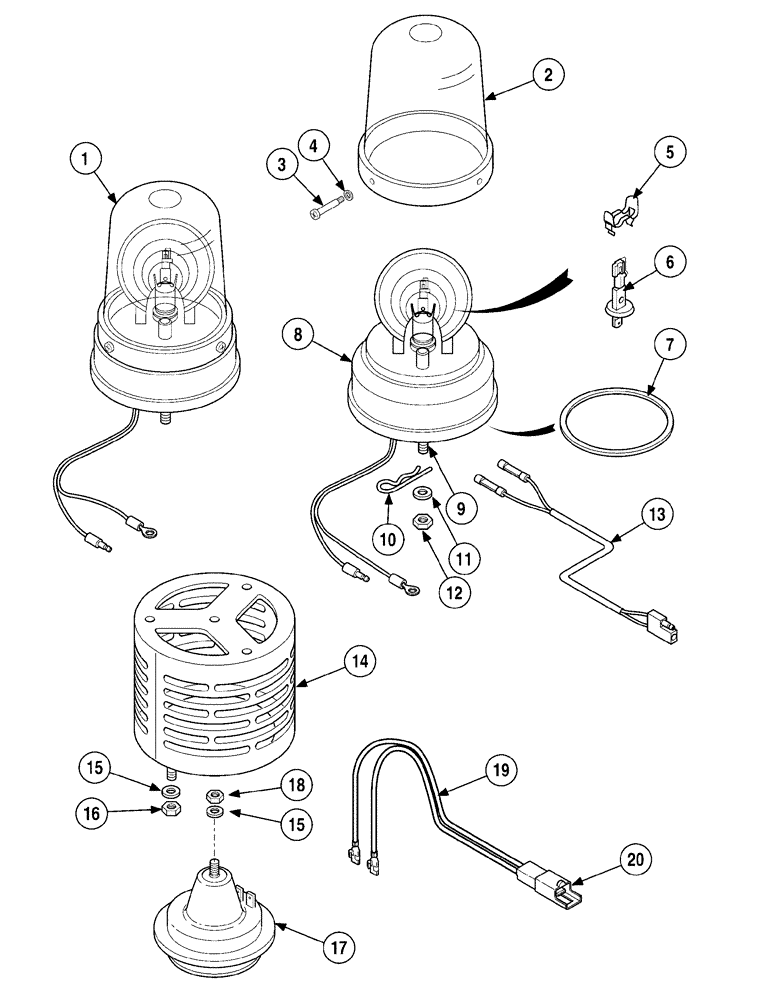

Запчасти Case 6010 (04-05) - HORN - BEACON, ROTATING (55) - ELECTRICAL SYSTEMS

1

108366A1

BEACON

Rotating, Includes: 2 - 10

1шт.

2

A187542

LENS

Amber

1шт.

3

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

3шт.

4

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

5

101531A1

CLIP

1шт.

6

3125705R1

BULB

12V, 55W

1шт.

7

A187575

O-RING

Drive Motor

1шт.

8

NSS

NOT SOLD SEPARAT

Base, With Drive Motor

1шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

10

136-54

PIN

1/4 x 11/16

3шт.

11

892-11006

LOCK WASHER,M6

3шт.

12

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

3шт.

13

293828A1

HARNESS

1шт.

14

386798A1

MOUNTING PARTS

If Used

1шт.

15

496-21028

WASHER,.281" x 5/8" x .075", HDN

9/32 x 5/8 x 5/64, Hardened

4шт.

16

231-1444

NUT,1/4"-20, GB

3шт.

17

399363A1

HORN

If Used, Includes: 18

1шт.

18

NSS

NOT SOLD SEPARAT

Nut

1шт.

19

396721A1

HARNESS

If Used, Includes: 20

1шт.

20

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.
